P/N: DS-7632NXI-K2

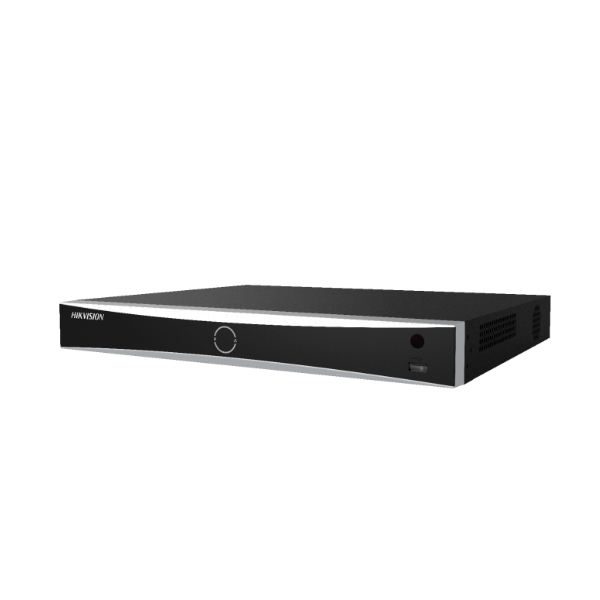

Рекордер, HikVision 32-ch 1U K Series AcuSense 4K NVR, Up to 32-ch IP camera inputs, Up to 12 MP (12x1080p/2x12MP), H.265+, 2 SATA HDD up to 10TB each, 2 USB, Video input: HDMI 4K, VGA 1080p, 12Vdc, 3.3 A

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Тип	IP Recorder
Брой канали	Up to 32-ch IP camera inputs
HDMI	1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
VGA	1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Видео изходен режим	HDMI/VGA independent output
Капацитет	Incoming Bandwidth: 256 Mbps; Outgoing Bandwidth: 160 Mbps
Аудио	1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input); Two-Way Audio 1-ch, RCA (Linear, 1 KO)
Видео компресия	H.265/H.265+/H.264+/H.264
Аудио компресия	G.711ulaw/G.711alaw/G.722/G.726/AAC
Резолюция на запис	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Дистанционна връзка	Up to 128 Remote Connections
Мрежови протоколи	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Мрежов интерфейс	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; AUDIO IN and AUDIO OUT
Спомагателен интерфейс	2x SATA interface (Capacity: Up to 10 TB capacity for each HDD); Front panel: 1 Ч USB 2.0; Rear panel: 1 Ч USB 2.0
Захранване	12 VDC, 3.3 A; Consumption: < = 15 W (without HDD)
Power Over Ethernet (PoE)	-
Размери (Ш, Д, В), mm	385 x 315 x 52 mm
Тегло, g	<= 1kg
Гаранция	24 месеца
