P/N: 98012021

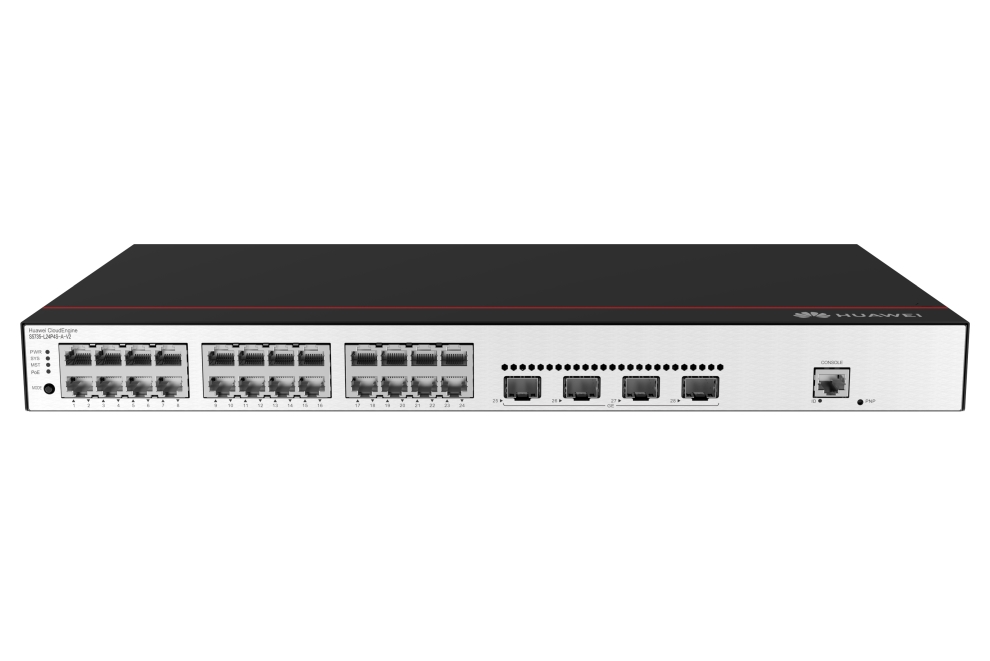

Комутатор, Huawei S5735-L24P4S-A-V2 (2410/100/1000BASE-T ports, 4GE SFP ports, PoE+, AC power)

HUAWEI Enterprise Networking >> Huawei S5735-L24P4S-A-V2 (24*10/100/1000BASE-T ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	PoE+
Uplink портове	4xSFP
Свободни (10GB) слотове	No
Управление	Cloud management based on Netconf/Yang; Virtual Cable Test (VCT); Remote configuration and maintenance using Telnet; SNMPv1/v2/v3; RMON; eSight and web-based NMS; HTTPS; LLDP/LLDP-MED; System logs and multi-level alarms; 802.3az EEE; IFIT; Port mirroring
Stackable	Intelligent stack (iStack)
Fans	yes
Захранване	Built-in AC power; Rated voltage range: 100 V AC to 240 V AC, 50/60 Hz; Maximum power consumption: 47.1W (without PD), 491.66W (with PD, PD power consumption of 400W)
Routing	Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps
Пропускателна способност, Mpps	42 Mpps
MAC адреси	32000 MAC address table size
VLAN (брой, стандарти)	4094 VLANs; Voice VLAN; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces; VLAN Stacking
QoS	Rate limiting on packets sent and received by an interface; Interface-based traffic policing and two-rate and three-color CAR; 8 queues on each interface; DRR, SP, and DRR+SP queue scheduling algorithms; Re-marking of the 802.1p priority and DSCP priority
L2 мрежови стандарти	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
L3 мрежови стандарти	Static route, RIP, RIPng, OSPF, OSPFv3, VRRP, VRRP6, Routing Policy, Policy-Based Routing
IPv6 functionality	Up to 1024 ND entries (MAX); Path MTU (PMTU); IPv6 ping, IPv6 tracert, and IPv6 Telnet
Сигурност	DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; IEEE 802.1x authentication and limit on the number of users on an interface; SSH V2.0; Hypertext Transfer Protocol Secure (HTTPS); CPU defense
Размери (Ш, Д, В), mm	442 x 220 x 44 mm
Опция за монтаж	Rackmount
Гаранция	12 месеца
