P/N: 98012021

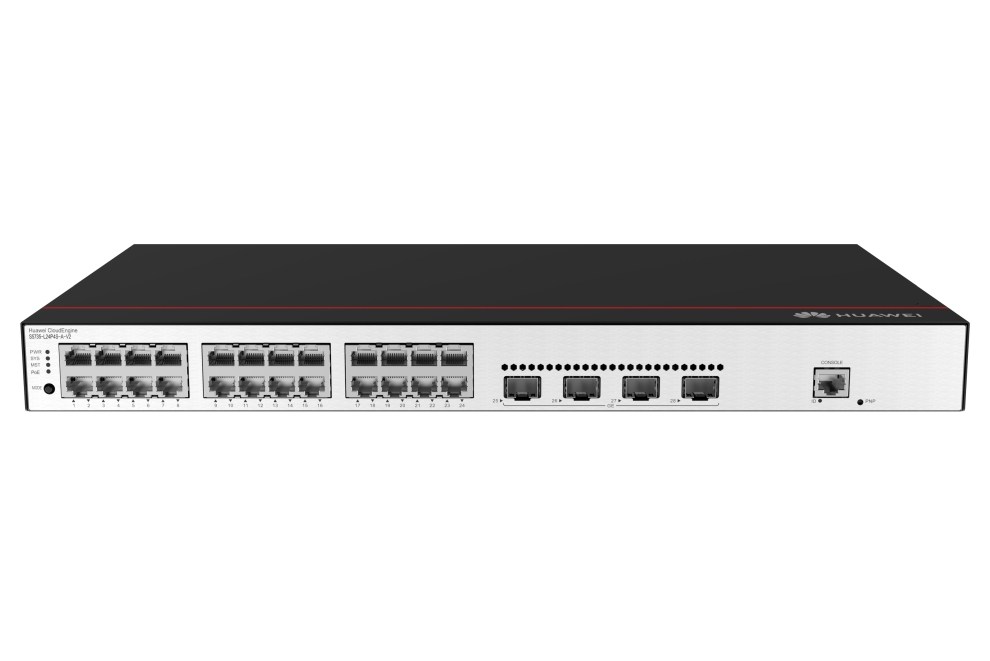

Commutator/ Switch, Huawei S5735-L24P4S-A-V2 (2410/100/1000BASE-T ports, 4GE SFP ports, PoE+, AC power)

HUAWEI Enterprise Networking >> Huawei S5735-L24P4S-A-V2 (24*10/100/1000BASE-T ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x10/100/1000Base-T
Power Over Ethernet (PoE)	PoE+
Uplink ports	4xSFP
Open (10GB) slots	No
Management	Cloud management based on Netconf/Yang; Virtual Cable Test (VCT); Remote configuration and maintenance using Telnet; SNMPv1/v2/v3; RMON; eSight and web-based NMS; HTTPS; LLDP/LLDP-MED; System logs and multi-level alarms; 802.3az EEE; IFIT; Port mirroring
Stackable	Intelligent stack (iStack)
Fans	yes
Power supply	Built-in AC power; Rated voltage range: 100 V AC to 240 V AC, 50/60 Hz; Maximum power consumption: 47.1W (without PD), 491.66W (with PD, PD power consumption of 400W)
Routing	Layer 3 Advanced
Routing/Switching capacity, Gbps	56 Gbps
Throughput, Mpps	42 Mpps
MAC addresses	32000 MAC address table size
VLAN (number, standards)	4094 VLANs; Voice VLAN; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces; VLAN Stacking
QoS	Rate limiting on packets sent and received by an interface; Interface-based traffic policing and two-rate and three-color CAR; 8 queues on each interface; DRR, SP, and DRR+SP queue scheduling algorithms; Re-marking of the 802.1p priority and DSCP priority
L2 network standards	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
L3 network standards	Static route, RIP, RIPng, OSPF, OSPFv3, VRRP, VRRP6, Routing Policy, Policy-Based Routing
IPv6 functionality	Up to 1024 ND entries (MAX); Path MTU (PMTU); IPv6 ping, IPv6 tracert, and IPv6 Telnet
Security	DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; IEEE 802.1x authentication and limit on the number of users on an interface; SSH V2.0; Hypertext Transfer Protocol Secure (HTTPS); CPU defense
Dimensions (W, D, H), mm	442 x 220 x 44 mm
Мounting option	Rackmount
Warranty	12 months
