P/N: X870E.A.MASTER.X

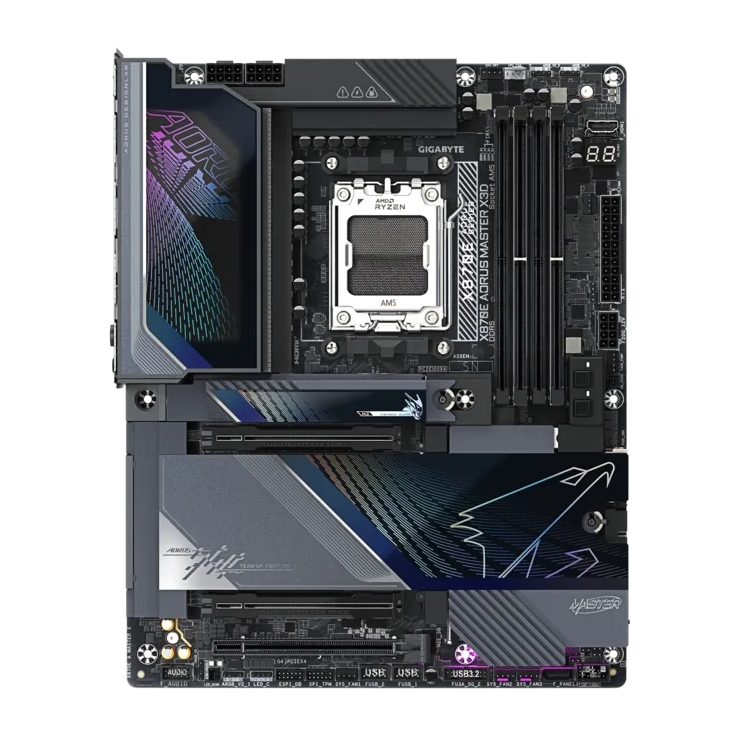

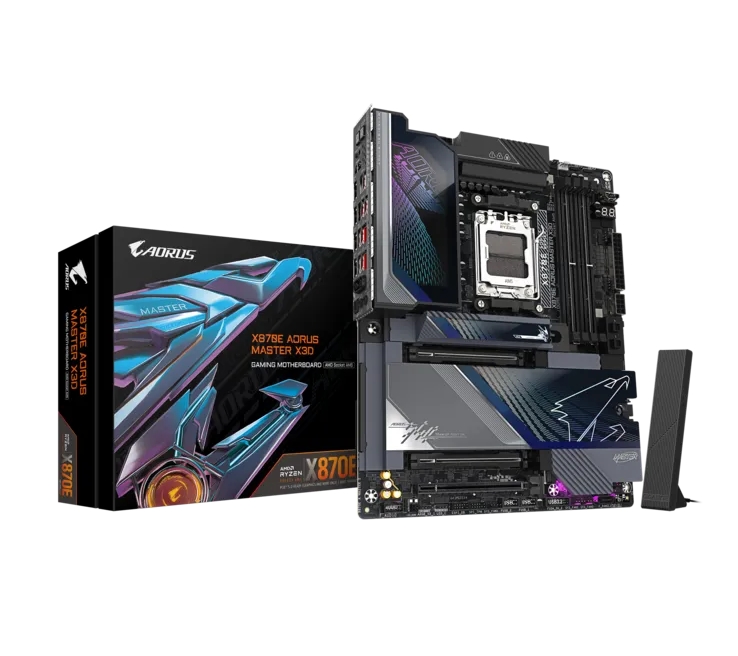

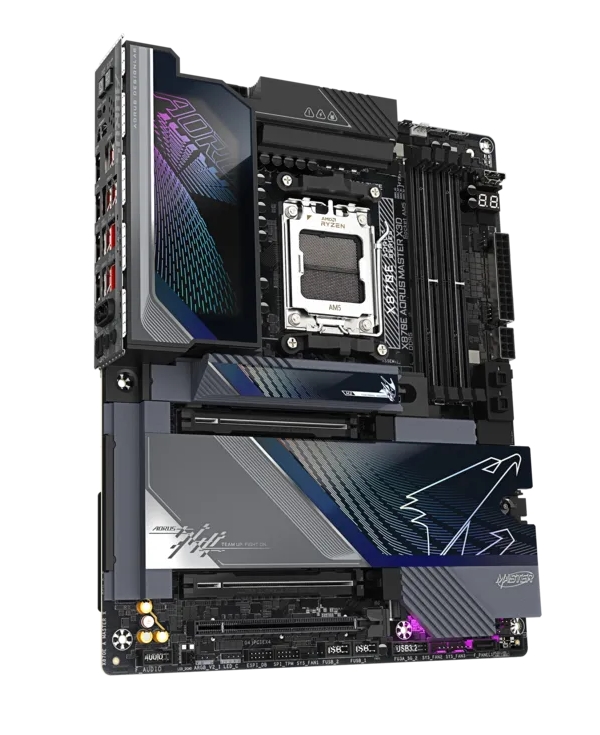

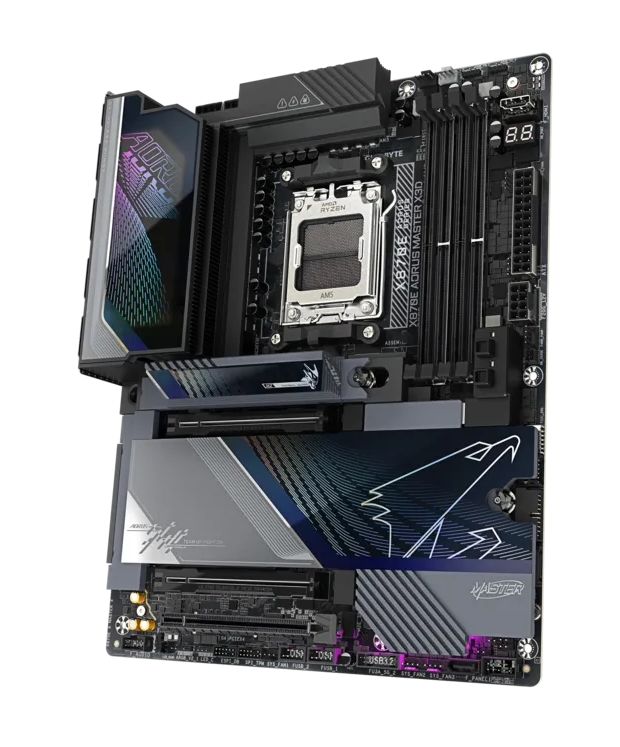

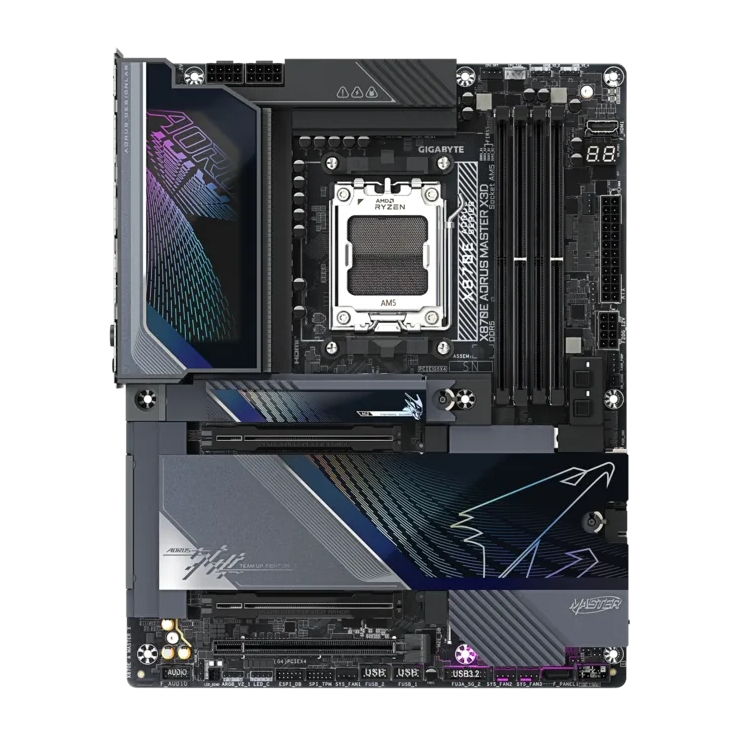

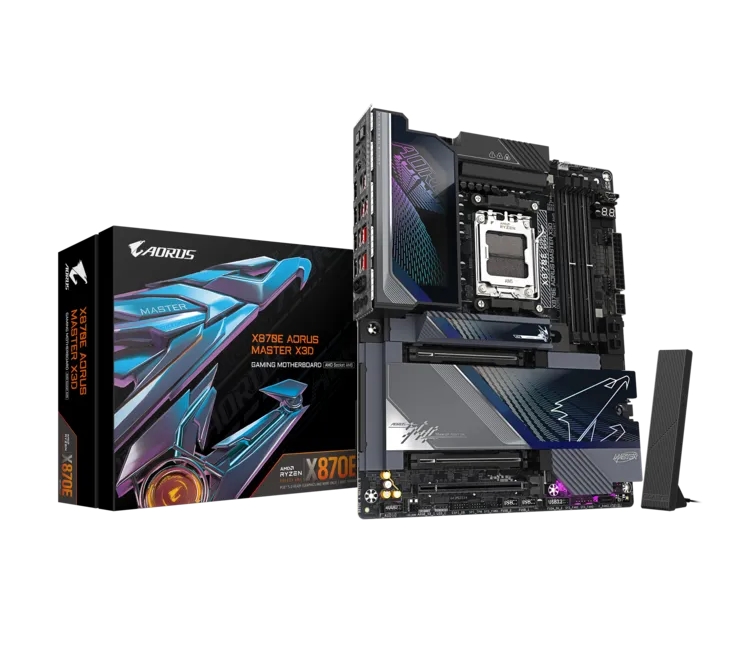

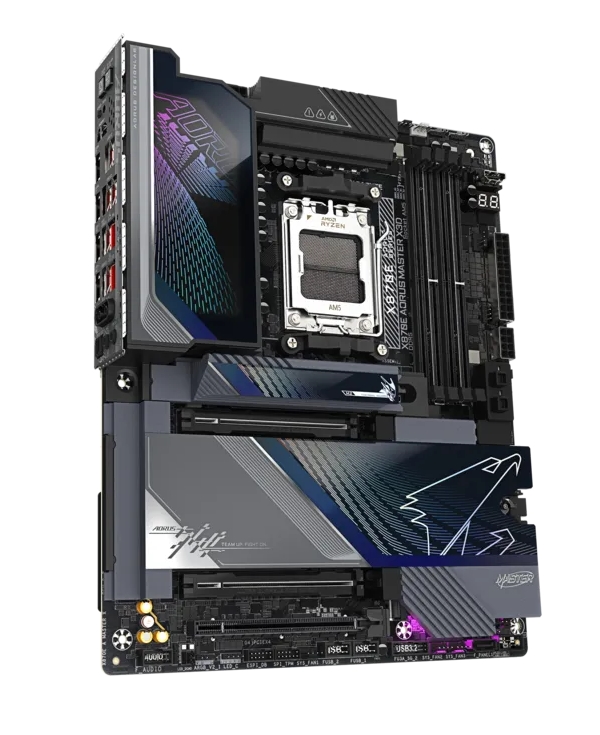

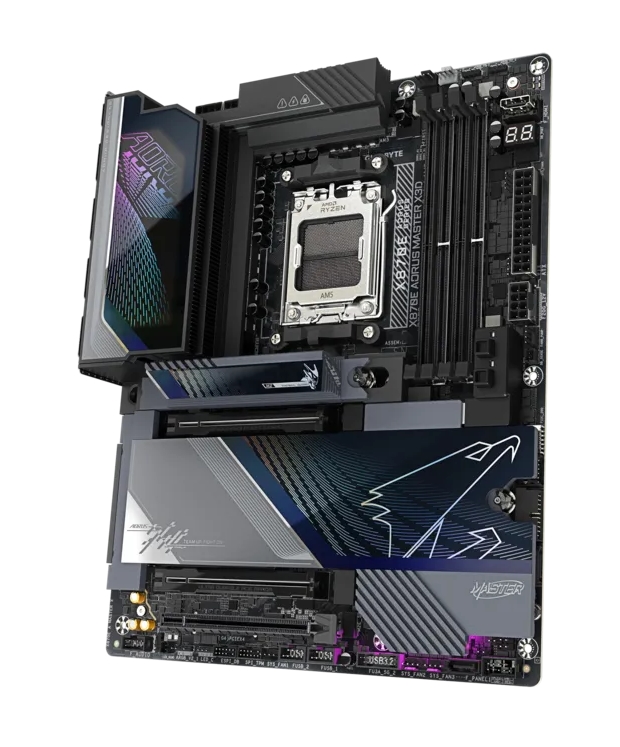

Дънна платка, Gigabyte X870E Aorus Master X3D

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Серия	Aorus
Процесор	AMD AM5 Ryzen
Чипсет	AMD X870E
BIOS	512 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Памет	DDR5
Брой слотове	4 DIMM Slots, Max. capacity of system memory: 256GB
Аудио	Realtek ALC1220 CODEC, ESS ES9118 DAC chip, Support for DTS:X Ultra, High Definition Audio, 2/4/5.1-channel
Безжична мрежа	MediaTek Wi-Fi 7 MT7927, RZ738, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Конектори	24-pin ATX main power connector, 2 8-pin ATX 12V power connectors, PCIe power connector
Слотове	PCI Express x16 slot (PCIEX16), integrated in the CPU: PCIe 5.0 x16 mode, PCIe 4.0 x8 mode, PCIe 4.0 x4 mode; Chipset: PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 слот	5 M.2 Socket 3 connectors

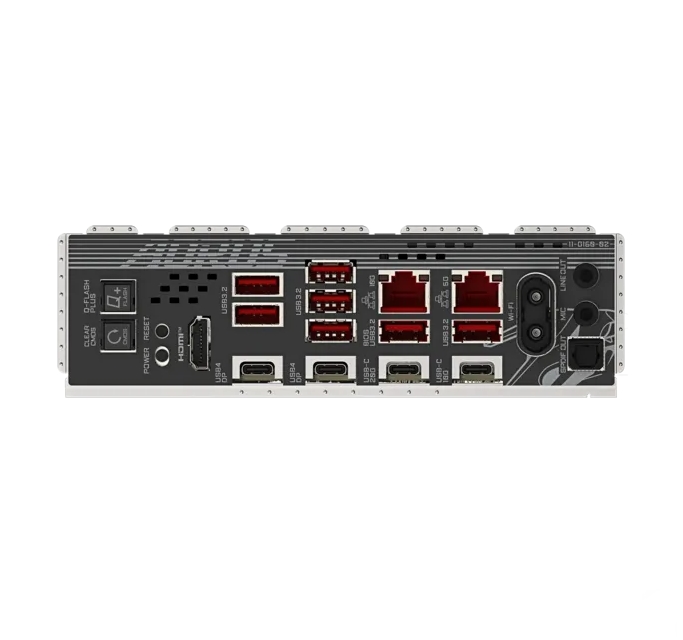

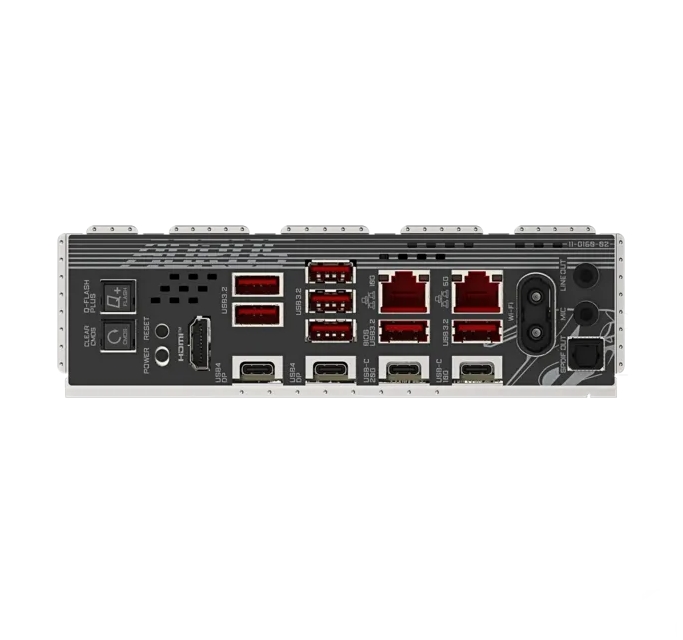

Интерфейс	2 USB4 USB Type-C ports, USB Type-C port, with USB 3.2 Gen 2 support, 7 USB 3.2 Gen 2 Type-A ports, USB Type-C port, with USB 3.2 Gen 2x2 support, HDMI, 2 RJ-45 ports, 2 antenna connectors (2T2R), 2 audio jacks, Q-Flash Plus button, Clear CMOS button
Софтуер	Norton Internet Security (OEM version)
Операционна система	Support for Windows 11 64-bit
Форм-фактор	ATX
Специални функции	Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Q-Flash Plus, Smart Backup
Гаранция	36 месеца
