P/N: DS-3E1309P-EI

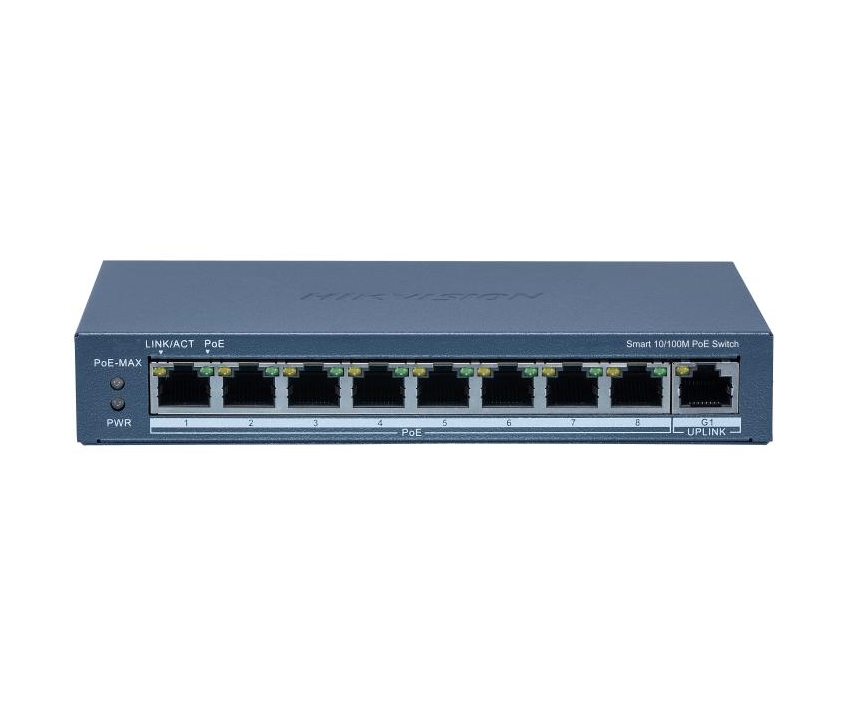

Комутатор, HikVision 9 Port Fast Ethernet Smart POE Switch, 8x 10/100M PoE ports, 1x Gigabit RJ45 port, Power Budget 110 W, Up to 300 m Long Range PoE Transmission

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	9
Основни портове, тип	8x10/100Base-TX
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 8; Max. Port Power: 30 W; PoE Power Budget: 110 W
Uplink портове	1x10/100/1000Base-T
Свободни (10GB) слотове	No
Управление	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client
Stackable	No
Fans	Fanless design
Захранване	54 V DC, 2.22 A; Max. Power Consumption: 120 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	Whole-Device Performance: 5.6 Gbps, Port Performance: 3.6 Gbps
Пропускателна способност, Mpps	Whole-Device Performance: 4.17 Mpps, Port Performance: 2.68 Mpps
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN
QoS	-
L2 мрежови стандарти	IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	6 kV Surge Protection, STP/RSTP loop prevention, cable detection
Размери (Ш, Д, В), mm	170.0 x 27.6 93.1 mm
Опция за монтаж	Desktop/Wall mount
Гаранция	24 месеца
