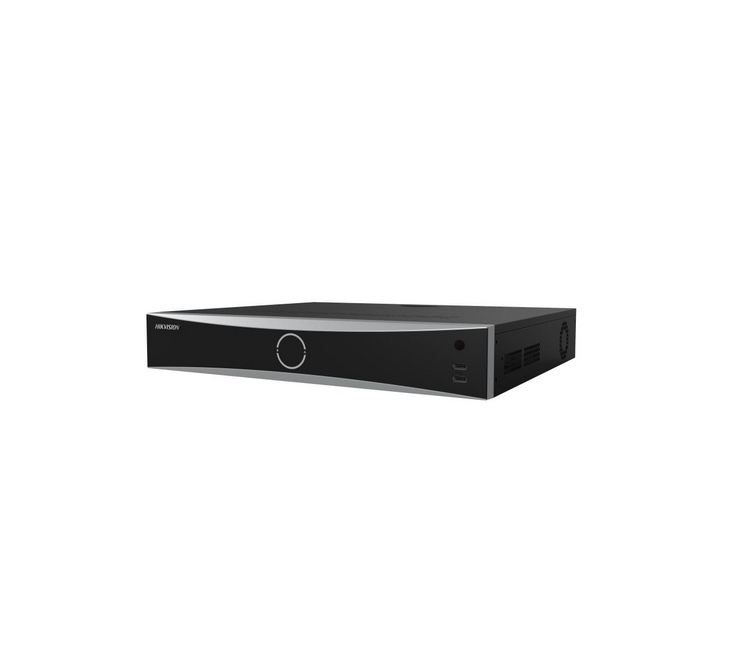

P/N: DS-7732NXI-K4/16P

Рекордер, HikVision 32-ch 1.5U 16 POE K Series AcuSense 4K NVR, up to 12 MP, H.265+, 256/160 Mbps, 4x SATA HDD up to 10TB each, 3 USB, Audio Output: 1-ch, RCA (Linear, 1 kOhm), Video Output: HDMI 4K, VGA 1080p

HikVision 32-ch 1.5U 16 POE K Series AcuSense 4K NVR, up to 12 MP, H.265+, 256/160 Mbps, 4x SATA HDD up to 10TB each, 3 USB, Audio Output: 1-ch, RCA (Linear, 1 kOhm), Video Output: HDMI 4K, VGA 1080p

HikVision HiWatch Series >> HikVision 32-ch 1.5U 16 POE K Series AcuSense 4K NVR Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Тип	IP Recorder
Брой канали	32 (IP Video Input)
HDMI	1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
VGA	1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Видео изходен режим	HDMI/VGA independent output
Капацитет	Incoming: 256 Mbps, Outgoing: 160 Mbps
Аудио	1-ch, RCA (2.0 Vp-p, 1 kOhm, using the audio input); Audio Output: 1-ch, RCA (Linear, 1 kOhm)
Видео компресия	H.265/H.265+/H.264+/H.264
Аудио компресия	G.711ulaw/G.711alaw/G.722/G.726/AAC
Резолюция на запис	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Дистанционна връзка	128
Мрежови протоколи	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Мрежов интерфейс	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Спомагателен интерфейс	4 SATA interfaces (Capacity: Up to 10 TB capacity for each HDD); Front panel: 2x USB 2.0; Rear panel: 1x USB 3.0; Serial Interface: 2 RS-485 (half-duplex), 1 RS-232; Alarm In/Out: 16/4 (16/9 is optional)
Захранване	100 to 240 VAC, 50 to 60 Hz; Consumption: <= 20 W (without HDD, and PoE off)
Power Over Ethernet (PoE)	16 PoE interface, Power: <= 200 W, IEEE 802.3af/at standard
Размери (Ш, Д, В), mm	445 x 400 x 75 mm
Тегло, g	<= 5 kg
Гаранция	24 месеца
