P/N: C1200-8P-E-2G

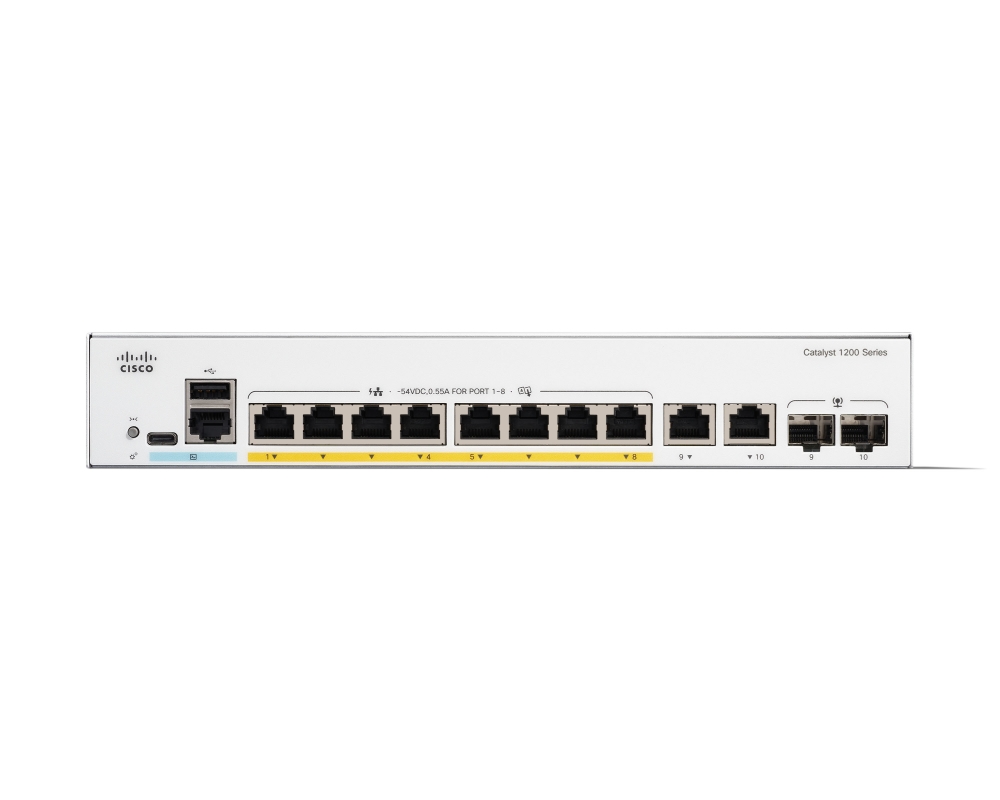

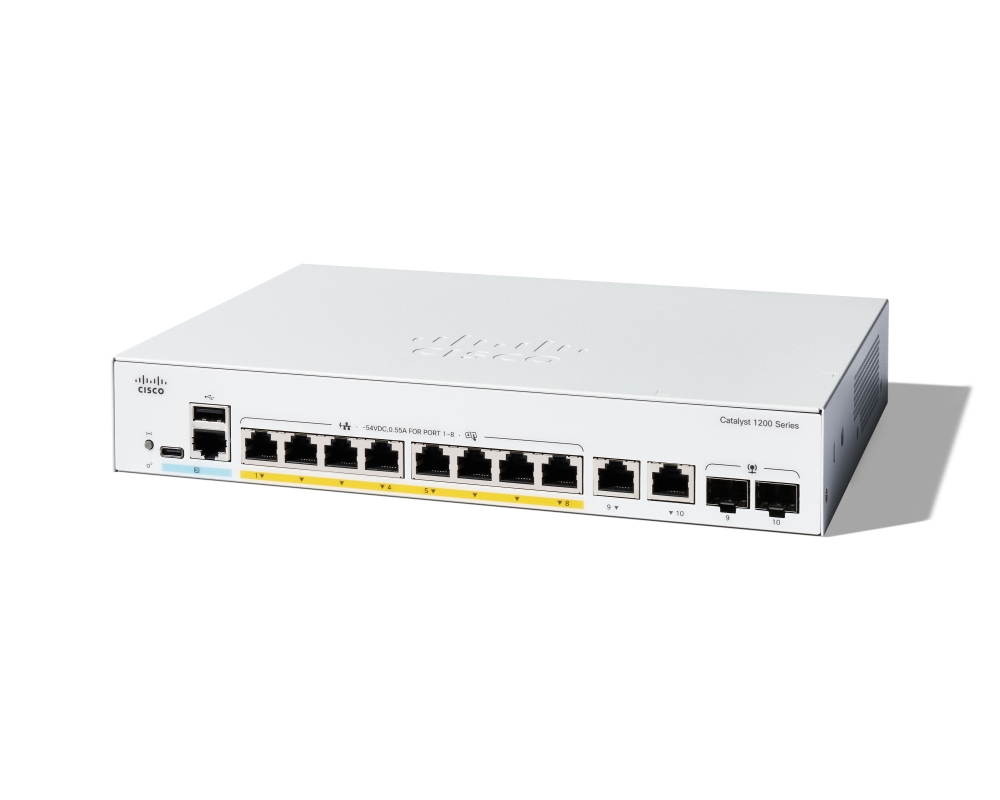

Комутатор, Cisco Catalyst 1200 8-port GE, PoE, Ext PS, 2x1G Combo

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1200 8-port GE Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	10
Основни портове, тип	8x 10/100/1000Base-T PoE+ with 67W power budget
Power Over Ethernet (PoE)	PoE+ (67W); 8 ports
Uplink портове	2x SFP/ RJ-45 combo
Свободни (10GB) слотове	-
Управление	Network PnP, Web user interface, Cisco Business mobile app, Cisco Business Dashboard, SNMP, MIBs, RMON, DHCP, CLI and etc.
Stackable	-
Fans	Fanless
Захранване	100 to 240V 50 to 60 Hz, external
Routing	Layer 3 static routing
Памет (Flash, RAM)	512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
Капацитет за маршрутизиране/превключване, Gbps	20 Gbps
Пропускателна способност, Mpps	14.88 Mpps
MAC адреси	8000 addresses
VLAN (брой, стандарти)	Support for up to 255 active VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, Management VLAN, Guest VLAN, Auto Surveillance VLAN (ASV), Voice VLAN
QoS	8 hardware queues; Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality	IPv6 host mode, IPv6 over Ethernet, Dual IPv6/IPv4 stack, IPv6 Neighbor Discovery (ND), IPv6 stateless address auto-configuration, Path MTU discovery, DAD, ICMP v6, IPv6 over IPv4 network with ISATAP
Сигурност	SSL, SSH, IEEE 802.1X (authenticator role): RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions; STP; SCT; SSD, Trustworthy systems, Port security, Storm control, DoS prevention, ACLs
Размери (Ш, Д, В), mm	268 x 185 x 44 mm
Опция за монтаж	Rackmount
Гаранция	60 месеца
