P/N: SL3000

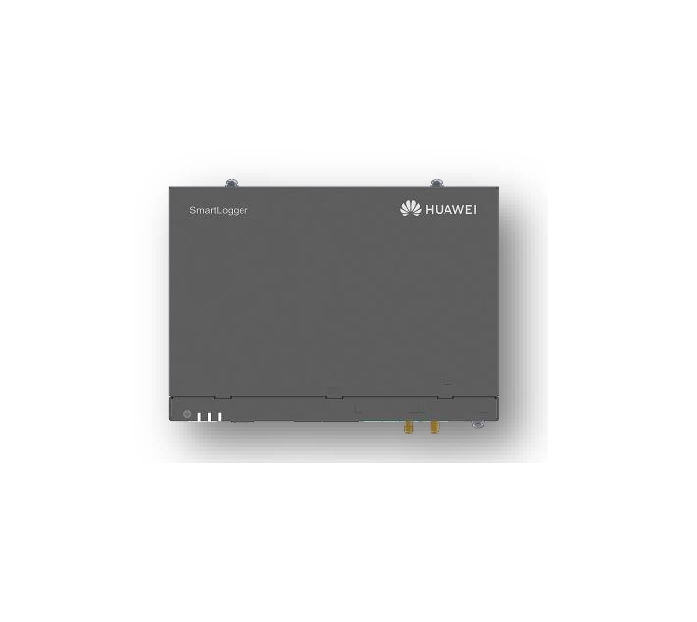

Аксесоар, Huawei SmartLogger3000B

24
HUAWEI инвертори за фотоволтаични системи >> Huawei SmartLogger3000B Препоръчителен сервиз
Препоръчителен сервиз
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Характеристики

Х-ка 1 Max. Number of Manageable Devices: 200, Max. Number of Manageable Inverters: 150
Х-ка 2 Communication Interface: 1x10/100/1000 Mbps WAN, 1x10/100/1000 Mbps LAN, 2x100/1000 Mbps SFP, 1xMBUS (115.2 kbps, Compatible with PLC), RS485 COM x3, 1200/2400/4800/9600/19200/115200 bps
Х-ка 3 Digital/Analog Input/Output: DI x4, DO x2, AI x4; Active DO: 12V, 100mA (connection with relay, sensor); Ethernet: Modbus-TCP, IEC 60870-5-104; RS485: Modbus-RTU, IEC 60870-5-103 (standard), DL / T645
Х-ка 4 Interaction: LED Indicator x 3; Embedded Web; USB 2.0 x1; APP: Communication by WLAN for Commissioning
Х-ка 5 Operating Temperature Range: -40°C ~ 60°C, Storage Temperature: -40°C ~ 70°C, Relative Humidity (Non-condensing): 5% ~ 95%, Max. Operating Altitude: 4000 m
Х-ка 6 AC Power Supply: 100 V~240 V, 50 Hz / 60 Hz; DC Power Supply: 24 V, 0.8 A; Power Consumption: Typical 9 W, Max. 15 W
Х-ка 7 Protection Degree: IP20, Dimensions (W x H x D): 225 x 160 x 44 mm, Weight: 2 kg
Х-ка 8 Installation Options: Wall Mounting, DIN Rail Mounting, Tabletop Mounting, Integrated Inside SmartACU2000D
Гаранция 24 месеца

EAN: -
