P/N: 98012053

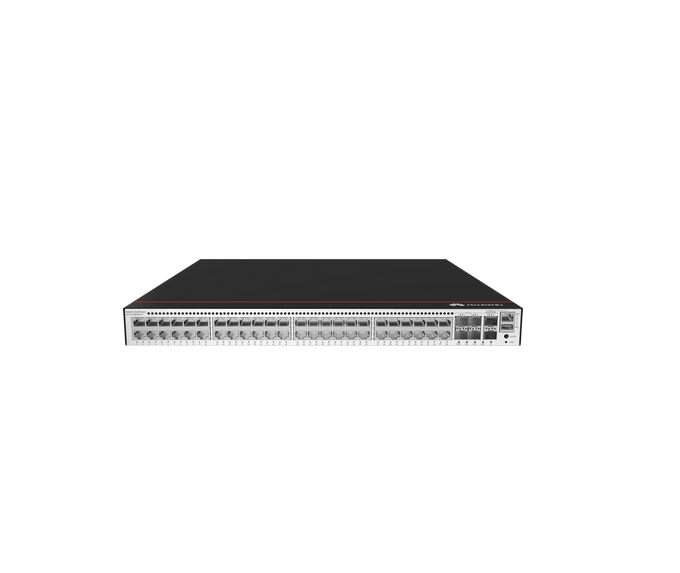

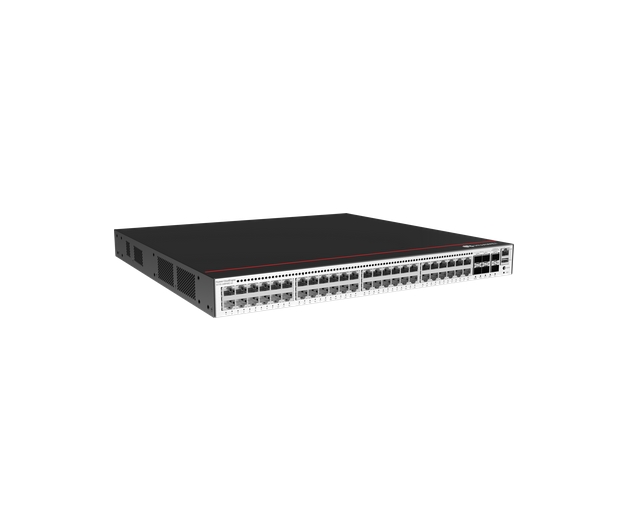

Комутатор, Huawei S5735-S48P4XE-V2 (4810/100/1000BASE-T ports, 410GE SFP+ ports, 2*12GE stack ports, PoE+, without power module)

HUAWEI Enterprise Networking >> Huawei S5735-S48P4XE-V2 (48*10/100/1000BASE-T ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	52
Основни портове, тип	48x10/100/1000Base-T
Power Over Ethernet (PoE)	PoE+
Uplink портове	4x10GE SFP
Свободни (10GB) слотове	No
Управление	Cloud management based on Netconf/Yang; Virtual cable test; SNMP v1/v2c/v3; RMON; Web-based NMS; System logs and alarms of different levels; 802.3az EEE; IFIT; Port mirroring
Stackable	Intelligent stack (iStack), 2x12GE stack ports
Fans	yes
Захранване	3 power supplies, N+1 power supply backup; Maximum power consumption: 84W (without PD), 1950W (with PD, PD power consumption of 1680W)
Routing	Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps	224 Gbps
Пропускателна способност, Mpps	168 Mpps
MAC адреси	32000 MAC address table size
VLAN (брой, стандарти)	4094 VLANs; Voice VLAN; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; Basic QinQ & Selective QinQ
QoS	Rate limiting on packets sent and received by a port; Packet redirection; Port-based traffic policing and two-rate three-color CAR; 8 queues on each port; DRR, SP and DRR+SP queue scheduling algorithms; Re-marking of the 802.1p priority and DSCP priority
L2 мрежови стандарти	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
L3 мрежови стандарти	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, VRRP, VRRP6, Routing Policy, Policy-Based Routing
IPv6 functionality	Up to 3072 ND entries; Path MTU (PMTU); IPv6 ping, IPv6 tracert, and IPv6 Telnet
Сигурност	DoS attack defense, ARP attack defense, and ICMP attack defense; Blackhole MAC address entries; Port isolation, port security, and sticky MAC; IEEE 802.1x authentication and limit on the number of users on a port; SSH v2.0; HTTPS; CPU defense
Размери (Ш, Д, В), mm	442 x 420 x 44 mm
Опция за монтаж	Rackmount
Гаранция	12 месеца
