P/N: R8N85A

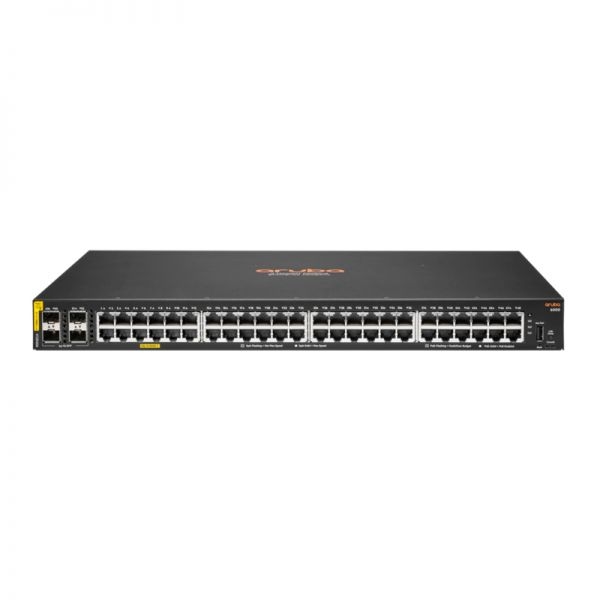

Комутатор, Aruba 6000 48G CL4 4SFP Swch

24
Aruba 6000 48G CL4 4SFP Swch
HP мрежови продукти >> Aruba 6000 48G CL4 4SFP Swch Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Fixed Port
Общ брой портове 52
Основни портове, тип 48x 10/100/1000BASE-T Ports
Power Over Ethernet (PoE) 370W Class 4 PoE/PoE+ (IEEE 802.3af, 802.3at)
Uplink портове 4x 1G/10G SFP ports
Свободни (10GB) слотове -
Управление Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
Stackable -
Fans Fixed fans
Захранване Fixed power supply (100-127 VAC / 200-240 VAC, 4.9 A / 2.4 A); Power Consumption (230 VAC): Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Routing Static (Layer 3): Static IP routing provides manually configured routes, Dual stack static IPv4 and IPv6 routing provides simple manually configured IPv4 and IPv6 routing, Dual IP stack maintains separate stacks for IPv4 and IPv6
Памет (Flash, RAM) 4 GB DDR3, 16 GB eMMC; Packet Buffer: 12.38MB (4.5MB Ingress/7.875MB Egress)
Капацитет за маршрутизиране/превключване, Gbps 104 Gbps
Пропускателна способност, Mpps 77.3 Mpps
MAC адреси 8 192
VLAN (брой, стандарти) VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
QoS Strict priority (SP) queuing, Traffic prioritization (IEEE 802.1p) for real-time classification, CoS sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
L2 мрежови стандарти RFC 1591 DNS (client), SSHv1/SSHv2 Secure Shell, IEEE 802.1D MAC Bridges, IEEE 802.1p Priority, IEEE 802.1Q VLANs, IEEE 802.1s Multiple Spanning Trees, IEEE 802.1w Rapid Reconfiguration of Spanning Tree, IEEE 802.3 Type 10BASE-T, IEEE 802.3ab
IPv6 functionality IPv6 host enables switches to be managed in an IPv6 network; Dual stack (IPv4 and IPv6) transitions from IPv4 to IPv6; MLD snooping forwards IPv6 multicast traffic to the appropriate interface; IPV6 static routing and etc.
Сигурност ACL, RADIUS, TACACS+, 802.1X, Web, and MAC authentications, CLI, GUI, or MIB through SSHv2, SSL, and/or SNMPv3, STP BPDU port protection, SSL and etc.
Размери (Ш, Д, В), mm 442 x 304.8 x 43.9 mm
Опция за монтаж Rackmount (1U)
Други Includes Mounting Brackets; 1x USB-C Console Port, 1x USB Type-A Host port
Гаранция 24 месеца

EAN: -
