P/N: C9300L-48T-4G-E

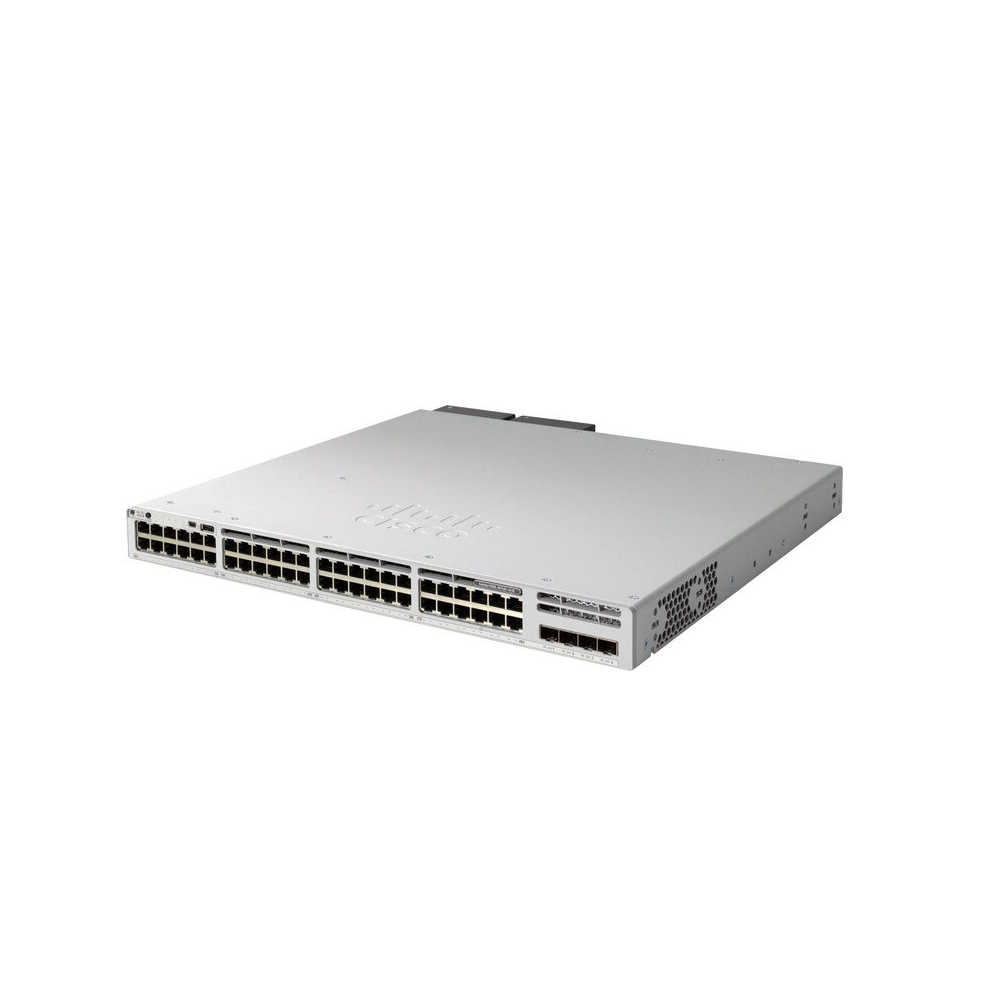

Комутатор, Cisco Catalyst 9300L 48p data, Network Essentials ,4x1G Uplink

Задължителен е минимум 3-годишен лиценз DNA Essentials!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9300L 48p data Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	52
Основни портове, тип	48x 10/100/1000Base-T, copper
Power Over Ethernet (PoE)	No
Uplink портове	4x1G SFP
Свободни (10GB) слотове	No
Управление	WebUI is an embedded GUI-based device-management; RMON I and II standards, SNMPv1, v2c, and v3
Stackable	Stackwise-320 (C9300L-STACK-KIT)
Fans	3 field-replaceable fans and support (N+1) redundancy
Захранване	350W AC
Routing	Advanced
Памет (Flash, RAM)	8 GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers
Капацитет за маршрутизиране/превключване, Gbps	104 Gbps; Switching capacity with stacking: 424 Gbps
Пропускателна способност, Mpps	77.38 Mpps; Forwarding rate with stacking: 315.48 Mpps
MAC адреси	32 000
VLAN (брой, стандарти)	VLAN IDs: 4094
QoS	QoS scale entries: 5120, Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p CoS and (DSCP field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти	IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Re,v IEEE 802.3ad, IEEE 802.3a,e IEEE 802.3af, IEEE 802.3at
IPv6 functionality	Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4- to-IPv6 migration; IPv6 routing entries: 16 000; IPv6 routing (using OSPFv3 and BGPv6), ? IPv6 addressing
Сигурност	Encrypted Traffic Analytics (ETA), AES-256 MACsec/IPSec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Umbrella DNS Integration
Размери (Ш, Д, В), mm	445 x 409 x 44
Опция за монтаж	Rackmount
Други	Задължителен е минимум 3-годишен лиценз DNA Essentials.
Гаранция	99 месеца
