P/N: IE-3200-8P2S-E

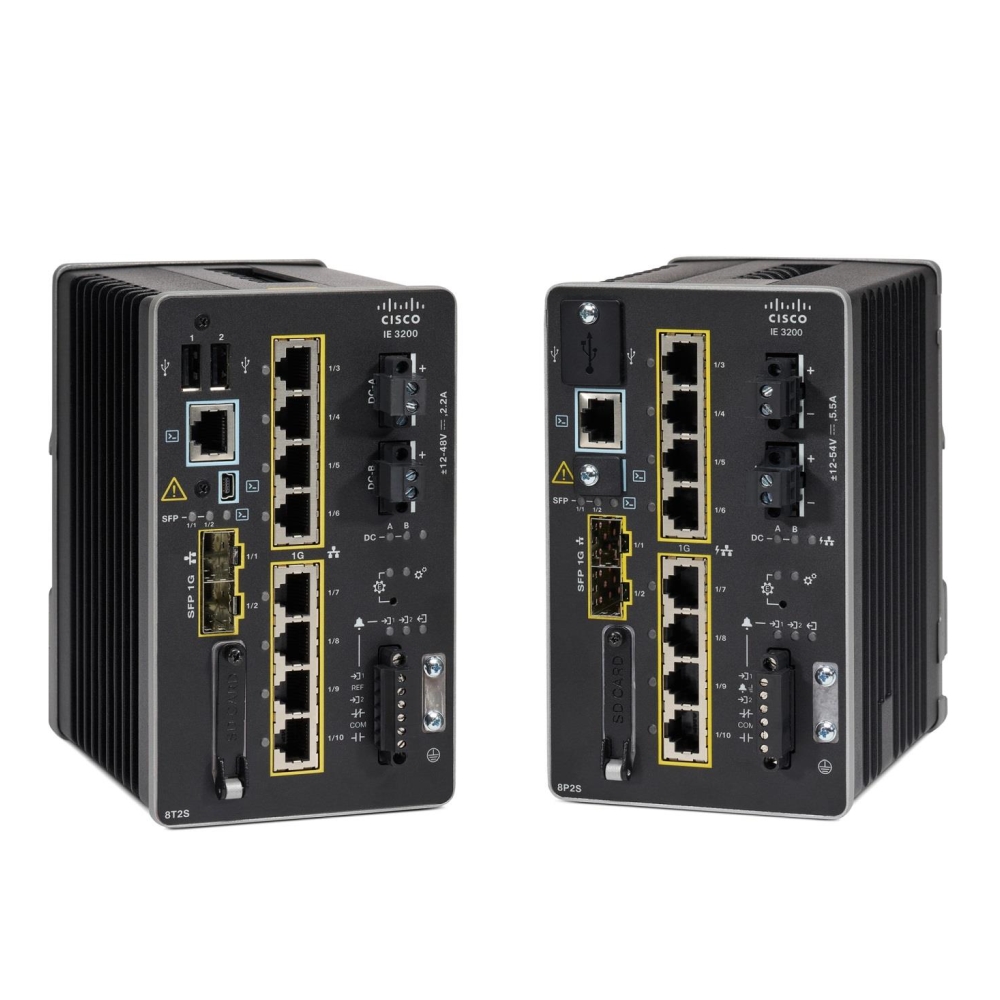

Комутатор, Cisco Catalyst IE3200 with 8 GE PoE Copper & 2 GE SFP, Fixed System, Network Essentials

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst IE3200 with 8 GE PoE Copper & 2 GE SFP Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	10
Основни портове, тип	8x GE copper ports (10/100/1000 RJ45 Copper ports)
Power Over Ethernet (PoE)	240W budget, IEEE 802.3af, IEEE 802.3at
Uplink портове	2x GE SFP ports (100/1000 SFP ports)
Свободни (10GB) слотове	-
Управление	Web UI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Stackable	-
Fans	Convection cooled
Захранване	Redundant DC input voltage: 9.6 to 60VDC, 48VDC is required for PoE and 54VDC is required for PoE+, Maximum Input current: 5.5A, Power consumption: 32W
Routing	Layer 3 routing: Inter-VLAN routing, static routing
Памет (Flash, RAM)	DRAM - 2 GB, Flash (User Accessible) - 1.5 GB, Optional: SD card capacity - 4 GB
Капацитет за маршрутизиране/превключване, Gbps	Line rate for all ports and all packet sizes
MAC адреси	8K
VLAN (брой, стандарти)	VLANs: 256, IEEE 802.1q VLAN
QoS	Ingress policing, rate limit, egress queuing and shaping, auto QoS
Сигурност	Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, storm control,SCP,SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, SUDI 2099, PACL/RACL/VACL, MACsec-128
Мрежови стандарти	IEEE 802.1D, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, IEEE 802.1AB LLDP, IEEE 1588v2, 802.3ad, 802.3ah, 802.3, 802.3x, 802.3u, 802.3ab, 802.3z
Протоколи за индустриална автоматизация	CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Работна температура	-40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure), -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure), +85°C (type tested for 16 hours)
Размери (Ш, Д, В), mm	91 x 135 x 152 mm
Опция за монтаж	DIN rail
Други	1x RS-232 (via RJ-45), 1x USB Mini Type B, Network Essentials, IPv6 functionality, Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP
Гаранция	60 месеца
