P/N: IE-3200-8P2S-E

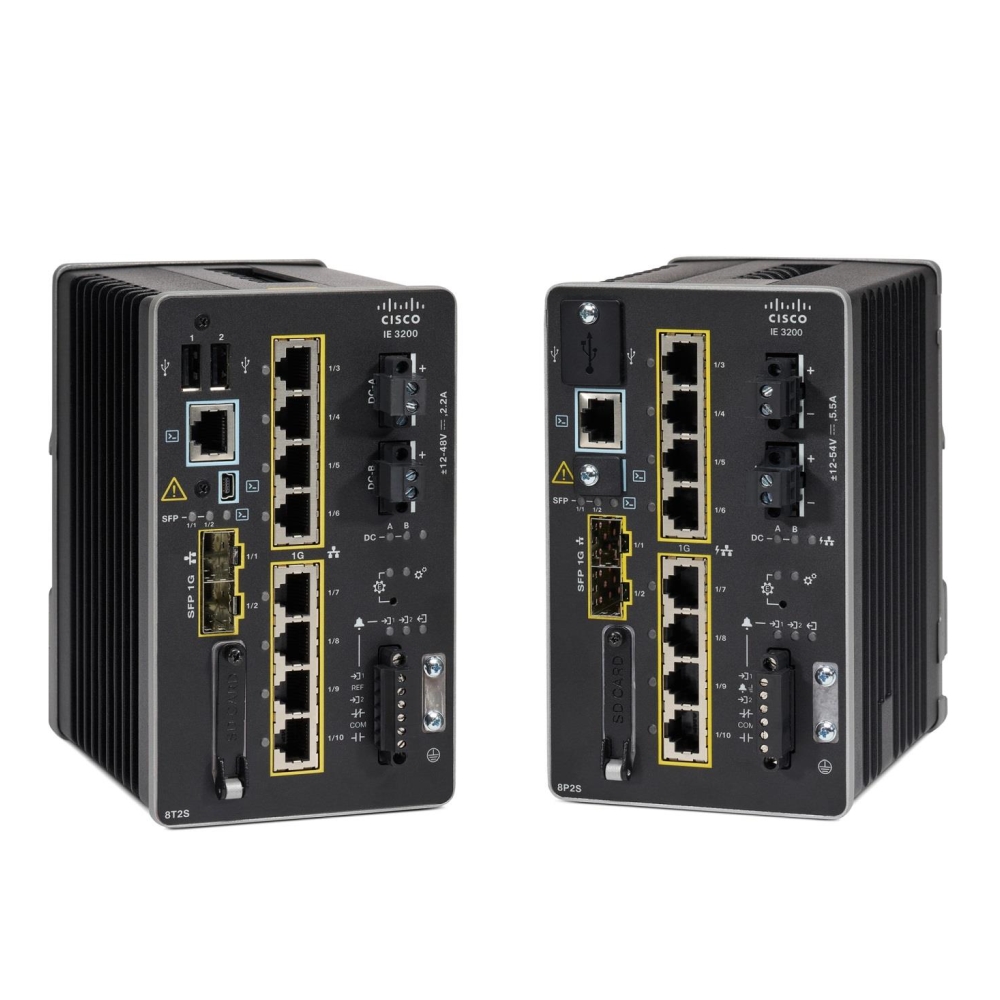

Commutator/ Switch, Cisco Catalyst IE3200 with 8 GE PoE Copper & 2 GE SFP, Fixed System, Network Essentials

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst IE3200 with 8 GE PoE Copper & 2 GE SFP Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed port
Total number of ports	10
Мain ports, type	8x GE copper ports (10/100/1000 RJ45 Copper ports)
Power Over Ethernet (PoE)	240W budget, IEEE 802.3af, IEEE 802.3at
Uplink ports	2x GE SFP ports (100/1000 SFP ports)
Open (10GB) slots	-
Management	Web UI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Stackable	-
Fans	Convection cooled
Power supply	Redundant DC input voltage: 9.6 to 60VDC, 48VDC is required for PoE and 54VDC is required for PoE+, Maximum Input current: 5.5A, Power consumption: 32W
Routing	Layer 3 routing: Inter-VLAN routing, static routing
Memory (Flash, RAM)	DRAM - 2 GB, Flash (User Accessible) - 1.5 GB, Optional: SD card capacity - 4 GB
Routing/Switching capacity, Gbps	Line rate for all ports and all packet sizes
MAC addresses	8K
VLAN (number, standards)	VLANs: 256, IEEE 802.1q VLAN
QoS	Ingress policing, rate limit, egress queuing and shaping, auto QoS
Security	Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, storm control,SCP,SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, SUDI 2099, PACL/RACL/VACL, MACsec-128
Network standarts	IEEE 802.1D, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, IEEE 802.1AB LLDP, IEEE 1588v2, 802.3ad, 802.3ah, 802.3, 802.3x, 802.3u, 802.3ab, 802.3z
Industrial environmental compliance and certifications	CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure), -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure), +85°C (type tested for 16 hours)
Dimensions (W, D, H), mm	91 x 135 x 152 mm
Мounting option	DIN rail
Other	1x RS-232 (via RJ-45), 1x USB Mini Type B, Network Essentials, IPv6 functionality, Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP
Warranty	60 months
