P/N: DMS-1100-10TP

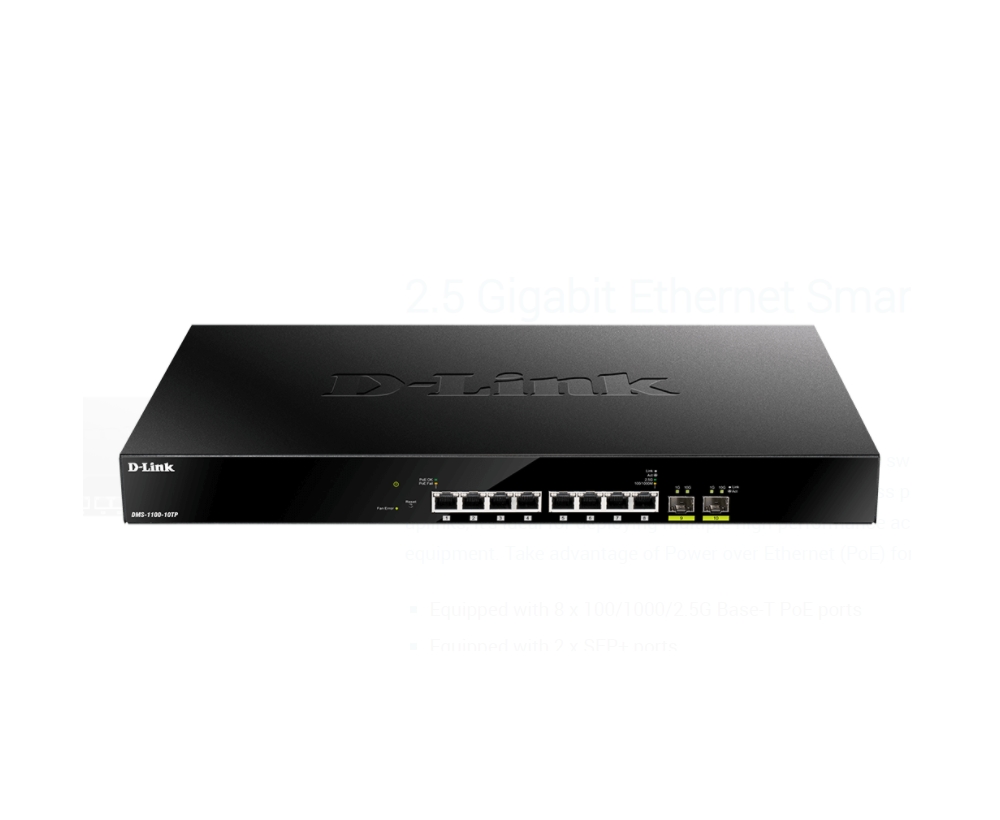

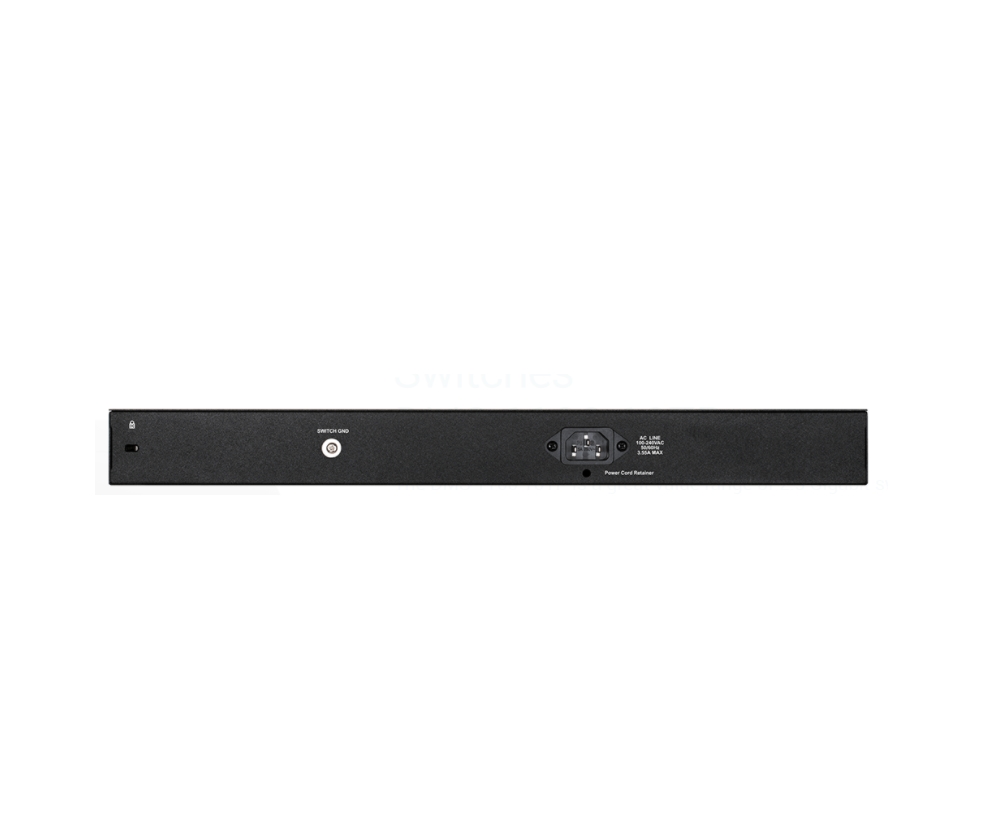

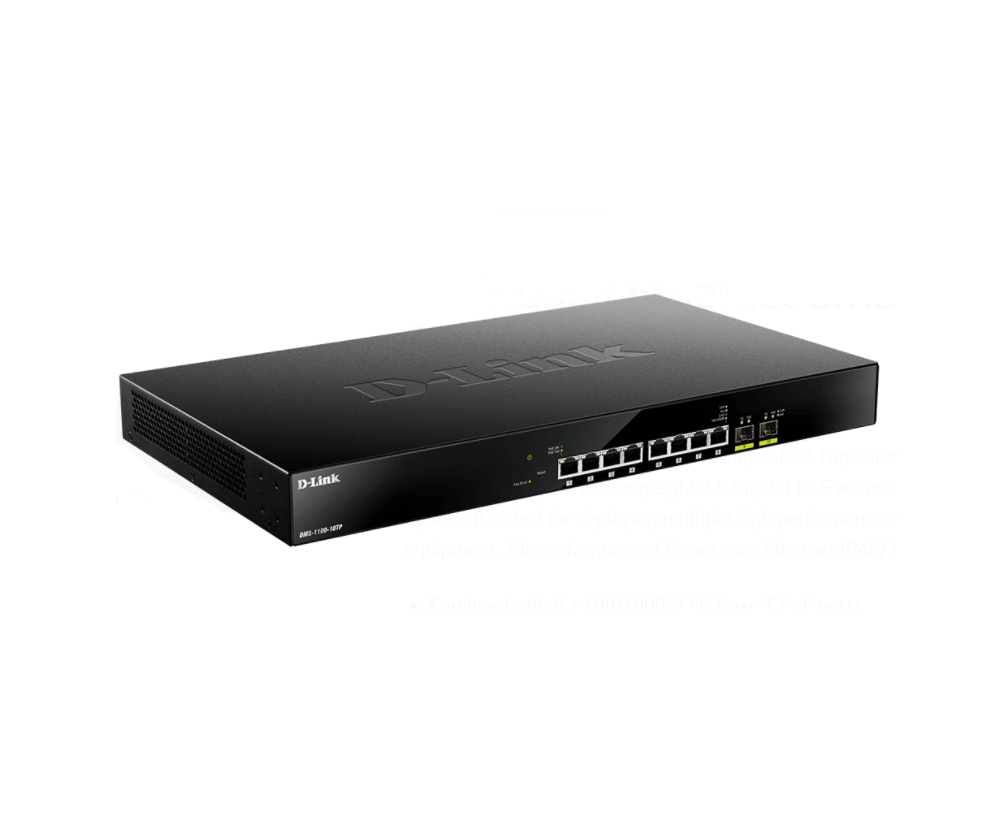

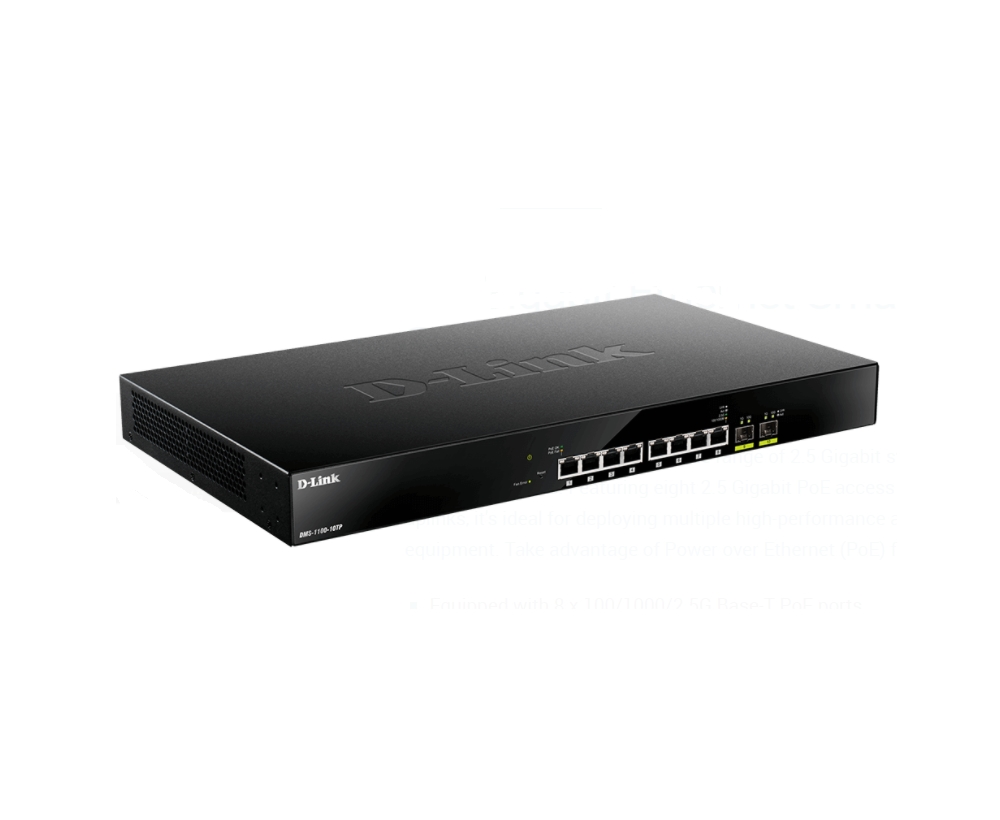

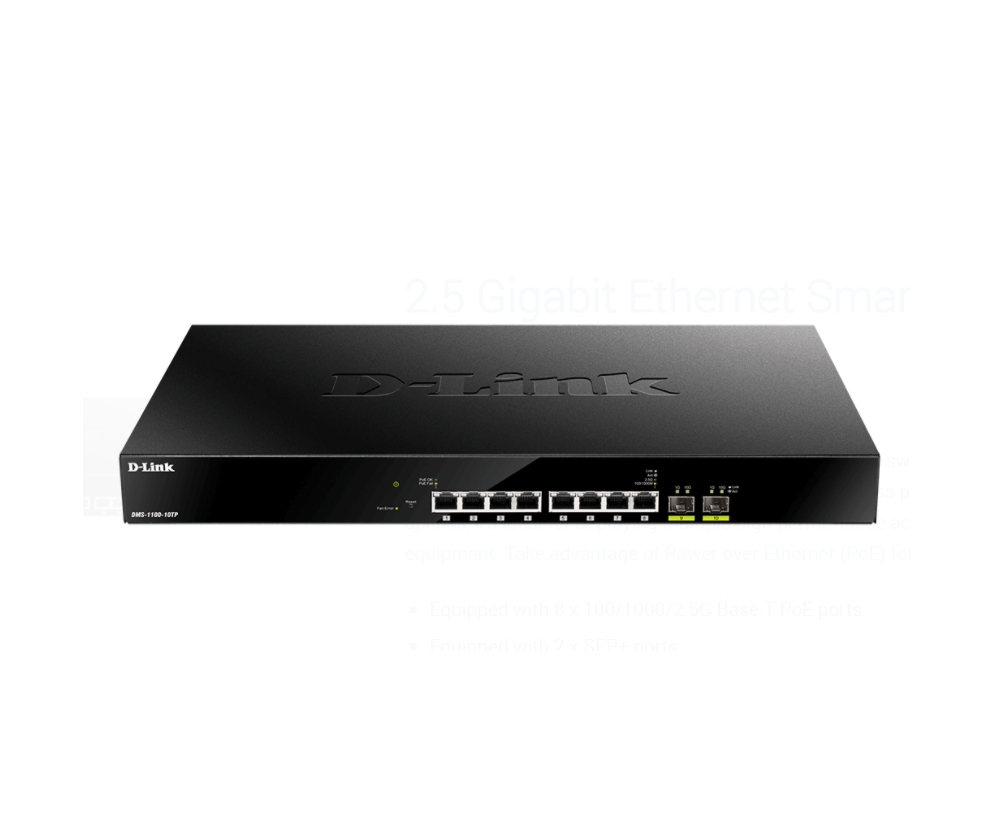

Комутатор, D-Link 8-Port 2.5G BASE-T PoE and 2-port 10G SFP+ Smart Managed Switch

D-LINK мрежови продукти >> D-Link 8-Port 2.5G BASE-T PoE and 2-port 10G SFP+ Smart Managed Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	10
Основни портове, тип	8x10/100/1000/2500Base-T
Power Over Ethernet (PoE)	IEEE 802.3af/at PoE Standards, 1 to 8 PoE Ports, PoE Budget: 240 W
Uplink портове	2x10GE SFP
Свободни (10GB) слотове	No
Управление	Web-based GUI (supports IPv4/IPv6), Smart Wizard, Client-based D-Link Network Assistant (DNA), SNTP, SNMP (Supports v1/v2c/v3), SNMP trap, System log, DHCP/BootP client, TFTP client, D-Link Discovery Protocol (DDP), Dual images, Dual configurations, Ping
Stackable	No
Fans	Smart Fan
Захранване	AC Input: 100 to 240 VAC, Maximum Power Consumption: 293.4 W (PoE on), 38.1 W (PoE off)
Routing	Layer 2 Only
Памет (Flash, RAM)	Flash Memory: 128 MB, DRAM: 256 MB
Капацитет за маршрутизиране/превключване, Gbps	80 Gbps
Пропускателна способност, Mpps	59.52 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	802.1Q tagged VLAN; Port-based VLAN; Auto Surveillance VLAN 2.0; Voice VLAN; Asymmetric VLAN; VLAN Group - Supports 4094 static VLAN groups, Max. 4094 VIDs
QoS	802.1p Quality of Service - 8 queues per port, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Port-based bandwidth control (rate limiting); Port-based bandwidth control - Ingress/Egress bandwidth control
L2 мрежови стандарти	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSLv3/TLS 1.2 (IPv4/IPv6 support)
Размери (Ш, Д, В), mm	440 x 250 x 44 mm
Опция за монтаж	Rackmount
Гаранция	99 месеца
