P/N: DIS-300G-14PSW

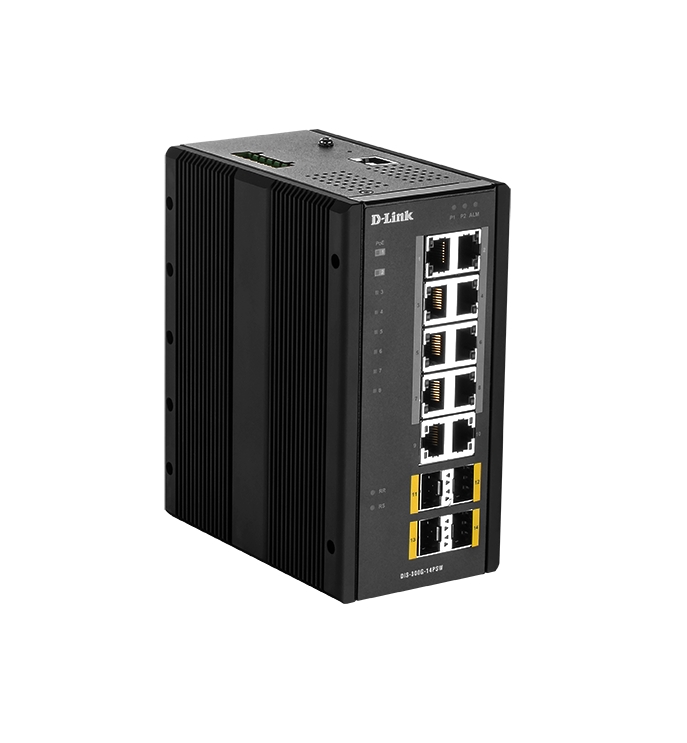

Комутатор, D-Link 14 Port L2 Managed Switch with 10 x 10/100/1000BaseT(X) ports (8 PoE) & 4 x 100/1000BaseSFP ports

D-LINK мрежови продукти >> D-Link 14 Port L2 Managed Switch with 10 x 10/100/1000BaseT(X) ports (8 PoE) & 4 x 100/1000BaseSFP ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	14
Основни портове, тип	8x10/100/1000Base-T
Power Over Ethernet (PoE)	Support IEEE 802.3af PoE, IEEE 802.3at PoE plus standard, 60W (port 1 and 2 only); PoE Power Budget: 240W
Uplink портове	2x10/100/1000Base-T, 4xSFP
Свободни (10GB) слотове	No
Управление	Industrial-like CLI (command line interface); WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); FTP for Configuration Import/Export and Firmware Upgrade; HTTPs, SSH, Radius Client for Management; NTP/SNTP; DHCP (Client, Server, Relay, Snooping)
Stackable	No
Fans	Fanless design
Захранване	Input Voltage Range: 48-58 VDC (54~58V VDC for IEEE802.3at PoE/PSE application); Compatible Power Supplies: DIS-N240-48, DIS-N480-48
Routing	Layer 2 Only
Памет (Flash, RAM)	-
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	Port-based VLANs; MAC-based VLANs; IP Subnet-based VLANs; Protocol-based VLANs; IEEE 802.1Q tag-based VLANs; RADIUS-assigned VLAN; IEEE 802.1ad Double Tagging (Q in Q); 1024 Max VLANs
QoS	IEEE 802.1p QoS, 8 queues per port; Scheduling Schemes - SPQ, WRR; Port-based shaping; RADIUS-assigned QoS Class
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1X, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1p
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	IP and MAC-based access control; IEEE 802.1X authentication; Network Access Control; Authentication via local database, RADIUS or TACACS+ AAA (Authentication, Accounting and Authorization); Multicast/Broadcast/Flooding Storm Control
Размери (Ш, Д, В), mm	77 x 154 x 128
Гаранция	60 месеца
