P/N: C9300-48T-A

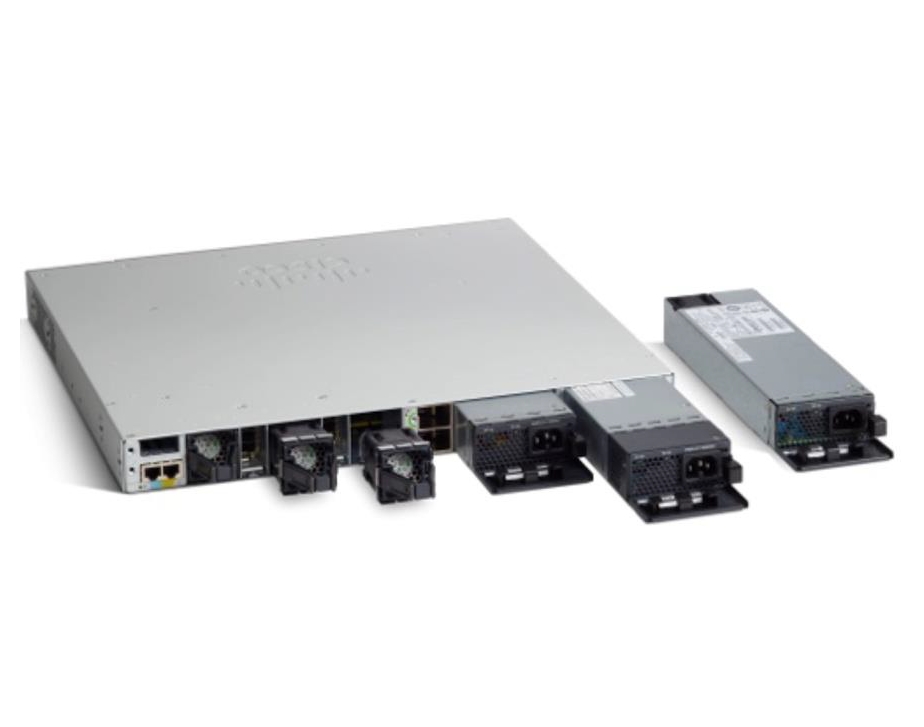

Комутатор, Cisco Catalyst 9300 48-port data only, Network Advantage

Задължителен е минимум 3-годишен лиценз DNA Advantage!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9300 48-port data only Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	48
Основни портове, тип	48x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	0
Свободни (10GB) слотове	1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
Управление	SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable	Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Fans	Three field-replaceable fans
Захранване	Dual redundant power supplies, Default power supply: PWR-C1-350WAC
Routing	Layer 3 Advanced
Памет (Flash, RAM)	Flash memory: 16 GB; RAM: 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps	256 Gbps
Пропускателна способност, Mpps	190.48 Mpps
MAC адреси	32000 MAC address table size
VLAN (брой, стандарти)	VLAN IDs: 4000; IEEE 802.1Q VLAN
QoS	Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
L3 мрежови стандарти	Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
IPv6 functionality	IPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Сигурност	Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Размери (Ш, Д, В), mm	445 x 445 x 44
Опция за монтаж	Rackmount
Други	Задължителен е минимум 3-годишен лиценз DNA Advantage.
Гаранция	99 месеца
