P/N: MGC5000B
Аксесоар, Huawei SmartMGC5000B

24

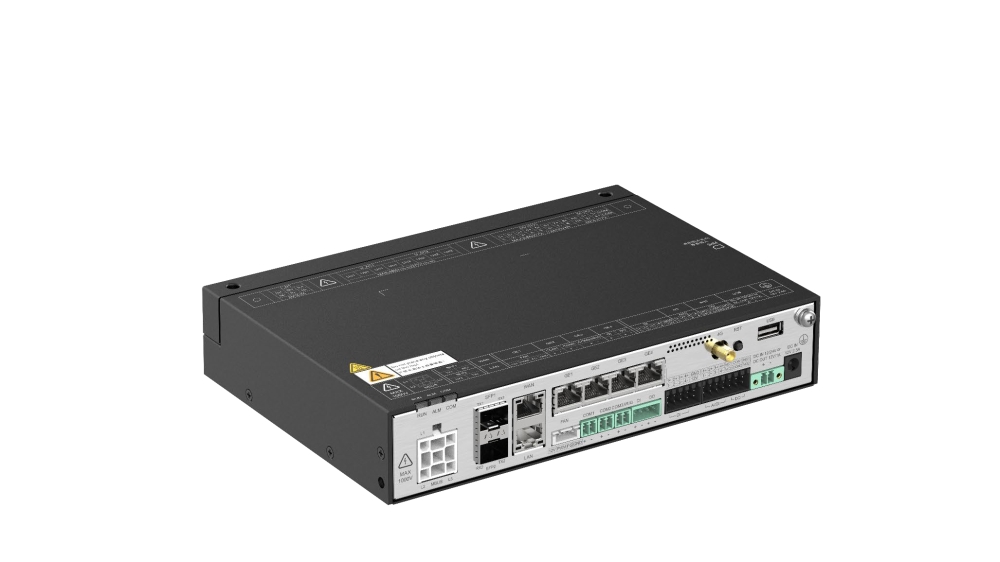

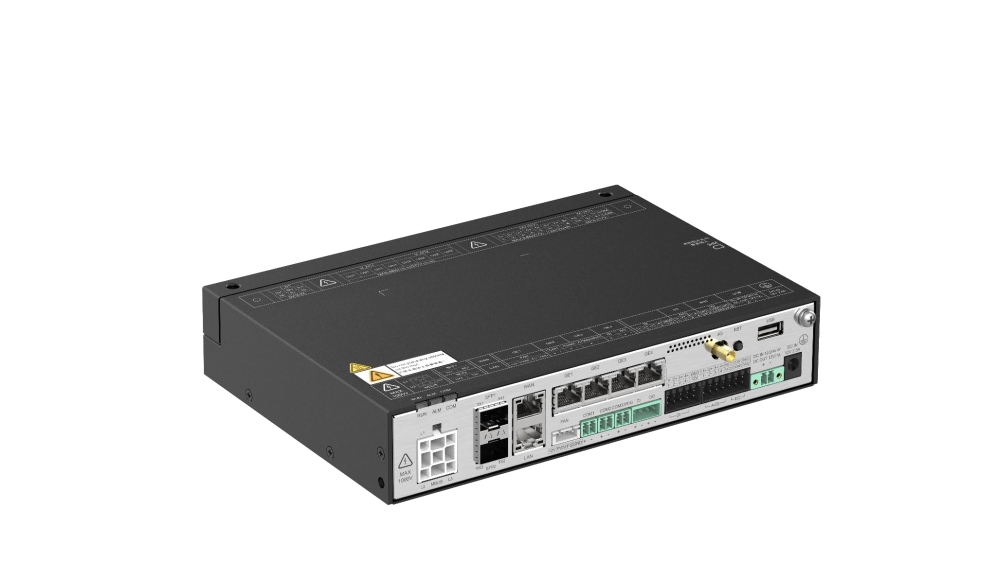

Huawei SmartMGC5000B
HUAWEI инвертори за фотоволтаични системи >> Huawei SmartMGC5000B Препоръчителен сервиз
Препоръчителен сервиз
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Характеристики

Х-ка 1 Communications ports: WAN x1, 10/100/1000 Mbit/s; LAN x1, 10/100/1000 Mbit/s; GE x4, 10/100/1000 Mbps; MBUS - Maximum AC voltage: 1000 V (±10%), maximum communication distance: 500 m; RS485 - COM x3, maximum communication distance: 1000 m; support2G/3G/4G
Х-ка 2 Optical fiber: SFP x 2, 1000 Mbit/s, 1310 nm wavelength, 10 km transmission distance using singlemode optical fibers; DI x 4, DO x 2. DI ports can receive passive dry contact signals, and DO ports support a maximum of 12 V signal voltage
Х-ка 3 DI (HV) x4, contact voltage range:100V AC~277 V AC DO (HV) x8, contact voltage range:100V AC~277 VAC, 1fast DO port action time <1ms to support seamless on/off-grid switching; AI x4 (three channels of current-type input+one channel of voltage-type input)
Х-ка 4 Display: LED x 3 – RUN, ALM, 4G; USB 2.0 x 1; WLAN connection, used for commissioning
Х-ка 5 Operating Temperature Range: -40°C~60°C, Storage Temperature: -40°C~70°C, Relative Humidity (Non-condensing): 5%~95%, Max. Operating Altitude: 5000m
Х-ка 6 AC Power Supply: Adapter (100–240 V AC, 50 Hz/60 Hz), DC power supply: 12 V/24 V, Power consumption: Typical - 12.5 W; Maximum - 16.5 W
Х-ка 7 IP rating: IP20; Installation mode: Wall-mounted, guide rail-mounted, or desk-mounted
Х-ка 8 Dimensions (WxHxD): 225 x 160 x 44 mm (excluding mounting ears and antennas), Weight: 2 kg
Гаранция 24 месеца

EAN: -
