P/N: DS-3E1516-EIV3

Комутатор, HikVision 16 Port Gigabit Smart Switch, 16 x Gigabit RJ45 port, Link aggregation, switching capacity 56 Gbps, 6 kV Surge Protection

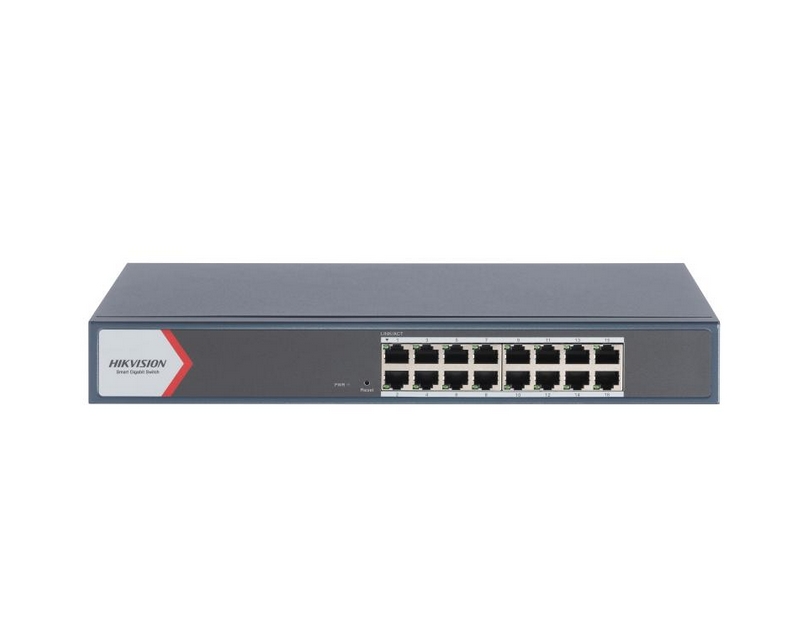

HikVision 16 Port Gigabit Smart Switch, 16 x Gigabit RJ45 port, Link aggregation, switching capacity 56 Gbps, 6 kV Surge Protection

HikVision HiWatch Series >> HikVision 16 Port Gigabit Smart Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	16
Основни портове, тип	16x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	0
Свободни (10GB) слотове	No
Управление	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; Port mirroring
Stackable	No
Fans	Fanless design
Захранване	220 V AC, 50/60 Hz, Max. 0.3 A; Max. Power Consumption: 12 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps
Пропускателна способност, Mpps	41.66 Mpps
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration, Support SP and WRR priority scheduling modes
L2 мрежови стандарти	IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab, IEEE 802.3az
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	6 kV Surge Protection, STP/RSTP loop prevention, cable detection to locate failure, DHCP snooping
Размери (Ш, Д, В), mm	335.00 x 44.50 x 175.80 mm
Опция за монтаж	Rackmount
Гаранция	24 месеца
