P/N: DMS-1250-10SP

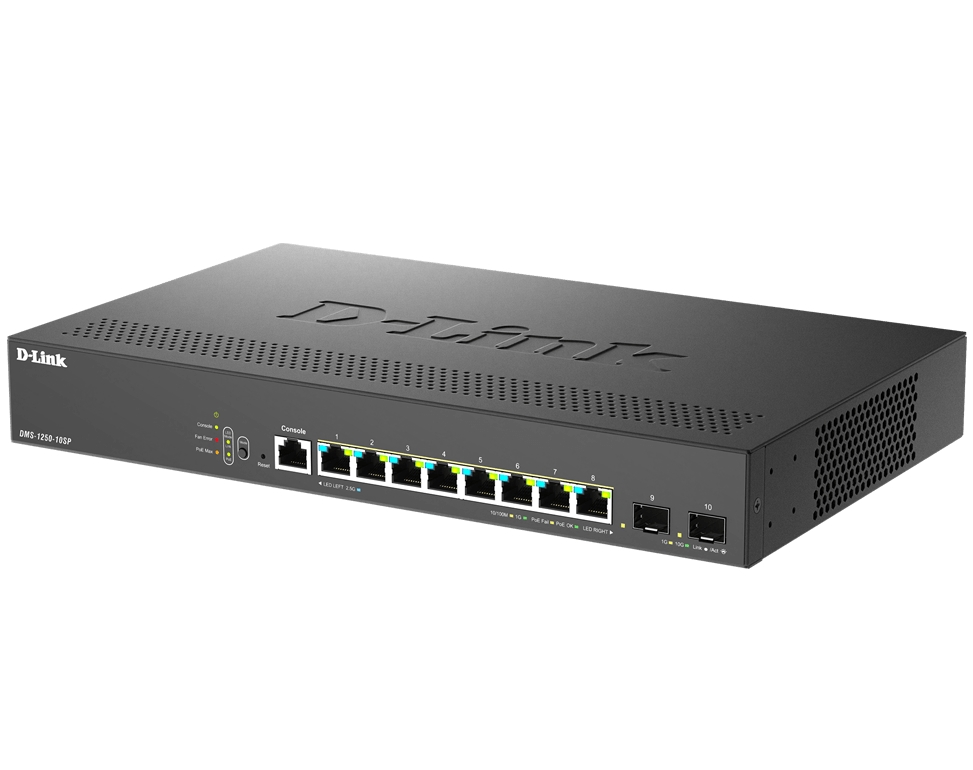

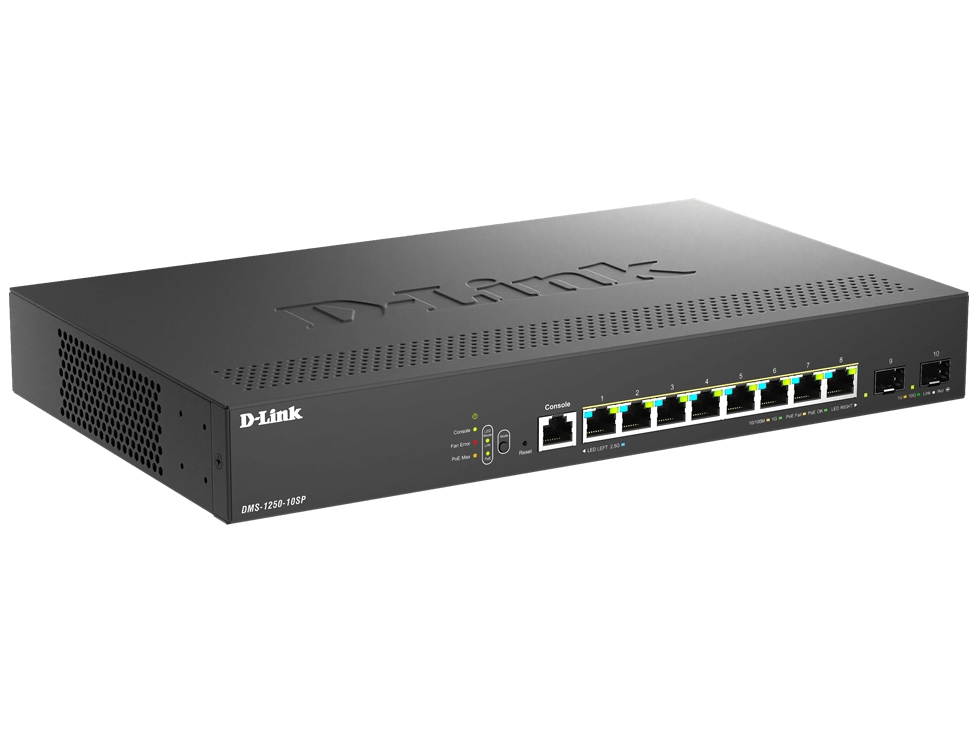

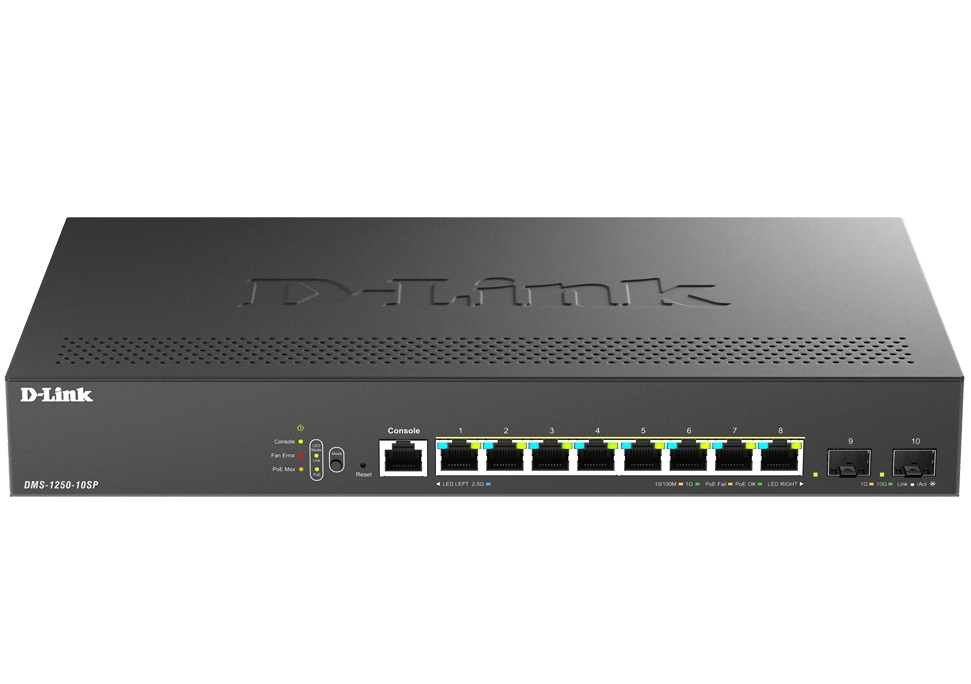

Commutator/ Switch, D-Link 8-Port 2.5G Base-T PoE and 2-port 10G SFP+ Smart Managed Switch

D-LINK мрежови продукти >> D-Link 8-Port 2.5G Base-T PoE and 2-port 10G SFP+ Smart Managed Switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000/2500Base-T
Power Over Ethernet (PoE)	IEEE 802.3af/at (30W) PoE Standard, 8 PoE Capable Ports, PoE Power Budget: 240 W
Uplink ports	2x10GE SFP
Open (10GB) slots	No
Management	Web-based GUI, Full CLI, Telnet Server, TFTP Client, Auto MDI/MDIX, SNMP (Supports v1/v2c/v3), SNMP Trap, Backup/upgrade firmware, Smart Wizard, Upload/download configuration file, BootP/DHCP Client, System Log, RMONv1, Trusted host, Command logging
Stackable	No
Fans	2 internal fans

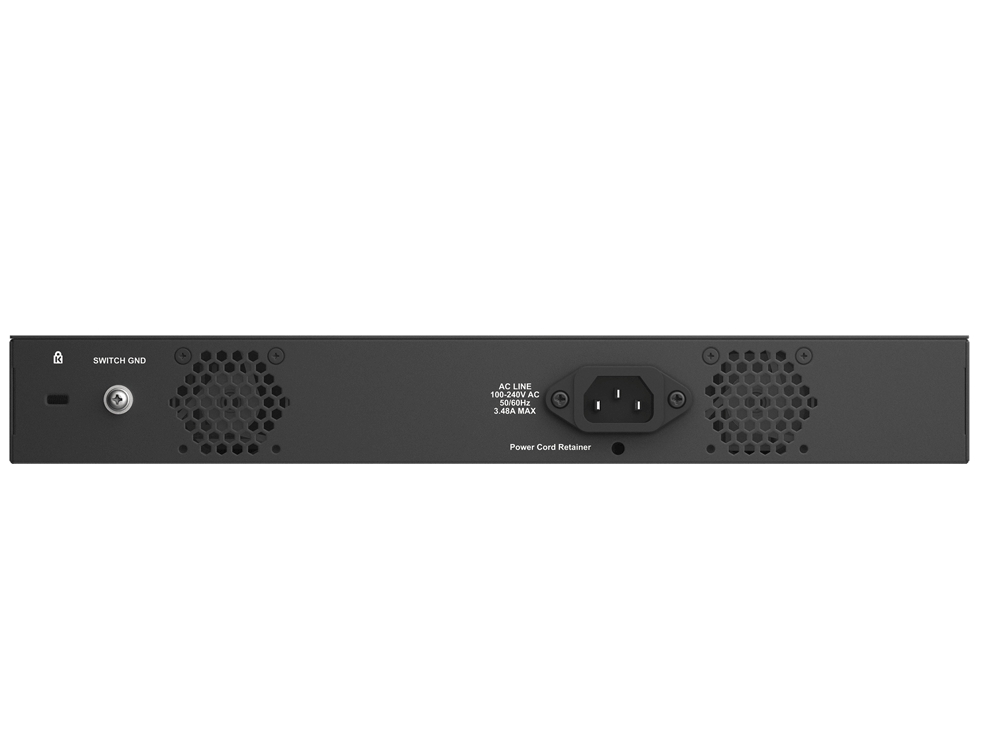

Power supply	Internal universal power supply: 100 to 240 V AC 50/60 Hz, Maximum Power Consumption: 287.58 W (PoE on)
Routing	Layer 3 Lite
Memory (Flash, RAM)	Flash Memory: 32 MB, DRAM: 512 MB
Routing/Switching capacity, Gbps	80 Gbps
Throughput, Mpps	59.53 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	802.1Q; VLAN Group - Max. 4094 static VLAN groups; Configurable VID from 1 - 4094; Asymmetric VLAN; Auto Voice VLAN; Auto Surveillance VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, WFQ, Weighted Round Robin (WRR); Bandwidth Control - Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
L2 network standards	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at
L3 network standards	Static route: 128 IPv4 static route entries, 64 IPv6 static route entries
IPv6 functionality	IPv6 Neighbor Discovery (ND); IPv6 address: Source/destination IP address prefix length, DSCP, Protocol type, TCP/UDP port number, IPv6 traffic class
Security	Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Traffic segmentation, TLS v.1.2, DoS attack prevention, 802.1X, Port Security - Supports up to 64 MAC addresses per port, DHCP, IP-MAC-Port Binding, Password encryption
Dimensions (W, D, H), mm	330 x 200 x 44 mm
Мounting option	Desktop
Warranty	99 months
