P/N: PTZ-N4225I-DE(H)

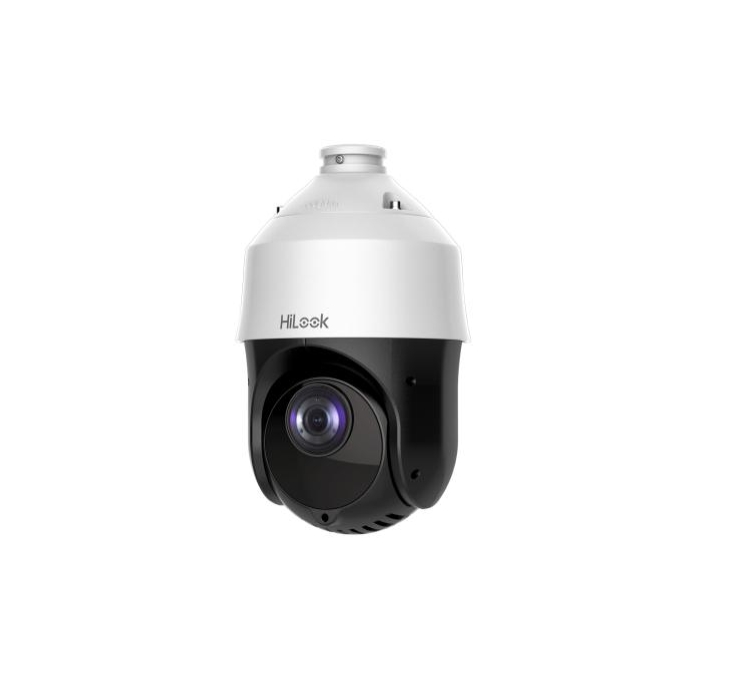

Камера, Hi-Look 4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome, 4.8 mm to 120 mm, F1.6 to F3.5, IR up to 100m, H.265+, IP66, 120 dB WDR, built-in memory card slot (up to 256 GB), 12Vdc/PoE+/18W

Hi-Look 4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome, 4.8 mm to 120 mm, F1.6 to F3.5, IR up to 100m, H.265+, IP66, 120 dB WDR, built-in memory card slot (up to 256 GB), 12Vdc/PoE+/18W

HikVision HiWatch Series >> Hi-Look 4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Тип	IP
Сензор, тип	CMOS
Размер на оптичния сензор	1/2.8" progressive scan CMOS
Резолюция, MP	2 MP
Фокално разстояние	4.8 mm to 120 mm, 25x optical, horizontal field of view: 57.6° to 2.5° (Wide-Tele), vertical field of view: 34.4° to 1.4° (Wide-Tele), diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Минимална осветеност, lx	Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
IR осветление	IR up to 100m
Максимална резолюция, pixels	1920x1080
Формати на компресиране	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Скорост на предаване на кадри	Main Stream - 50 Hz: 25 fps (1920x1080, 1280x960, 1280x720), 60 Hz: 30 fps (1920x1080, 1280x960, 1280x720); Sub-Stream - 50 Hz: 25 fps (704x576, 640x480, 352x288), 60 Hz: 30 fps (704x480, 640x480, 352x240); Third Stream
Поддържани мрежови протоколи	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets
Мрежов интерфейс	1 RJ45 10 M/100 M Ethernet Interface
Безжична мрежа	-
Power Over Ethernet (PoE)	PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W (IR Max.6 W)
Входни/Изходни портове	Audio: 1 input (line in), 1 output (line out)
Звук	-
Захранване	12 VDC, 2.0 A
Слот за карти	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Нощно виждане	IR cut filter
Външен монтаж	yes
Влагозащита	IP66
Вандалоустойчивост	-
Работна температура	-30 °C to 65 °C
Диапазон на влажността при експлоатация	Humidity 90% or less (non-condensing)
Сигурност	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Размери (Ш, Д, В), mm	166 x 289.6 mm
Други	Zoom: 25x optical, 16x digital
Гаранция	24 месеца
