P/N: MS390-24P-HW

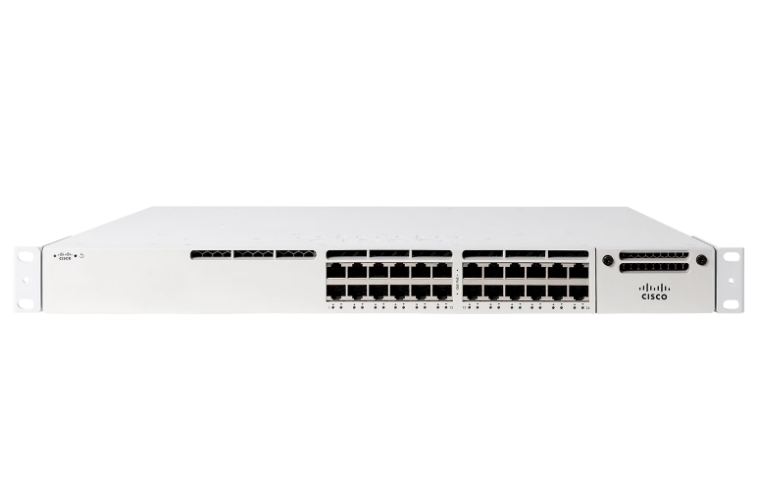

Комутатор, Cisco Meraki MS390 24GE L3 PoE+ Switch

Задължително е да се поръча лиценз!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS390 24GE L3 PoE+ Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	24
Основни портове, тип	24x 10/100/1000Base-T
Power Over Ethernet (PoE)	PoE+; PoE W/ Primary PS:445W, Power Load (idle/max): 84.1 / 554.4 W
Uplink портове	Modular; Two 40G or four/eight 10G modular fiber uplinks
Свободни (10GB) слотове	-
Управление	1x Dedicated Management Interface; Managed via Cisco Meraki Dashboard
Stackable	2x 120G Hardware Stack Ports; Physically stack up to 8 switches with 480 Gbps of stacking bandwidth on all models; Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	3x Hot Swap Fans
Захранване	1 x Power Supply (MA-PWR-715WAC); Dual Hot Swap Power Supply
Routing	Static routing, OSPFv2l Multicast routing (PIM-ASM); Warm Spare (VRRP) ; DHCP Server, DHCP Relay
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	208 Gbps
Пропускателна способност, Mpps	154.76 Mpps
MAC адреси	32K
VLAN (брой, стандарти)	802.1Q VLAN and trunking support for up to 4094 VLANs (1000 active VLANs with STP enabled)
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 мрежови стандарти	Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST); 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP); 802.3ad Link aggregation
L3 мрежови стандарти	Static routing, OSPFv2; Multicast routing (PIM-ASM); Warm Spare (VRRP) ; DHCP Server, DHCP Relay
IPv6 functionality	IPv4 and IPv6 ACLs
Сигурност	Port security: Sticky MAC, MAC allow lists; DHCP; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; Single-Host/Multi-Domain/Multi-Host/Multi Authentication; Integrated multi-factor authentication for Dashboard management; etc.
Размери (Ш, Д, В), mm	445 x 449 x 44 mm
Опция за монтаж	1U RackMount
Гаранция	99 месеца
