P/N: MS350-24P-HW

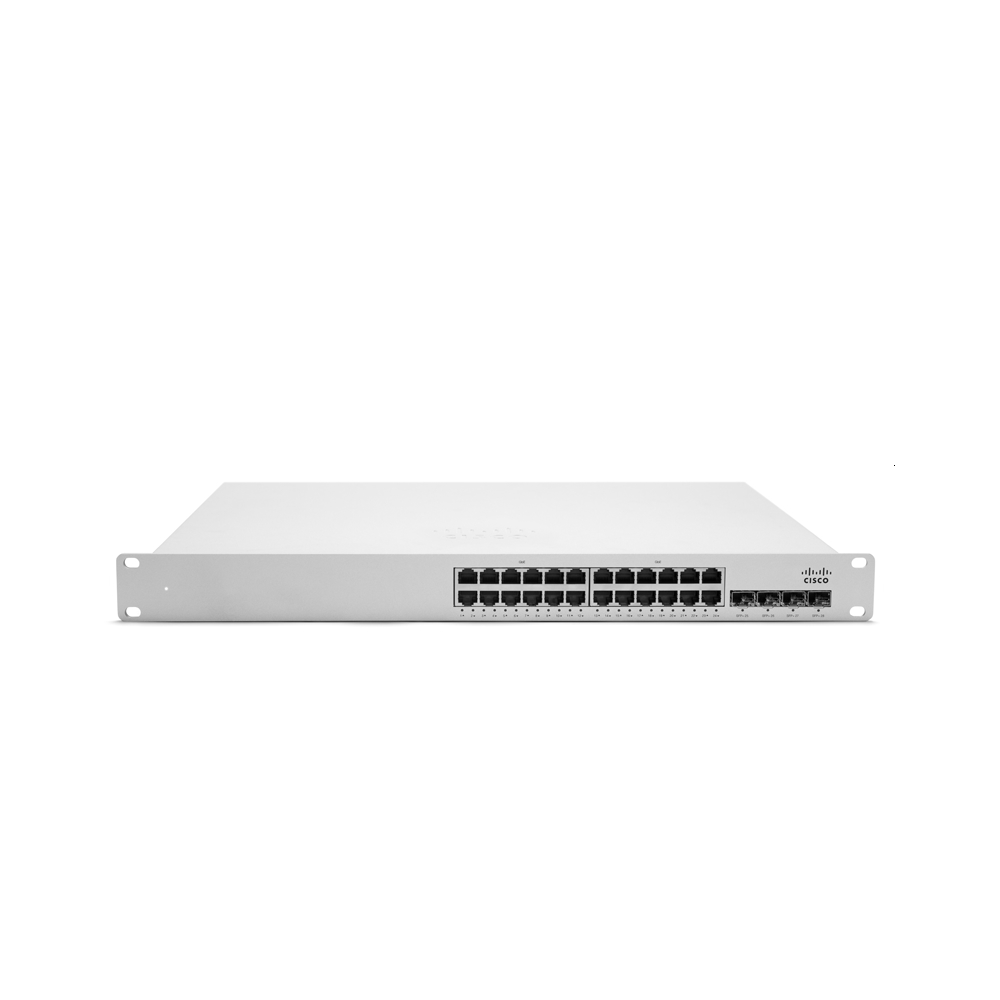

Комутатор, Cisco Meraki MS350-24P L3 Stck Cld-Mngd 24x GigE 370W PoE Switch

Задължително е да се поръча лиценз!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS350-24P L3 Stck Cld-Mngd 24x GigE 370W PoE Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T with with auto negotiation and auto-MDIX
Power Over Ethernet (PoE)	802.3af (PoE) 15.4 W per port, 802.3at (PoE+) 25.5 W per port, maximum PoE output: 370 W PoE; available simultaneously on all ports
Uplink портове	4 x SFP+ 10G
Свободни (10GB) слотове	No
Управление	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	2 x stacking ports; Physically stack up to 8 switches with 160 Gbps of stacking bandwidth; Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	Variable speed fans
Захранване	Hot-swappable Power Supply Configuration; Supported Power Supply: 2 x 250W PSU (Single power supply (PSU) included. For redundancy, second PSU is sold separately)
Routing	Layer 3 Advanced
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	128 Gbps
Пропускателна способност, Mpps	95.24 Mpps
MAC адреси	96000 MAC address table size
VLAN (брой, стандарти)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 мрежови стандарти	Static routing, OSFPv2 (with support for up to 16 ECMP Routes), Multicast routing, Warm Spare (VRRP) - OSPF and Warm Spare do not operate concurrently, DHCP Server, DHCP Relay
IPv6 functionality	-
Сигурност	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; IPv4 and IPv6 ACLs
Размери (Ш, Д, В), mm	485 x 518 x 44
Опция за монтаж	Rackmount
Гаранция	99 месеца
