P/N: MS120-24P-HW

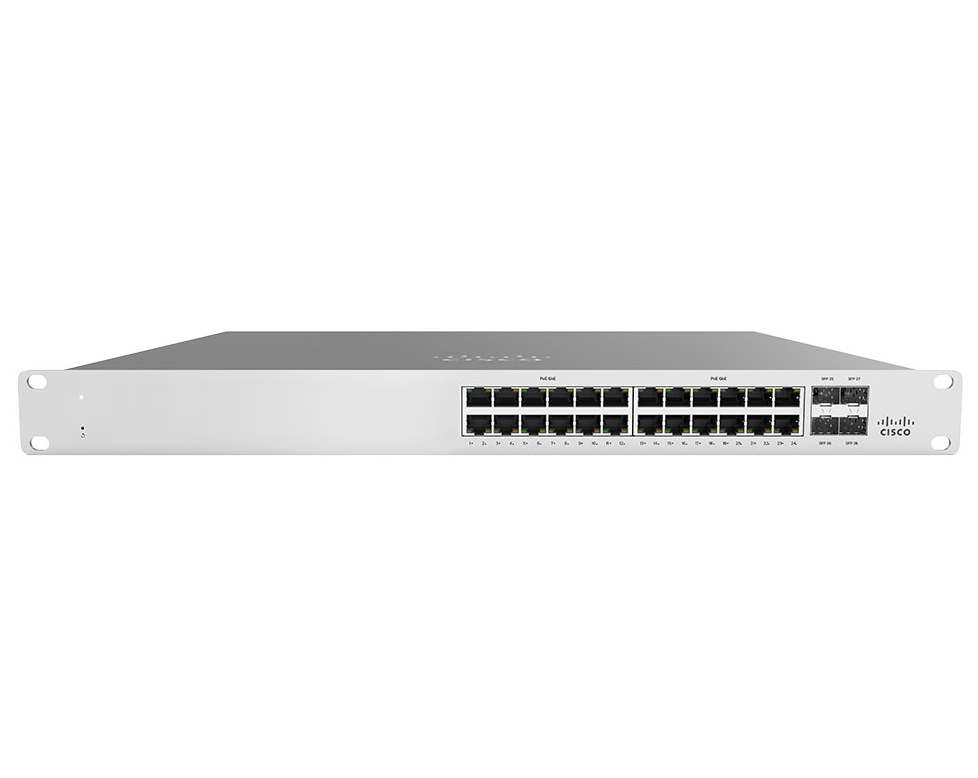

Комутатор, Cisco Meraki MS120-24P 1G L2 Cld -Mngd 24x GigE 370W PoE Switch

Задължително е да се поръча лиценз!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS120-24P 1G L2 Cld -Mngd 24x GigE 370W PoE Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x 10/100/1000Base-T (auto-MDIX crossover)
Power Over Ethernet (PoE)	PoE, 370 W (Up to 30W per port)
Uplink портове	4xSFP
Свободни (10GB) слотове	No
Управление	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	Fanless design
Захранване	Fixed internal: 100 - 240 VAC, 47-63 Hz
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps
Пропускателна способност, Mpps	41.67 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; IPv4 and IPv6 ACLs
Размери (Ш, Д, В), mm	440 x 250 x 44
Опция за монтаж	Desktop/Rackmount
Други	RJ45 Management port
Гаранция	99 месеца
