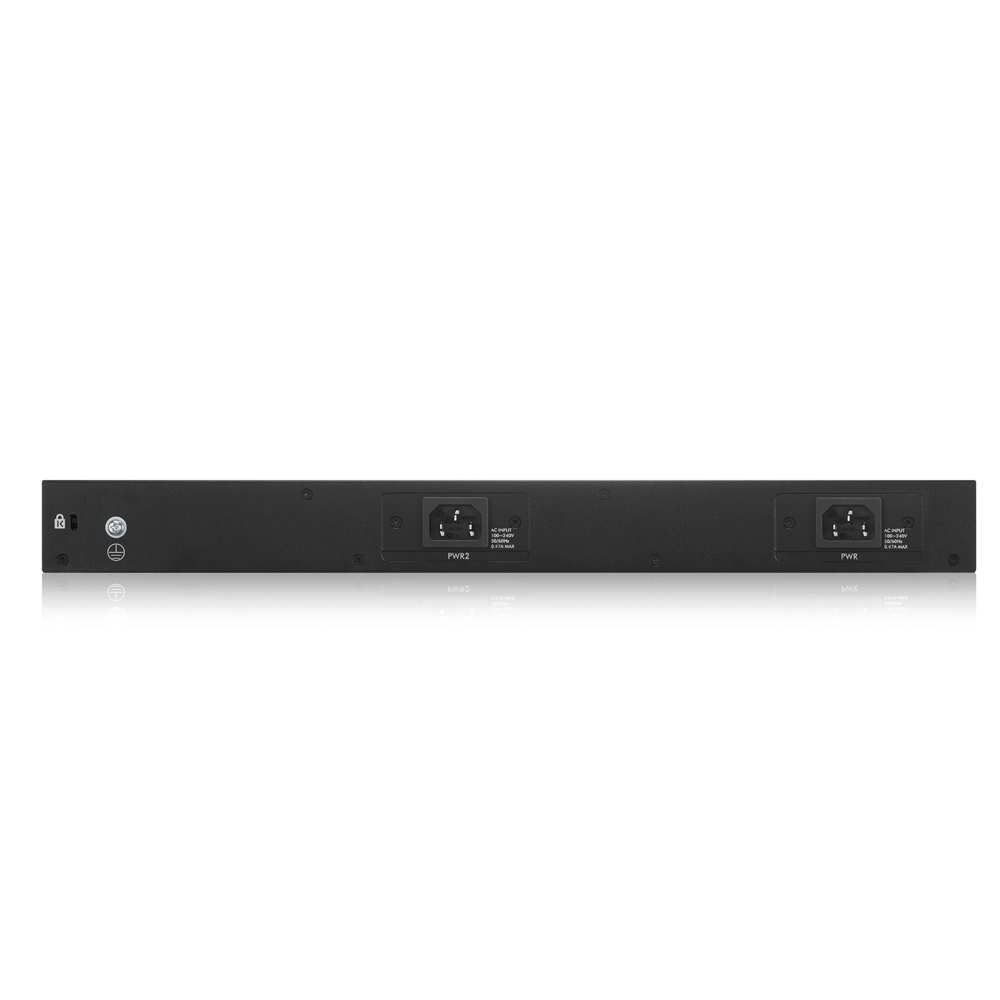

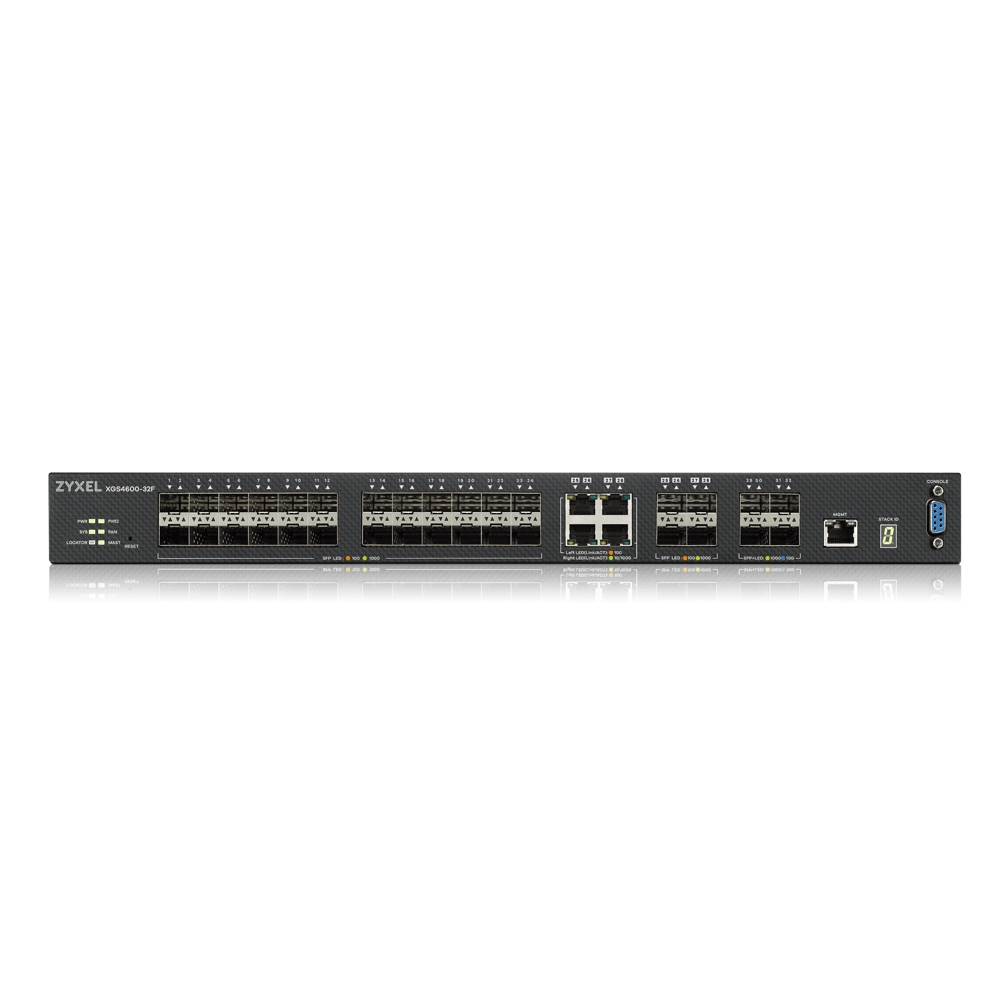

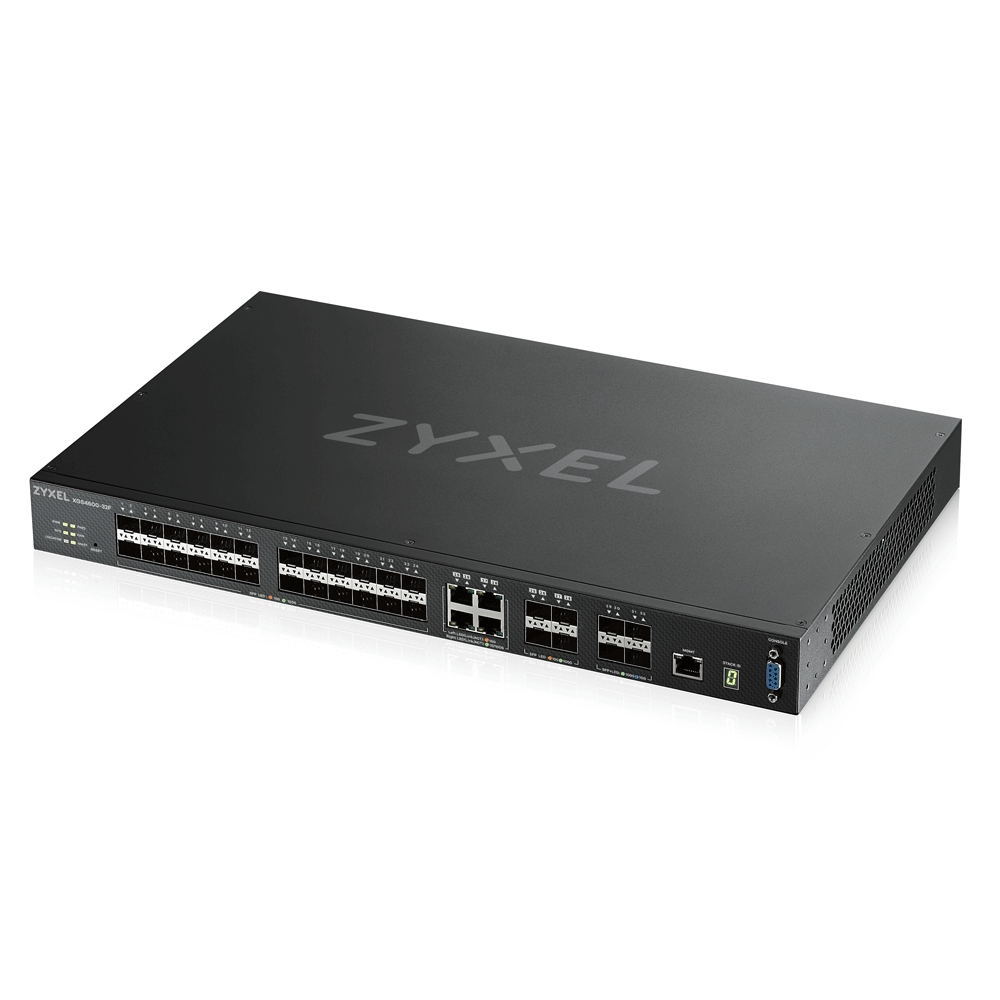

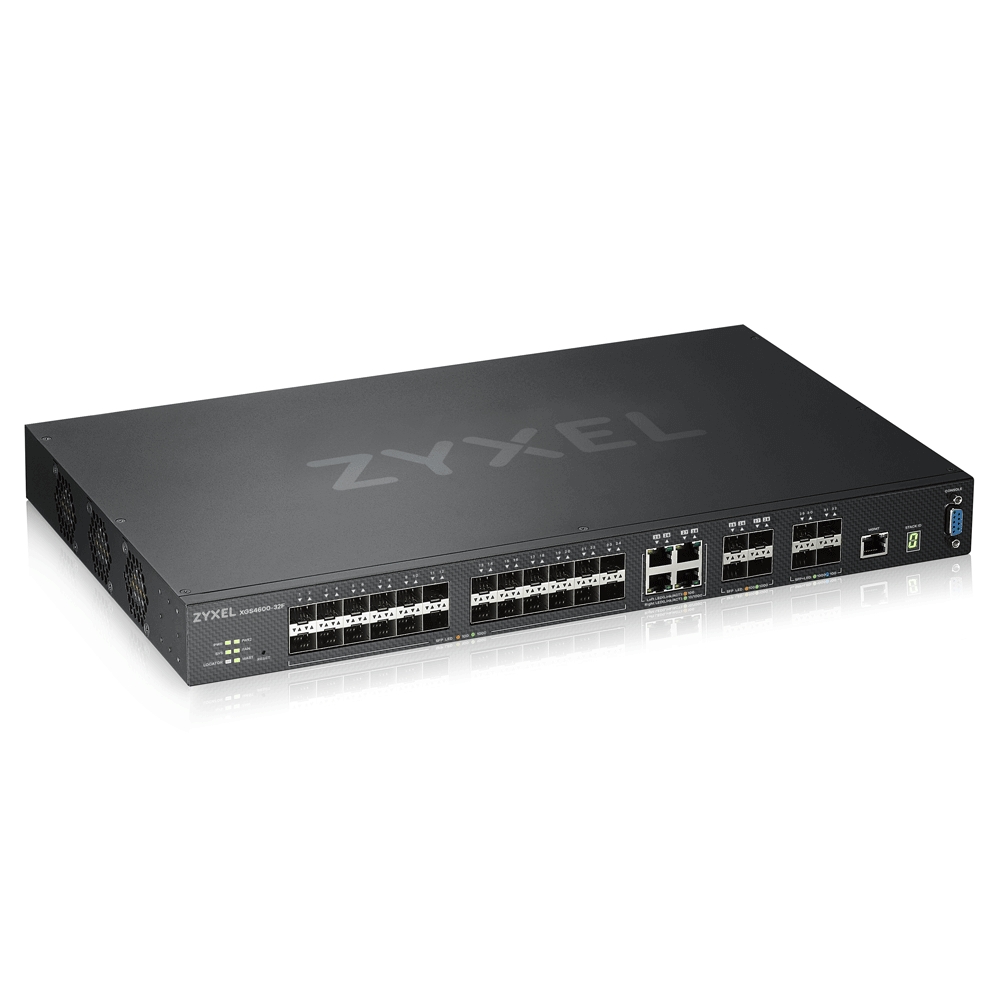

P/N: XGS4600-32F-ZZ0102F

Commutator/ Switch, Zyxel XGS4600-32F L3 Managed Switch, 24 port Gig SFP, 4 dual pers. and 4x 10G SFP+, stackable, dual PSU

Characteristic

Switch, type Fixed Port
Total number of ports 32
Мain ports, type 24 x GbE SFP slots + 4 x GbE combo (RJ-45/SFP) ports
Power Over Ethernet (PoE) -
Uplink ports 4 x 10 GbE SFP+
Open (10GB) slots -
Management Web-based management, Telnet, SSH, SNMP, RS-232c local console, IP management: static IP or DHCPassigned IP, Four RMON groups, Port mirroring, IEEE 802.1AB LLDP, Transceiver DDMI information (including MIB), sFlow
Stackable Zyxel iStacking, up to 24 switches managed by a single IP address; Physical stacking up to 4 switches
Fans Fanless
Power supply External Power supply: 100 to 240V AC, 50/60 Hz, Max. power consumption: 60.1W
Routing Static routing, IPv6 static routing, Equal Cost Multipath Routing (ECMP), Virtual Router Redundancy Protocol (VRRP), Routing table: 12K
Memory (Flash, RAM) Packet buffer: 4 MB; Flash/RAM: 64 MB/1 GB
Routing/Switching capacity, Gbps 136 Gbps
Throughput, Mpps 101.1 Mpps
MAC addresses 32 K; Max. 8K IPv4 entries; Max. 4K IPv6 entries
VLAN (number, standards) Up to 4 K static/dynamic VLANs, IEEE 802.1Q tag-based and portbased VLAN, Guest VLAN, GVRP automatic VLAN member registration, IP classification VLAN, VLAN counter, VLAN search,VLAN translation, VLAN MAC limit
QoS IEEE 802.1p with 8 priority queues per port, WFR, WRR, SPQ scheduling algorithms,DSCP/DSCP to 802.1p priority mapping, IGMP/IGMP snooping, Multicast VLAN Registration (MVR), Congestion control on all ports, Selective Q-in-Q
L2 network standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3az, 802.1p CoS, 802.1D, 802.1w, 802.1s, 802.1q, 802.1x, 802.3ad
IPv6 functionality IPv6 over Ethernet, IPv6 addressing, ICMPv6, Dual Stack, IPv6 static routing, Neighbor discovery, DHCPv6 relay
Security Port security, IP filtering, TCP/UDP socket filtering, IEEE 802.1X port-based authentication, TACACS+, Two-level security by specifi c SNMP read/write community, Multiple access permission, SSH, SSL/TLS, IP source guard, Loop guard
Dimensions (W, D, H), mm 441 x 270 x 44
Мounting option Rack mounting
Warranty 99 months

EAN: -
