P/N: SYN_50XH-30

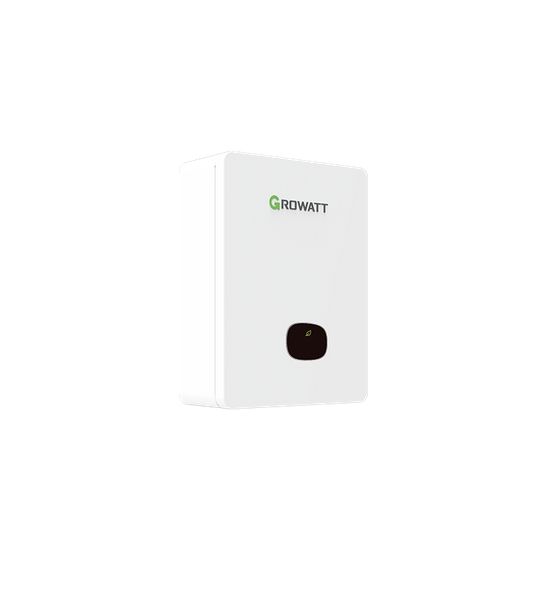

Аксесоар, Growatt SYN 50XH-30

12

Характеристики

Х-ка 1 Input from grid: Max. AC input overcurrent protection - 63A, Max. continuous input current - 50A, AC output voltage(nominal)-230V/400V (180-280V (L-N) - range), AC frequency(nominal)-50Hz/60Hz (45-65Hz - range), Grid disconnection switchover time: <500ms
Х-ка 2 Input from inverter: Rated AC power-18kW, Max. continuous input current@230V-26.1A, Rated AC power in continuous backup operation-18kW, Max. continuous input current in backup operation-26.1A, Peak AC power/current(<10s) in backup operation - 19.8kW/28.7A
Х-ка 3 Communication: RS485
Х-ка 4 Manual control bypass switch
Х-ка 5 Cooling: Natural convection, Noise: <30dB
Х-ка 6 Operating temperature range: –40 °C~60 °C, Operating humidity(rh): Up to 100%, Maximum elevation: 3000m
Х-ка 7 IP65 Protection rating
Х-ка 8 Dimensions(W/H/D): 365/486/120mm, Weight: 10.8kg
Гаранция 12 месеца

EAN: -
