P/N: CS-BARPRO-K9

Видеоконферентна система, Cisco Room Bar Pro, First Light

Cisco Enterprise and Service Providers - Collaboration Products >> Cisco Room Bar Pro Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Резолюция	Content stream: Supports resolutions up to 3840 x 2160 at 15 fps and 1920 x 1080 at 60 fps
Размер на екрана, inch	-
Видео стандарти	H.263, H.264, H265
Видео вход	1x HDMI input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps, 1x USB-C input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
Видео изход	3x HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
Аудио стандарти	G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Аудио вход	1x HDMI; 2x analog line in for microphone input; 1x DisplayPort/USB-C; 2x USB-A; 2x PoE supporting audio over IP.
Аудио изход	1x analog line output; 1x DisplayPort/USB-C output; 2x USB-A outputs
Камера	Dual camera system featuring a 112° wide-angle lens and a 70° tele-lens, both with 48 MP image sensors; Motorized tilt (between -2° and 20°); 30 frames per second; 1/1.3'' Quad Bayer; 5x digital zoom; Auto framing (face detect); Speaker tracking and etc.
Протоколи	H.323, SIP, Webex, WebRTC; Content stream: Binary Floor Control Protocol (BFCP) Session Initiation Protocol (SIP) dual stream; IP network: NTP, DHCP, CDP; Security: HTTPS, SSH, SRTP
Мултисайт	4-way embedded SIP/H.323 conferencing capability with MultiSite option
Мрежови интерфейси	1x Ethernet (RJ-45) 100/1000 Mbps for LAN, 3x Ethernet (RJ-45) 100/1000 Mbps PoE (802.3af) port with a power budget of 15.4W per port; Wi-Fi 6/6E, 802.11a/b/g/n/ac/ax2.4/5/6 GHz, 2x2 Multiple-Input Multiple Output (MIMO)
Други интерфейси	Bluetooth and BT Low Energy; 2x USB 2.0 type A; 1x micro-USB port; Factory reset pinhole; Safety key slot (Kensington safety slot)
Консумация, W	100 to 240 VAC, 50/60 Hz; Average 20 W; Networked standby 12,7 W; Standby 1 W
Размери (Ш, Д, В), cm	96 x 9 x 11 cm

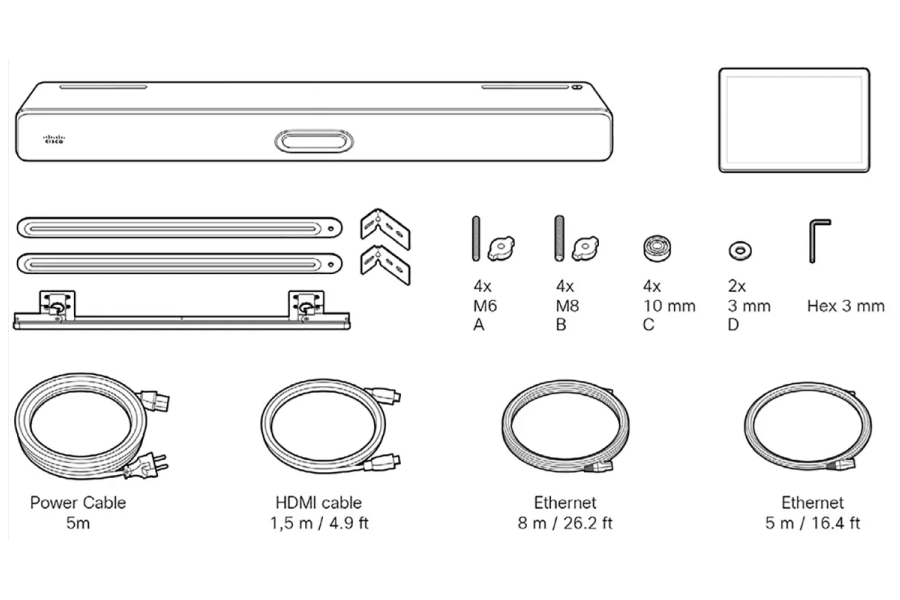

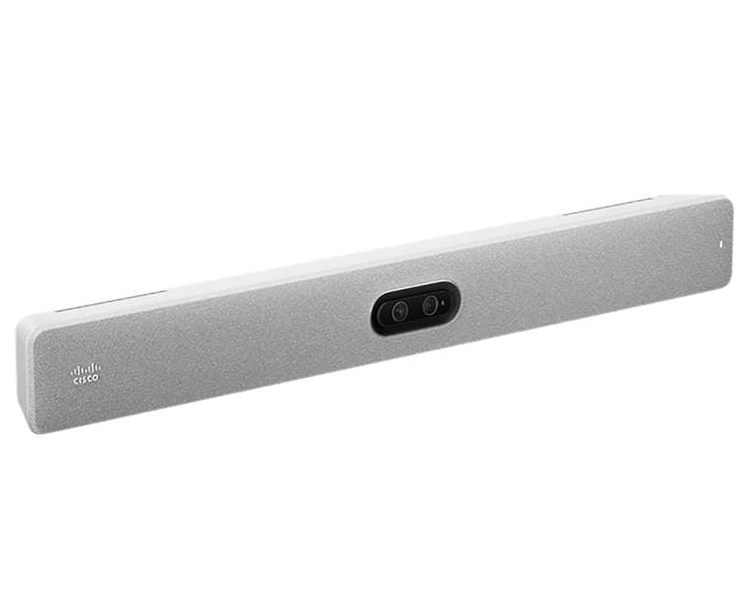

Други	Room Bar Pro unit (First Light or Carbon Black) with built-in codec, dual cameras, speakers, and microphones
Гаранция	3 месеца
