P/N: 02353AHX-003

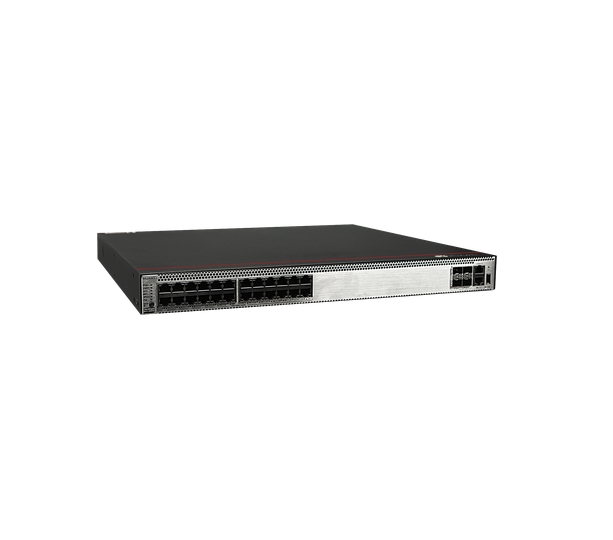

Комутатор, Huawei S5731-S24P4X (2410/100/1000BASE-T ports, 410GE SFP+ ports, PoE+, without power module)

HUAWEI Enterprise Networking >> Huawei S5731-S24P4X (24*10/100/1000BASE-T ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	PoE+
Uplink портове	4x10GE SFP
Свободни (10GB) слотове	No
Управление	SNMP v1/v2c/v3; RMON; Smart Application Control (SAC); Web-based NMS; System logs and alarms of different levels; GVRP; MUX VLAN; NetStream; Intelligent O&M
Stackable	Intelligent Stack (iStack), with up to 9 member switches in a stack
Fans	Pluggable fans
Захранване	1+1 power backup; Maximum power consumption: 121W (without PD), 977W (with PD, PD power consumption of 740W)
Routing	Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps	672 Gbit/s
Пропускателна способност, Mpps	96 Mpps
MAC адреси	32000 MAC address table size
VLAN (брой, стандарти)	4094 VLANs; Guest VLAN and voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; VLAN mapping
QoS	8 queues per port; Packet redirection; Port-based traffic policing and two-rate three-color CAR; DRR, SP and DRR+SP queue scheduling algorithms; WRED; Re-marking of the 802.1p and DSCP fields of packets; Queue-based rate limiting and shaping on ports
L2 мрежови стандарти	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag
L3 мрежови стандарти	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy; Up to 16K FIBv4 entries; Up to 8K FIBv4 entries
IPv6 functionality	Up to 8K ND entries; PMTU; IPv6 Ping, IPv6 Tracert, and IPv6 Telnet; ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types; MLDv1/v2; IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Сигурност	DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; MFF; IEEE 802.1x authentication and limit on the number of users on a port; NAC; SSH V2.0; HTTPS; CPU protection; Secure Boot; IPSec; ECA
Размери (Ш, Д, В), mm	442 x 420 x 44 mm
Опция за монтаж	Rackmount
Гаранция	12 месеца
