P/N: 02352FSG-007

Комутатор, Huawei S6730-H24X6C (2410GE SFP+ ports, 640GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)

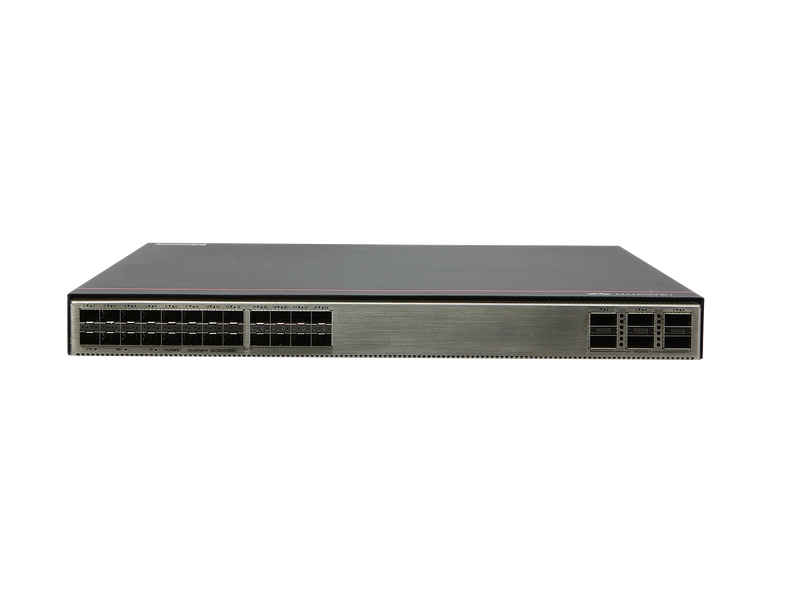

Huawei S6730-H24X6C (24*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)

HUAWEI Enterprise Networking >> Huawei S6730-H24X6C (24*10GE SFP+ ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	30
Основни портове, тип	24x10GE SFP
Power Over Ethernet (PoE)	No
Uplink портове	6x40G/100G QSFP28
Свободни (10GB) слотове	No
Управление	Cloud-based management; Virtual cable test; SNMP v1/v2c/v3; RMON; Web-based NMS; System logs and alarms of different severities; GVRP; MUX VLAN; NetStream; Telemetry
Stackable	Intelligent stack (iStack)
Fans	4 (fan modules are pluggable)
Захранване	Dual pluggable power modules, 1+1 power backup, equipped power modules by default not available; Maximum power consumption: 231W (220V input), 254W (90V input)
Routing	Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps	2.4 Tbit/s
Пропускателна способност, Mpps	420 Mpps
MAC адреси	128000 MAC address table size
VLAN (брой, стандарти)	4K VLANs; Guest VLANs and voice VLANs; GVRP; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; VLAN mapping
QoS	8 queues on each port; DRR, SP, and DRR+SP queue scheduling algorithms; Port-based traffic policing and two-rate three-color CAR; WRED; Re-marking of the 802.1p and DSCP fields of packets; Queue-based rate limiting and shaping on ports; Packet redirection
L2 мрежови стандарти	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ah, IEEE 802.1ag
L3 мрежови стандарти	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy; Up to 192K FIBv4 entries; Up to 80K FIBv6 entries
IPv6 functionality	Neighbor Discover (ND); PMTU; IPv6 Ping, IPv6 Tracert, IPv6 Telnet; MLDv1/v2; ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types; IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Сигурност	DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; IEEE 802.1X authentication and limit on the number of users on a port; SSH V2.0; HTTPS; CPU protection; IPSec for management packet encryption
Размери (Ш, Д, В), mm	442 x 420 x 44 mm
Опция за монтаж	Rackmount
Гаранция	12 месеца
