P/N: 90-MXBL70-A0UAYZ

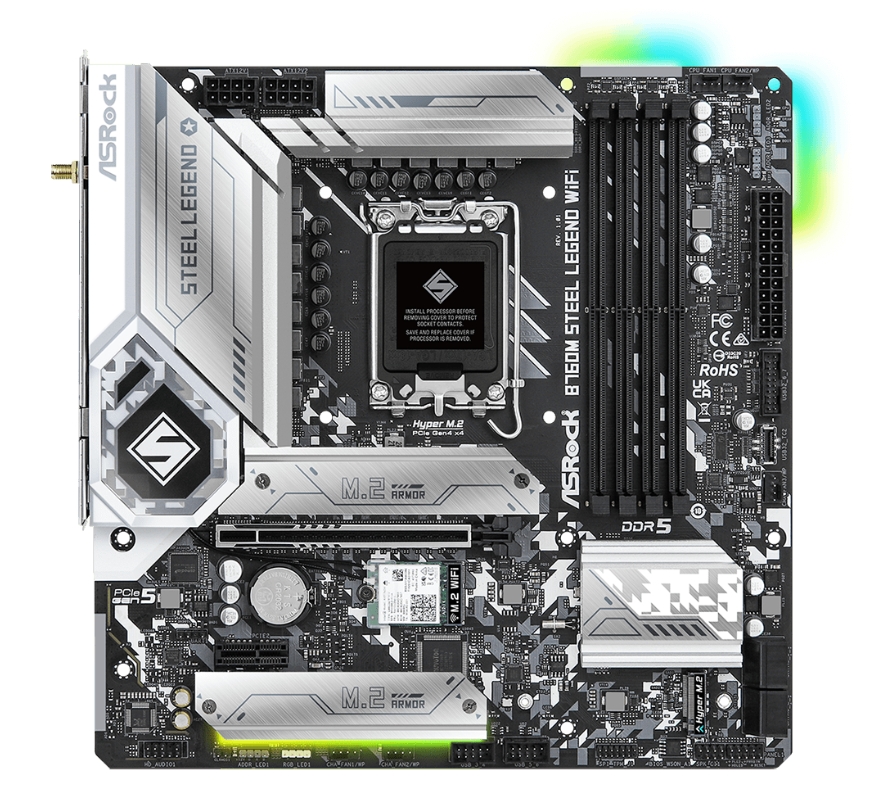

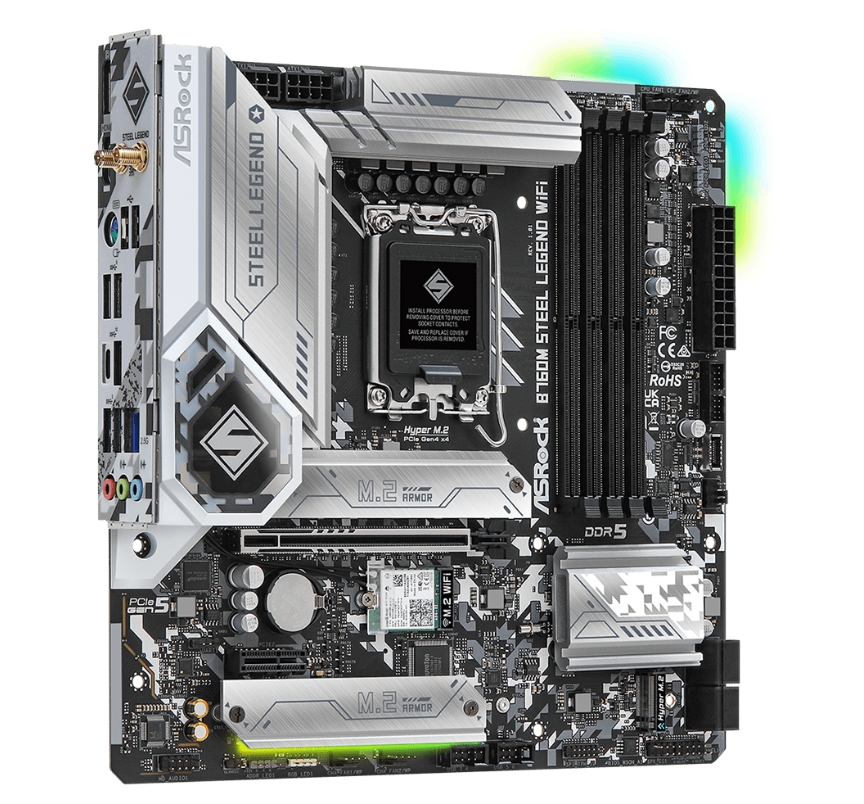

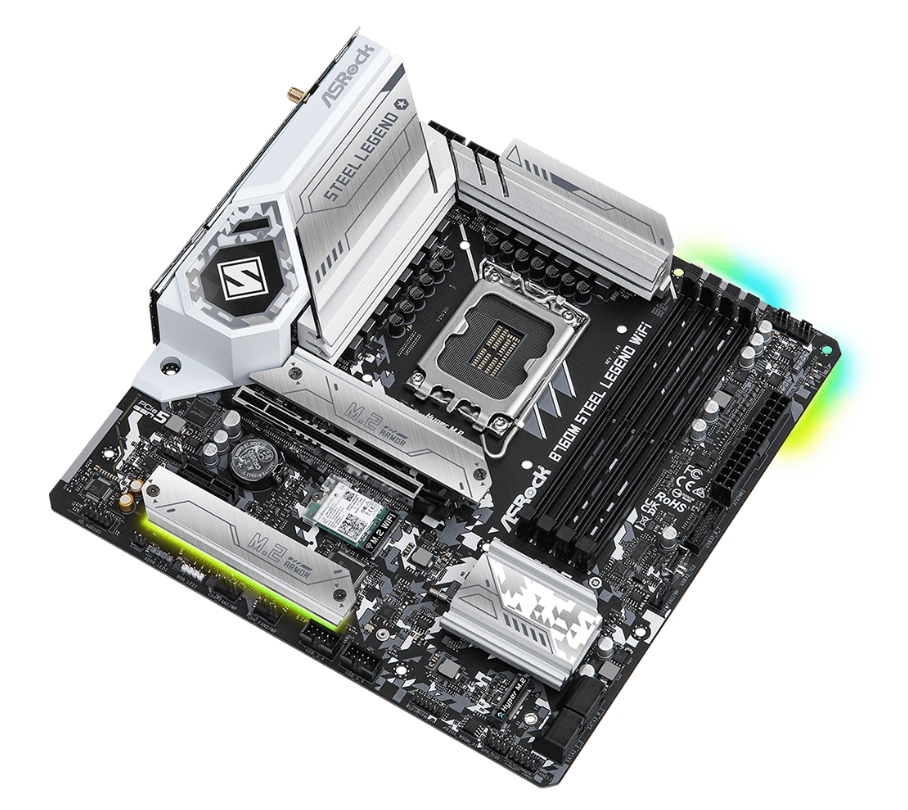

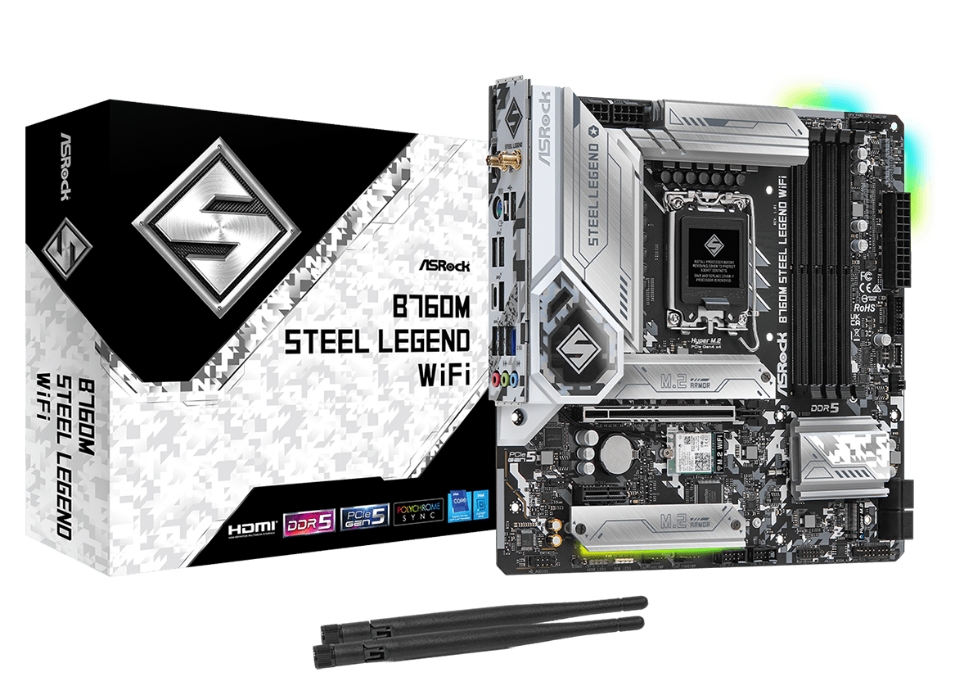

Дънна платка, Asrock B760M Steel Legend Wi-Fi

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Серия	Steel Legend
Процесор	Intel 1700
Чипсет	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Памет	DDR5
Брой слотове	4 DIMM Slots, Max. capacity of system memory: 192GB
Аудио	7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Безжична мрежа	802.11ax Wi-Fi 6E Module
Конектори	eDP Signal Connector, SPI TPM Header, 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, Front Panel Audio Connector, 2 x USB 2.0 Headers, USB 3.2 Gen1 Header, Front Panel Type C USB 3.2 Gen2 Header
Слотове	CPU: PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset: PCIe 4.0 x1 Slot (PCIE2)
M.2 слот	M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

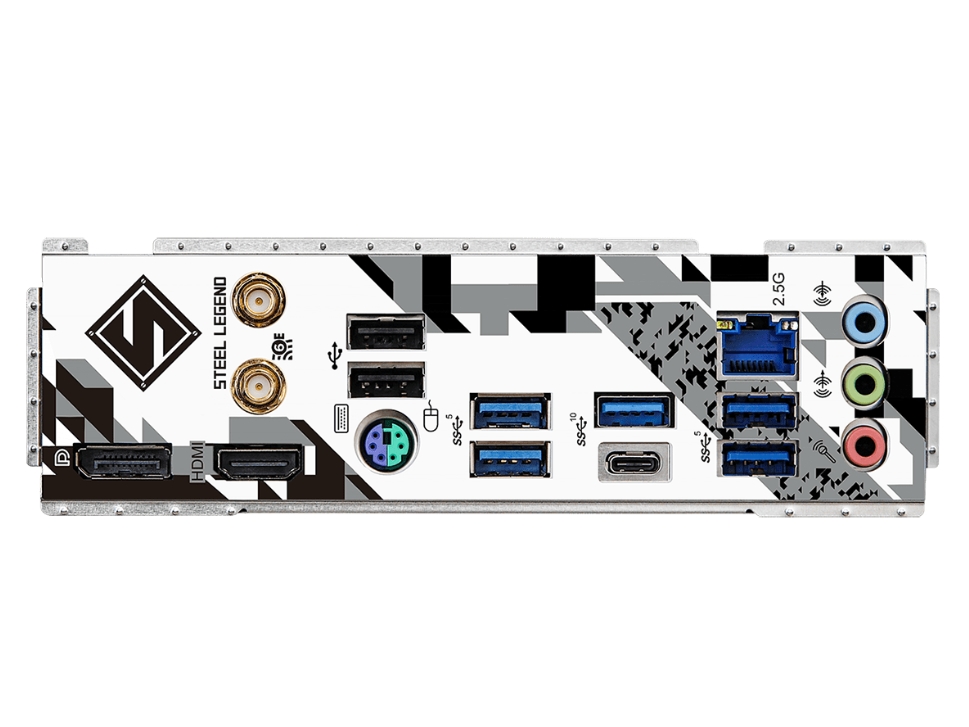

Интерфейс	2 x Antenna Ports, PS/2 Mouse/Keyboard Port, HDMI Port, DisplayPort 1.4, USB 3.2 Gen2 Type-A Port, USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Софтуер	ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Операционна система	Microsoft Windows 10 64-bit / 11 64-bit
Форм-фактор	Micro ATX Form Factor: 24.4 cm x 24.4 cm
Специални функции	Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, EZ Update, EZ Troubleshooter
Гаранция	36 месеца
