P/N: 90-MXBKD0-A0UAYZ

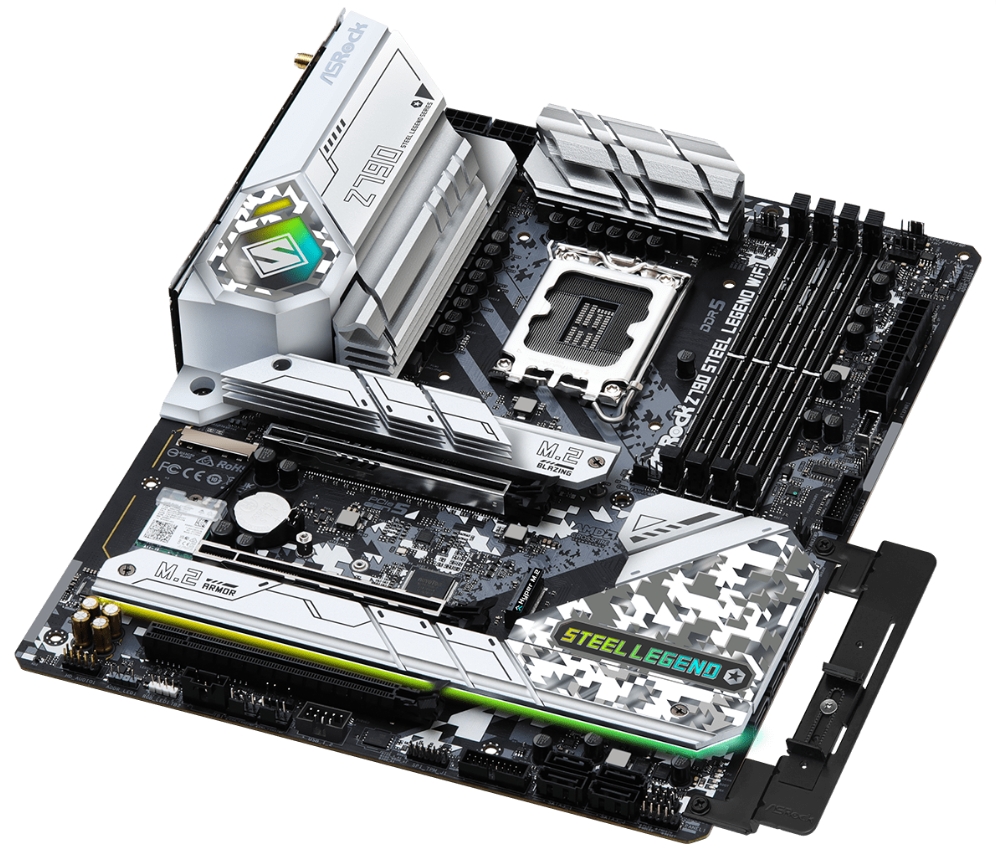

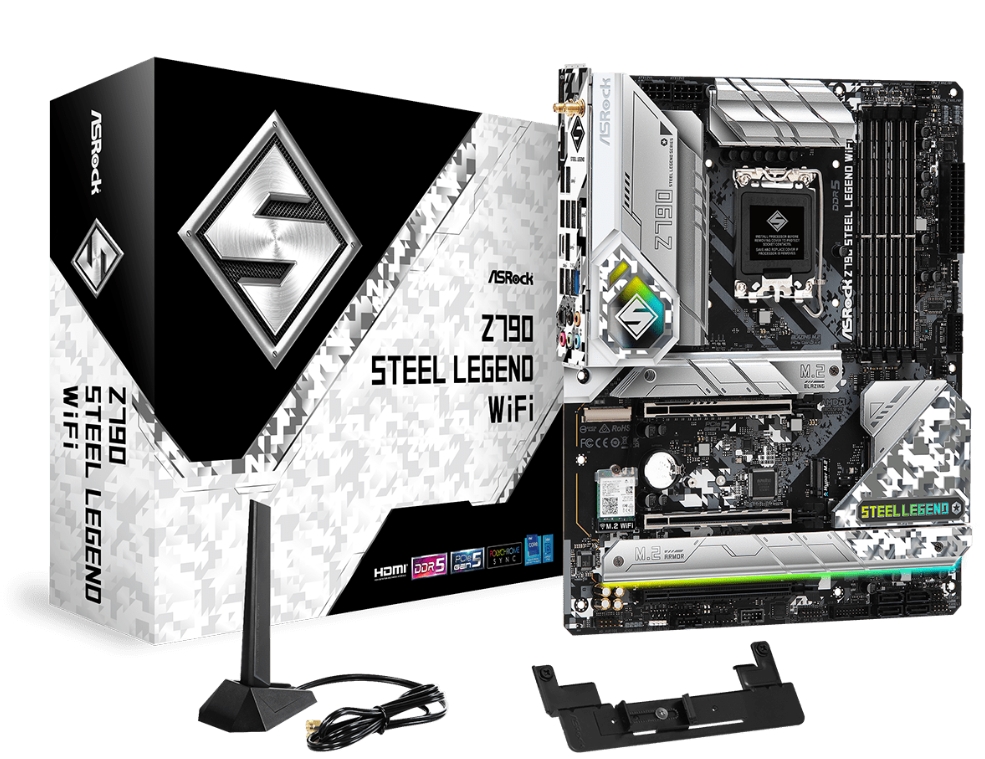

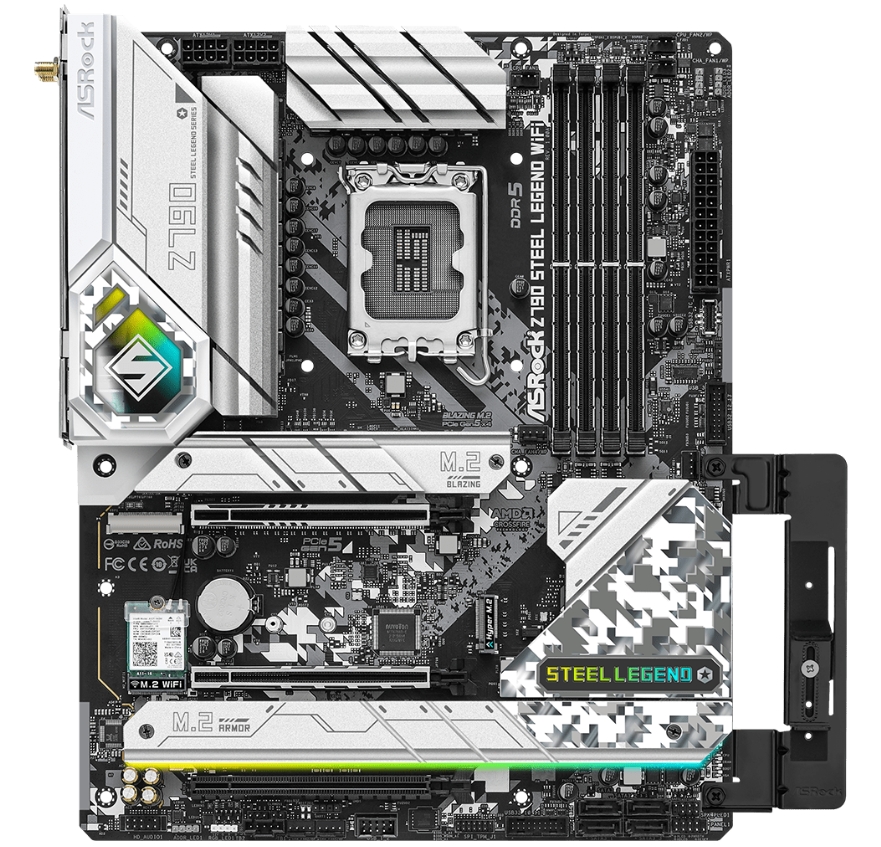

Дънна платка, Asrock Z790 Steel Legend Wi-Fi

ASROCK компоненти за компютри >> Asrock Z790 Steel Legend Wi-Fi Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Серия	Steel Legend
Процесор	Intel 1700
Чипсет	Intel Z790
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Памет	DDR5
Брой слотове	4 DIMM Slots, Max. capacity of system memory: 128GB
Аудио	7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Безжична мрежа	802.11ax Wi-Fi 6E Module, Supports Bluetooth + High speed class II, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports MU-MIMO
Конектори	SPI TPM Header, eDP Signal Connector, Power LED and Speaker Header, 24 pin ATX Power Connector, 8 pin 12V Power Connectors, Front Panel Audio Connector, Thunderbolt AIC Connector (5-pin), 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, Front Panel Type C
Слотове	CPU: PCIe 5.0 x16 Slot (PCIE1), Chipset: PCIe 4.0 x16 Slot (PCIE2), PCIe 3.0 x16 Slot (PCIE3)
M.2 слот	M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

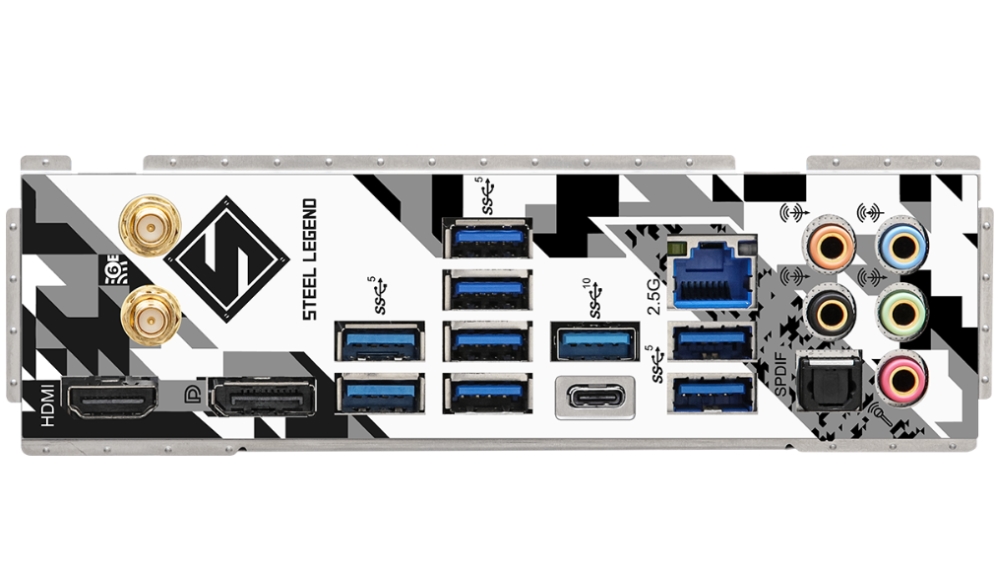

Интерфейс	2 x Antenna Ports, HDMI Port, DisplayPort 1.4, Optical SPDIF Out Port, USB 3.2 Gen2 Type-A Port, USB 3.2 Gen2 Type-C Port, 8 x USB 3.2 Gen1 Ports, RJ-45 LAN Port, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Софтуер	ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Операционна система	Microsoft Windows 10 64-bit / 11 64-bit
Форм-фактор	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Специални функции	Superb Productivity, Rock-Solid Durability, EZ Update
Гаранция	36 месеца
