P/N: SPM-CT-E(100A)

Аксесоар, Growatt SPM-CT-E(100A) Smart Meter Device

12

Характеристики

Х-ка 1 Power grid type: 1P2W, Input voltage: 184 Vac ~ 276 Vac (L-N)
Х-ка 2 Frequency: 50/60Hz (45~56)Hz
Х-ка 3 Voltage/Current Accuracy: 0.5 %, Power Accuracy: 1 %, Frequency Accuracy: 0.2 %
Х-ка 4 Interface: RS485, Baud rate: 9600, Communication protocol: Modbus-RTU
Х-ка 5 Environment protection rating: IP51, Operating temperature range: -25 °C to 55 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 0 - 90% (non-condensing)
Х-ка 6 Mounting type: DIN rail 35mm; Dimensions (WxDxH): 118 x 64 x 18 mm, Weight: 80 g

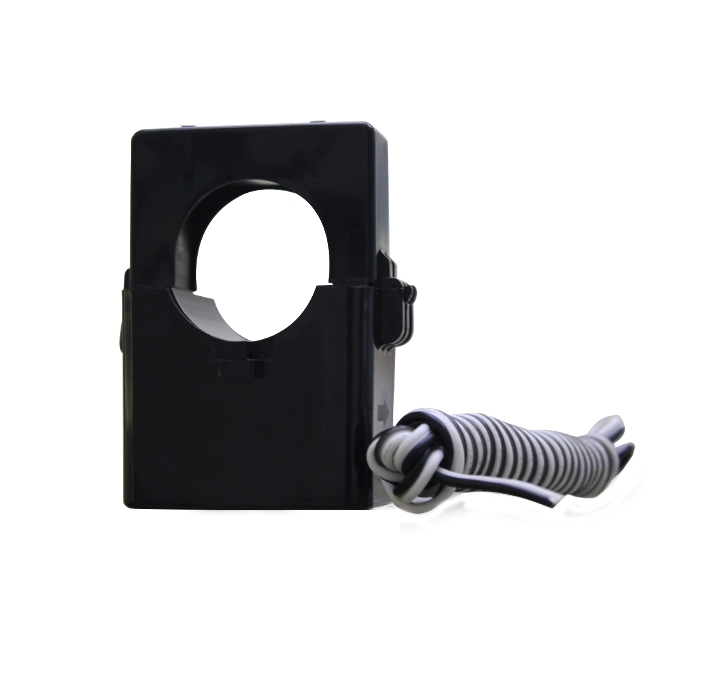

Х-ка 7 Accessories: 1CT 100A/40mA (5m)/ Fi 16mm
Гаранция 12 месеца

EAN: -
