P/N: IE-3300-8T2S-A

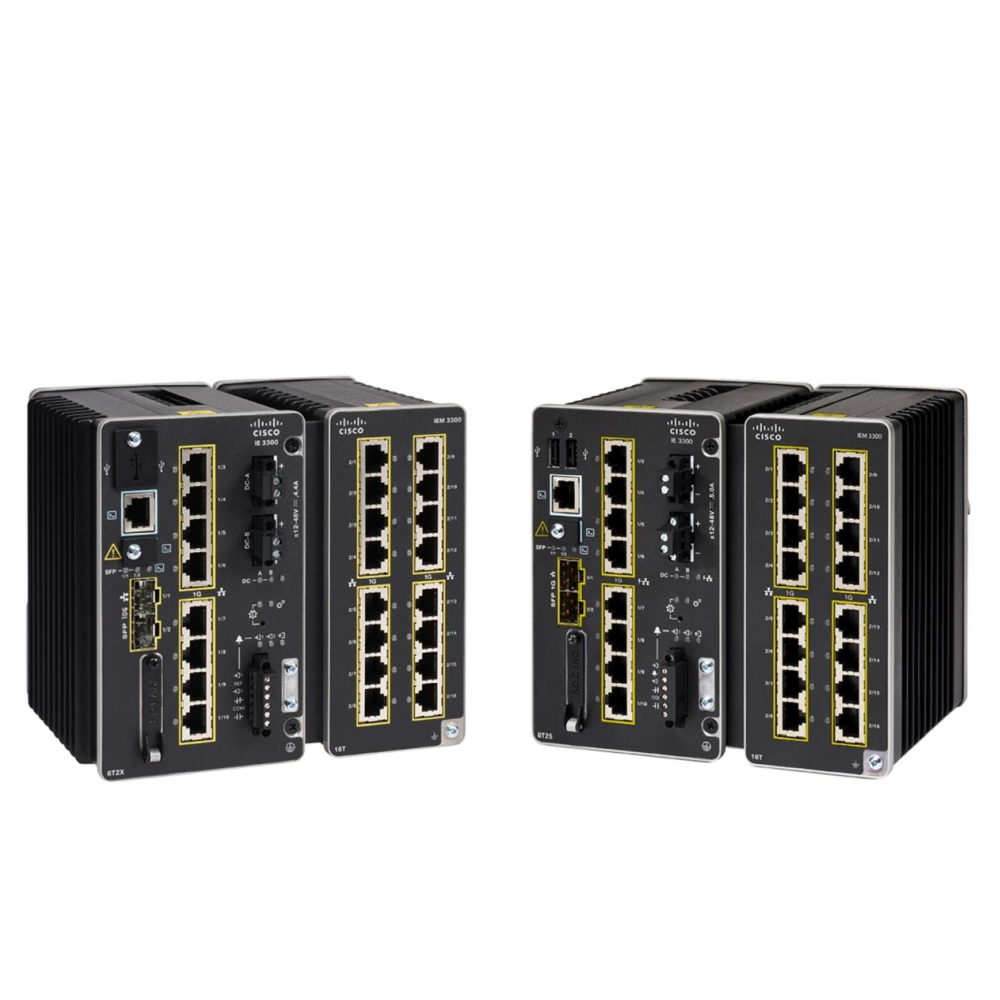

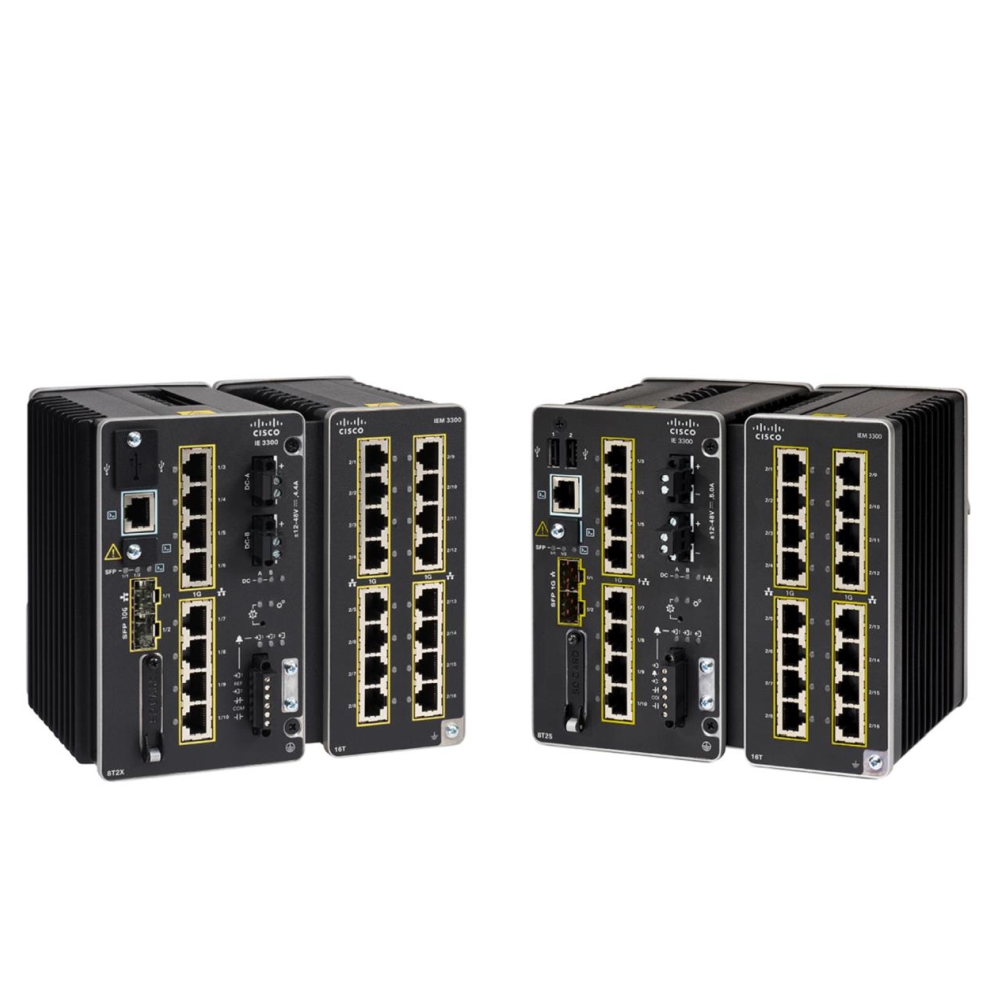

Комутатор, Cisco Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, NA

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst IE3300 with 8 GE Copper and 2 GE SFP Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Modular
Общ брой портове	10
Основни портове, тип	8x GE copper ports (10/100/1000 RJ45 Copper ports)
Power Over Ethernet (PoE)	-
Uplink портове	2x GE SFP ports (100/1000 SFP ports)
Свободни (10GB) слотове	Single or double wide expansion modules add 2 or 3 inches to the system width
Управление	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Stackable	-
Fans	Fanless, convection-cooled
Захранване	Redundant DC input voltage: 9.6 to 60VDC, Maximum Input current: 3.8A, Power consumption: 23W
Routing	Layer 3 routing: Inter-VLAN routing, Static routing
Памет (Flash, RAM)	DRAM - 2 GB, Flash [User Accessible] - 1.5 GB, Optional Removable storage: USB, SD card (capacity: up to 4 GB)
Капацитет за маршрутизиране/превключване, Gbps	Line rate for all ports and all packet sizes
MAC адреси	8K
VLAN (брой, стандарти)	voice VLAN, guest VLAN, VLAN: 256; IEEE 802.1q VLAN
QoS	Ingress policing, rate limit, egress queuing and shaping, auto QoS
Сигурност	Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, MAC authentication bypass, storm control, SCP, SSH, SNMPv3, TACACS+, RADIUS, MAC address notific., BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099, FNF, MACsec 256
Мрежови стандарти	IEEE 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.1ab, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2
Протоколи за индустриална автоматизация	CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Работна температура	-40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure), -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure), +85°C (type tested for 16 hours)
Размери (Ш, Д, В), mm	91 x 135 x 152 mm
Опция за монтаж	DIN rail
Други	Network Advantage (IP routing Protocols - OSPF, BGP, RIP, ISIS, EIGRP, PBR, VRRP, HSRP; Virtualization - Vrf-lite, IP Multicast), Console ports: 1 RS-232 (via RJ-45), 1 USB Mini Type B; Layer 2 switching
Гаранция	60 месеца
