P/N: IE-1000-8P2S-LM

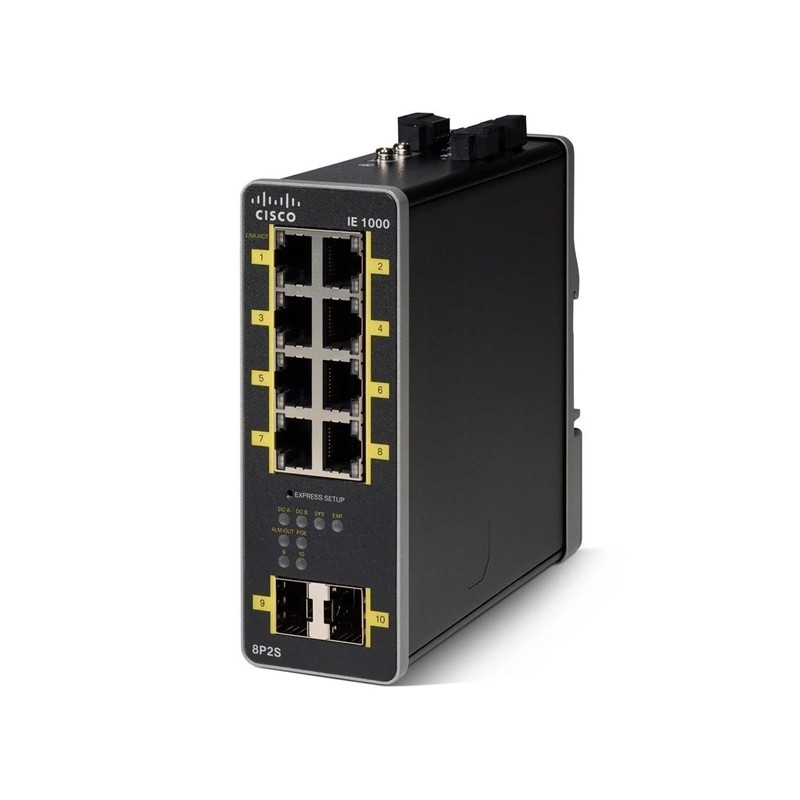

Комутатор, Cisco IE1000 with 8 FE Copper PoE+ ports and 2 GE SFP uplinks

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE1000 with 8 FE Copper PoE+ ports and 2 GE SFP uplinks Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	10
Основни портове, тип	8x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)	8x PoE+, PoE Budget: 180W, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Uplink портове	2x SFP (100Base-FX MMF (2 km)—TBD with engineer input)
Свободни (10GB) слотове	-
Управление	Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog - MIB-II; Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
Stackable	-
Fans	-
Захранване	External (Input Power Voltage: 48-54 V)
Routing	-
Памет (Flash, RAM)	DRAM: 128 MB DDR2 without ECC, Onboard flash memory: 160 MB
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 2.8 Gbps; Maximum Switching Bandwidth 5.6 Gbps
MAC адреси	Enables the IE1K
VLAN (брой, стандарти)	ICMP Vlans, IEEE 802.1q VLAN
Сигурност	Secure access; port-security; TACACS+ and RADIUS AAA Client: Security protocols to control access into networks; IEEE 802.1x security
Мрежови стандарти	IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s Multiple SpanningTrees; 802.1w Rapid SpanningTree; 802.1AB LLDP; 802.3ad (LACP; 802.3ah SMF/MMF only, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z; RFC
Протоколи за индустриална автоматизация	Ethernet/IP (CIP)
Работна температура	-40 C to +70 C (vented enclosure operating), -40 C to +60 C (sealed enclosure operating), -34 C to +75 C (fan or blower-equipped enclosure operating)
Размери (Ш, Д, В), mm	45.7 x 134 x 127 mm
Опция за монтаж	DIN rail
Гаранция	60 месеца
