НАЙ-ТЪРСЕНИ ПРОДУКТИ

P/N: C1000-48T-4G-L

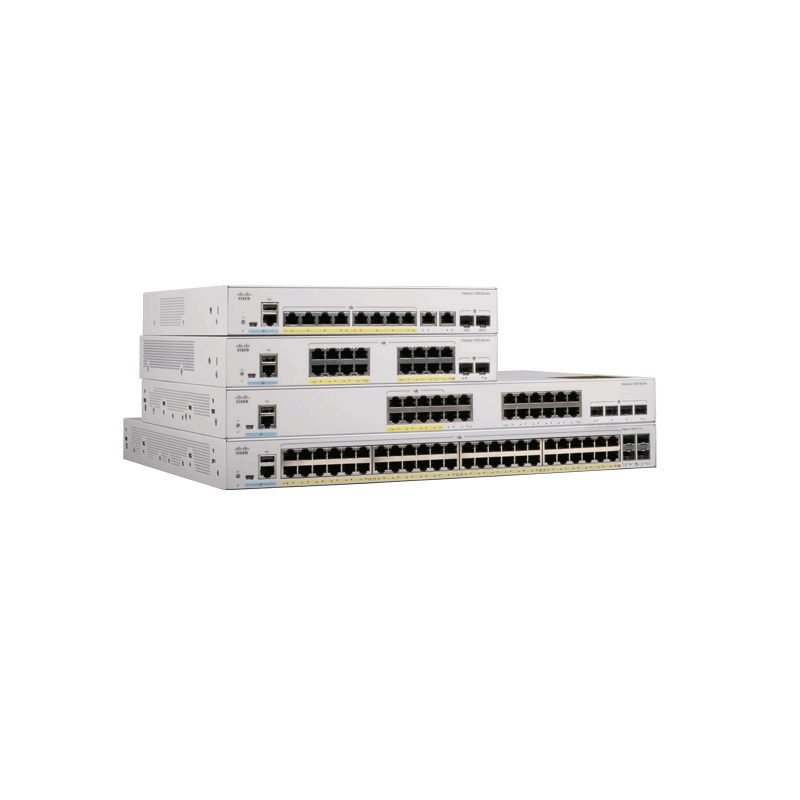

Комутатор, Cisco Catalyst 1000 48port GE, 4x1G SFP

60

Характеристики

Суич, тип Fixed Port
Общ брой портове 48
Основни портове, тип 10/100/1000Base-T
Power Over Ethernet (PoE) -
Uplink портове 4x SFP
Свободни (10GB) слотове -
Управление Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
Stackable -
Fans Compact fanless
Захранване Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Routing Static
Памет (Flash, RAM) 512MB DRAM, 256 MB Flash memory
Капацитет за маршрутизиране/превключване, Gbps 10/20 Gbps (Forwarding/Switching)
Пропускателна способност, Mpps 14.88 Mpps
MAC адреси 15 360
VLAN (брой, стандарти) Maximum active: 256; IDs available: 4094
QoS Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
L2 мрежови стандарти 802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
L3 мрежови стандарти -
IPv6 functionality IPv6 routing, Access Control Lists (ACLS)
Сигурност 802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
Размери (Ш, Д, В), mm 444.5 x 272.5 x 43.9
Опция за монтаж Rackmount
Други USB mini-B port, USB-A port for storage and Bluetooth console
Гаранция 60 месеца

EAN: -
