P/N: MS410-16-HW

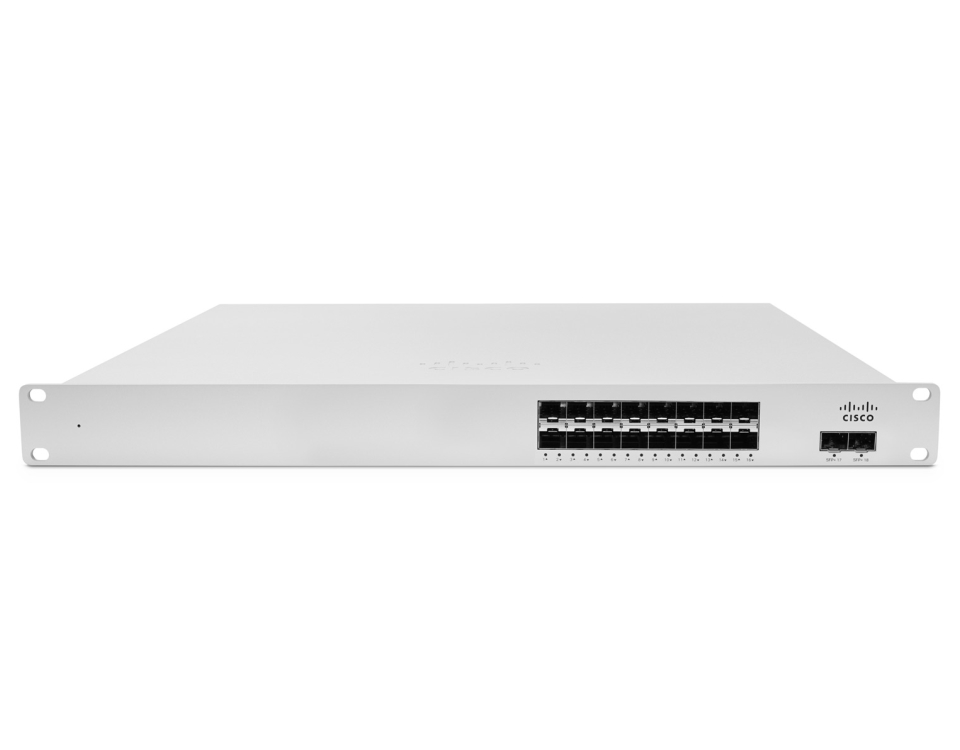

Комутатор, Cisco Meraki MS410-16 Cld-Mngd 16x GigE SFP Switch

Задължително е да се поръча лиценз!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS410-16 Cld-Mngd 16x GigE SFP Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	18
Основни портове, тип	16xSFP
Power Over Ethernet (PoE)	No
Uplink портове	2x10GE SFP
Свободни (10GB) слотове	No
Управление	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	2 x stacking ports; Physically stack up to 8 switches with 160 Gbps of stacking bandwidth; Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	Field-replaceable, hot-swappable fans
Захранване	Hot-swappable Power Supply Configuration; Supported Power Supply: 2 x 250W PSU (Single power supply (PSU) included. For redundancy, second PSU is sold separately)
Routing	Layer 3 Advanced
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	72 Gbps
MAC адреси	96000 MAC address table size
VLAN (брой, стандарти)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 мрежови стандарти	Static routing, OSFPv2, Multicast routing, Warm Spare (VRRP) - OSPF and Warm Spare do not operate concurrently, DHCP Server, DHCP Relay
IPv6 functionality	-
Сигурност	IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring; ACL support (IPv4 & IPv6) and MAC whitelisting; Single-Host/Multi-Domain/Multi-Host/Multi Authentication
Размери (Ш, Д, В), mm	485 x 517 x 44
Опция за монтаж	Rackmount
Други	RJ45 Management port
Гаранция	99 месеца
