P/N: J9821A

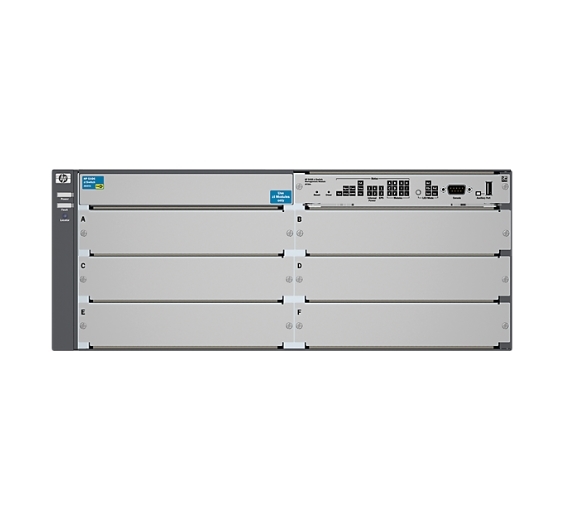

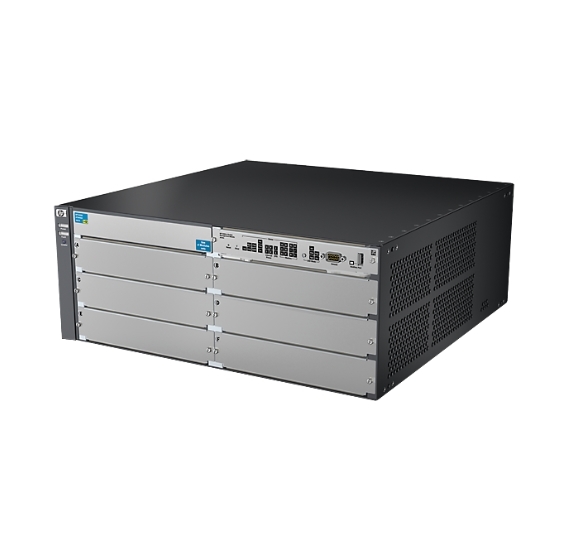

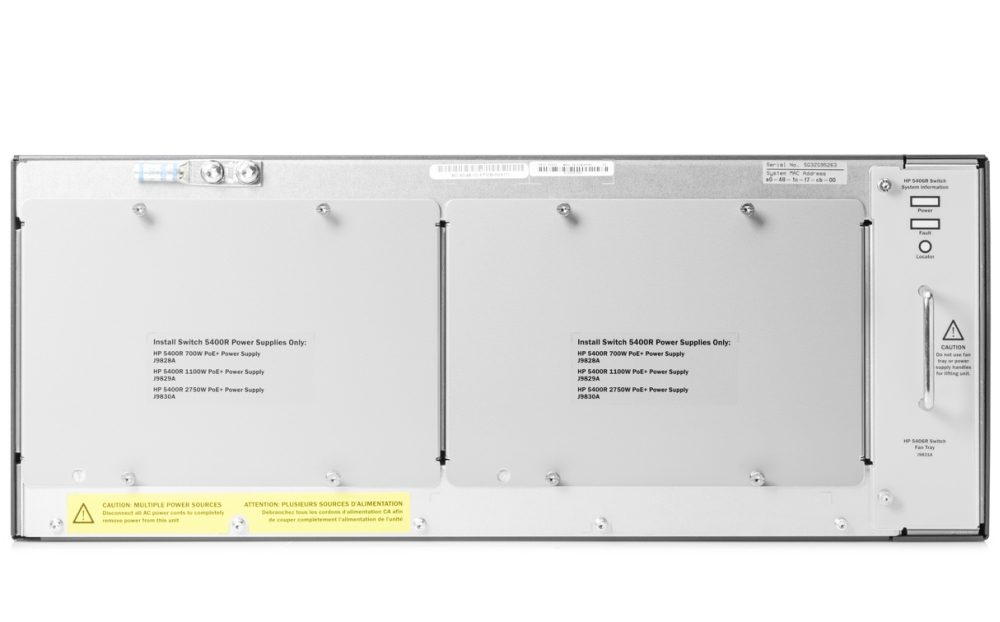

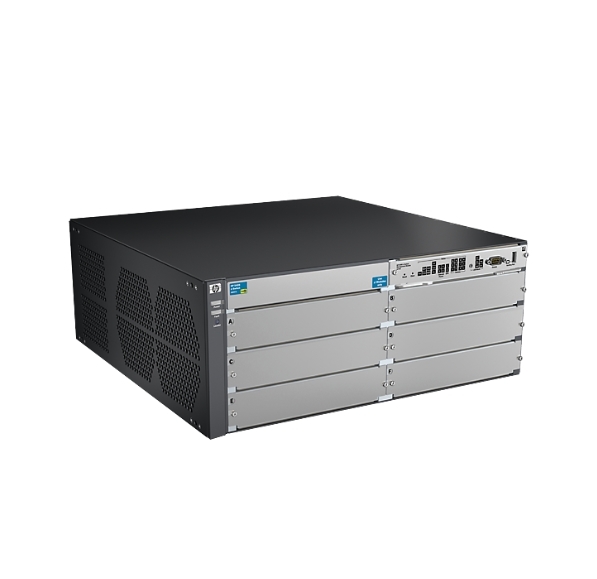

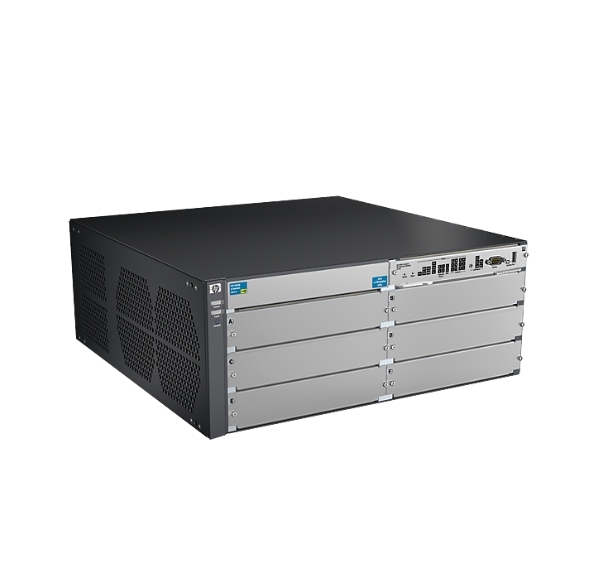

Комутатор, Aruba 5406R zl2 Switch

HP мрежови продукти >> Aruba 5406R zl2 Switch Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Modular
Общ брой портове 0
Основни портове, тип 0
Power Over Ethernet (PoE) No
Uplink портове 0
Свободни (10GB) слотове 6 open module slot; Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Управление IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial rs-232c or micro usb)
Stackable Yes
Fans 1 fan tray slot (Includes: 1 x J9831A)
Захранване 2 power supply slots - 1 minimum power supply required (ordered separately)
Routing Layer 3 Advanced
Памет (Flash, RAM) Flash Memory: 16 MB, RAM: 4 GB DDR3 SODIMM
Капацитет за маршрутизиране/превключване, Gbps 960 Gbps
Пропускателна способност, Mpps 571.4 Mpps
MAC адреси 64000 MAC address table size
VLAN (брой, стандарти) VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously; IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs
QoS Advanced classifier-based QoS, Traffic prioritization, Bandwidth shaping, Class of service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1X, IEEE 802.1AE, IEEE 802.3az
L3 мрежови стандарти Static IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing, OSPF: provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
IPv6 functionality IPv6 host: Enables switches to be managed in an IPv6 network; Dual stack (IPv4 and IPv6); IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic; IPv6 routing: supports static and OSPFv3 routing protocols
Сигурност Switch CPU protection: provides automatic protection against malicious network traffic trying to shut down the switch; Virus throttling: detects traffic patterns typical of WORM-type viruses
Размери (Ш, Д, В), mm 445 x 451 x 175
Опция за монтаж Rackmount, 4U Rack
Гаранция 99 месеца

EAN: -
