P/N: DSS-200G-10MP

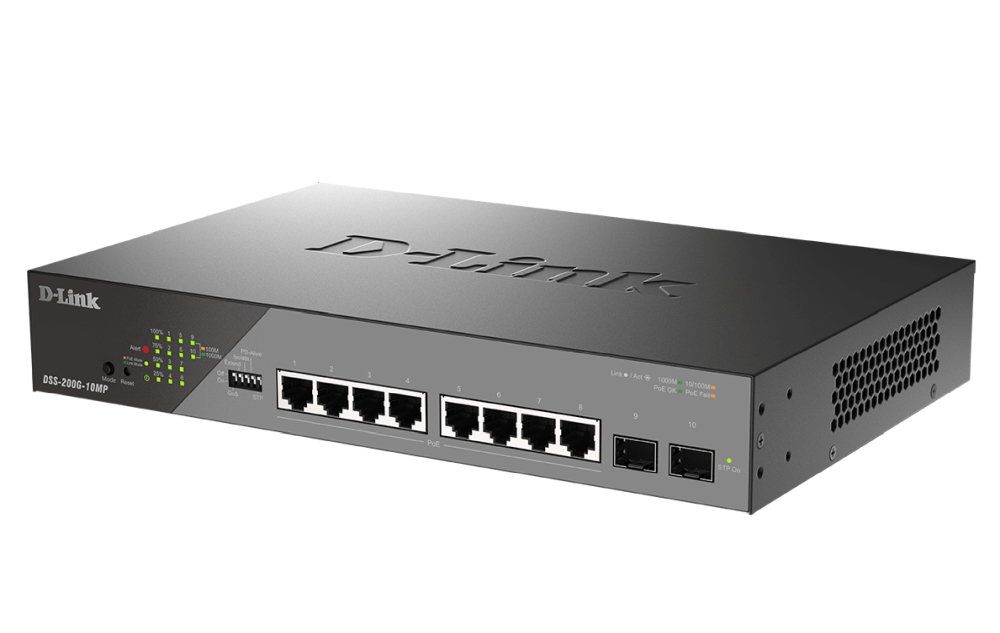

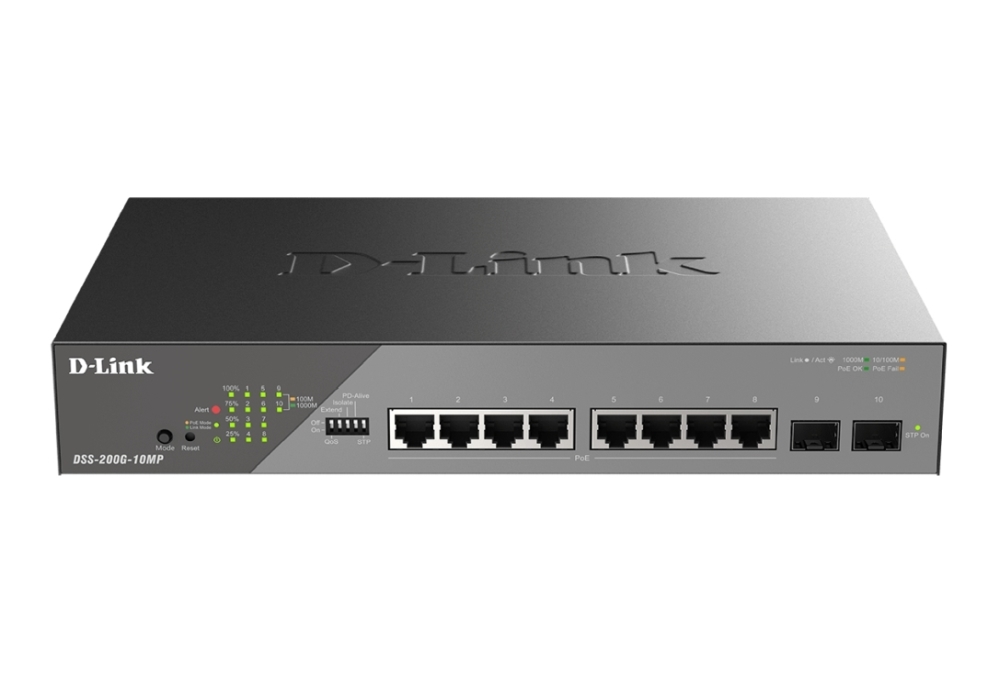

Commutator/ Switch, D-Link 10-Port Gigabit Ethernet PoE+ Surveillance Switch

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af/at PoE Standard; Ports 1 to 8 PoE Capable Ports; PoE Power Budget: 130 W
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web-based GUI (Supports IPv4/IPv6)
Stackable	No
Fans	Fanless

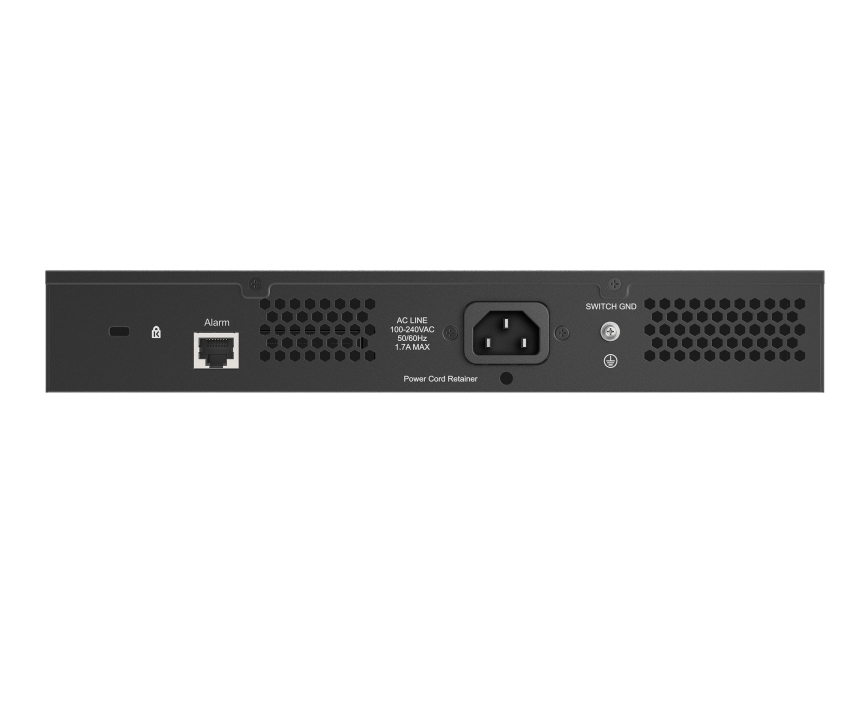

Power supply	Internal power supply: 100 to 240 V AC, 50/60 Hz; Maximum Power Consumption: 160.2 W (PoE on), 9.63 W (PoE off)
Routing	Layer 2 Only
Memory (Flash, RAM)	Flash Memory: 32 MB
Routing/Switching capacity, Gbps	20 Gbps
Throughput, Mpps	14.88 Mpps
MAC addresses	8000 MAC address table size
VLAN (number, standards)	Port-based VLAN, 802.1Q Tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, VLAN Group: Supports 128 static VLAN groups, Max. 4094 VIDs
QoS	802.1p Quality of Service, 4 queues per port, Queue Handling (Strict, Weighted Round Robin (WRR)), Port-based Bandwidth Control (Rate Limiting) - Ingress: 16 Kbps, Egress: 16 Kbps
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az
L3 network standards	-
IPv6 functionality	-
Security	D-Link Safeguard, Traffic Segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS Attack Prevention, SSL
Dimensions (W, D, H), mm	280 x 180 x 44 mm
Мounting option	Desktop
Warranty	60 months
