НАЙ-ТЪРСЕНИ ПРОДУКТИ

P/N: TPM-CT-E(250A)

Аксесоар, Growatt TPM-CT-E(250A) Smart Meter Device

12

Характеристики

Х-ка 1 Power grid type: 3P4W, Input voltage: 173 Vac ~ 480 Vac (L-L)
Х-ка 2 Frequency: 50/60Hz (45~56)Hz
Х-ка 3 Voltage/Current Accuracy: 0.5 %, Power Accuracy: 1 %, Frequency Accuracy: 0.2 %
Х-ка 4 Interface: RS485, Baud rate: 9600, Communication protocol: Modbus-RTU
Х-ка 5 Environment protection rating: IP51, Operating temperature range: -25 °C to 55 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 0 - 90% (non-condensing)
Х-ка 6 Mounting type: DIN rail 35mm; Dimensions (WxDxH): 95 x 72 x 65 mm, Weight: 280 g

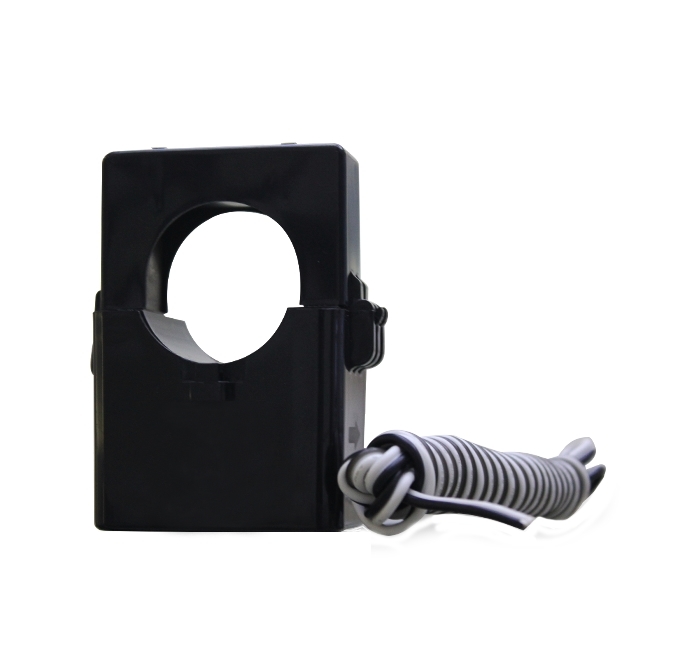

Х-ка 7 Accessories: 3CT 250A/40mA (5m)/ Fi 24mm
Гаранция 12 месеца

EAN: -
