P/N: JL322AR

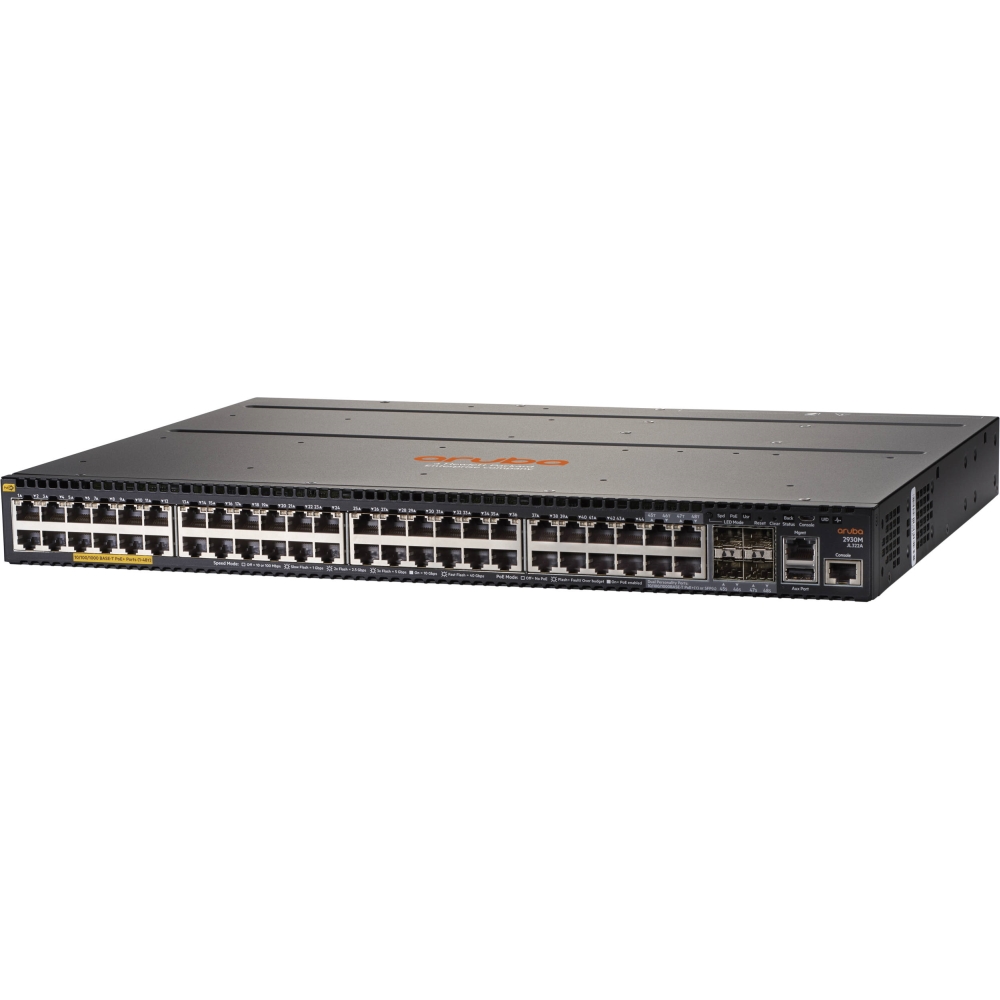

Комутатор, Aruba 2930M 48G PoE+ 1-slot Switch - Demo Equipment

За цена Сравни

HP мрежови продукти >> Aruba 2930M 48G PoE+ 1-slot Switch - Demo Equipment Препоръчителен сервиз

Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg

Характеристики

Суич, тип	Modular
Общ брой портове	48
Основни портове, тип	44x10/100/1000BaseT PoE+; 4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports
Power Over Ethernet (PoE)	IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
Uplink портове	1 open uplink module slot
Свободни (10GB) слотове	-
Управление	Aruba AirWave Network Management, Aruba Central, IMC - Intelligent Management Center, Command-line interface, Web browser, Config menu, SNMP manager, Telnet, RMON1, FTP, Out-of-band management (serial RS-232C or micro USB)
Stackable	1 stacking module slot
Fans	1 fan tray slot
Захранване	2 Power Supply Slots (power supplies not included)
Routing	Layer 3 Advansed
Памет (Flash, RAM)	1 GB DDR3 SDRAM; Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress; 4 GB eMMC
Капацитет за маршрутизиране/превключване, Gbps	176 Gbps (switching), Switching Capacity (Including Stacking): 276 Gbps
Пропускателна способност, Mpps	Up to 112 Mpps
MAC адреси	32768 MAC addres table size
VLAN (брой, стандарти)	IEEE 802.1Q (4094 VLAN IDs), IEEE 802.1v, IEEE 802.1v, Rapid Per-VLAN Spanning Tree (RPVST+, VxLAN encapsulation (tunneling) protocol
QoS	Traffic prioritization (IEEE 802.1p), Layer 4 prioritization based on TCP/UDP port numbers, Class of Service (CoS) sets the IEEE 802.1p priority tag, Rate limiting sets, Unknown Unicast Rate Limiting throttles unicast packets with unknown destination addr
L2 мрежови стандарти	IEEE802.1ad QinQ, IEEE 802.1Q (4094 VLAN IDs), IEEE 802.1v, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, IEEE 1588v2
L3 мрежови стандарти	Static IP, Routing Information Protocol (RIP), Access OSPF, Policy-based routing
IPv6 functionality	IPv6 host, Dual stack (IPv4 and IPv6) transitions from IPv4 to IPv6, MLD snooping, IPv6 ACL/QoS, IPV6 Routing, Security
Сигурност	UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 : A1:2010 +A12:2011 +A2:2013; IEC60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN60825-1:2007 /IEC 60825-1:2007 Class 1
Размери (Ш, Д, В), mm	VxLAN encapsulation (tunneling) protocol
Опция за монтаж	Rackmount
Гаранция	99 месеца
