P/N: JG933A

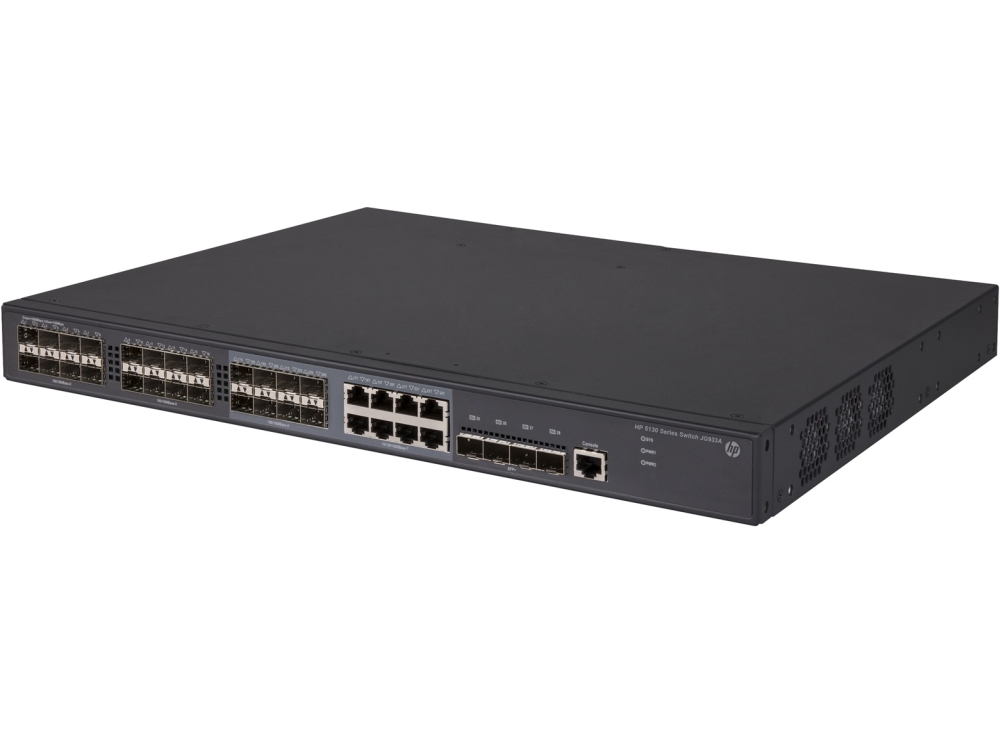

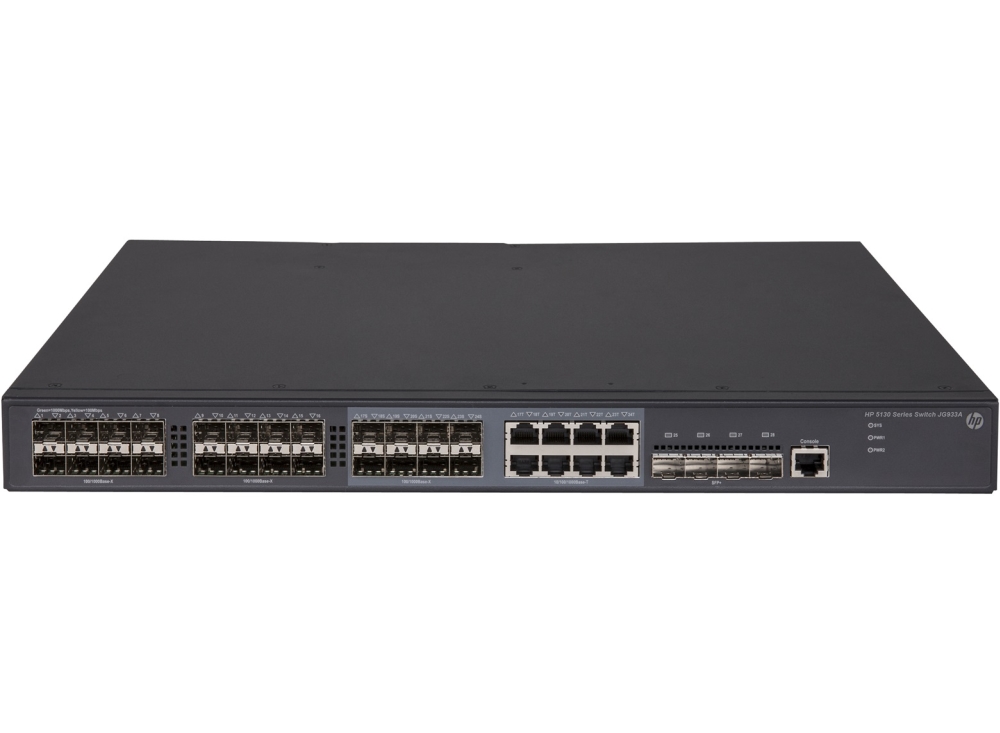

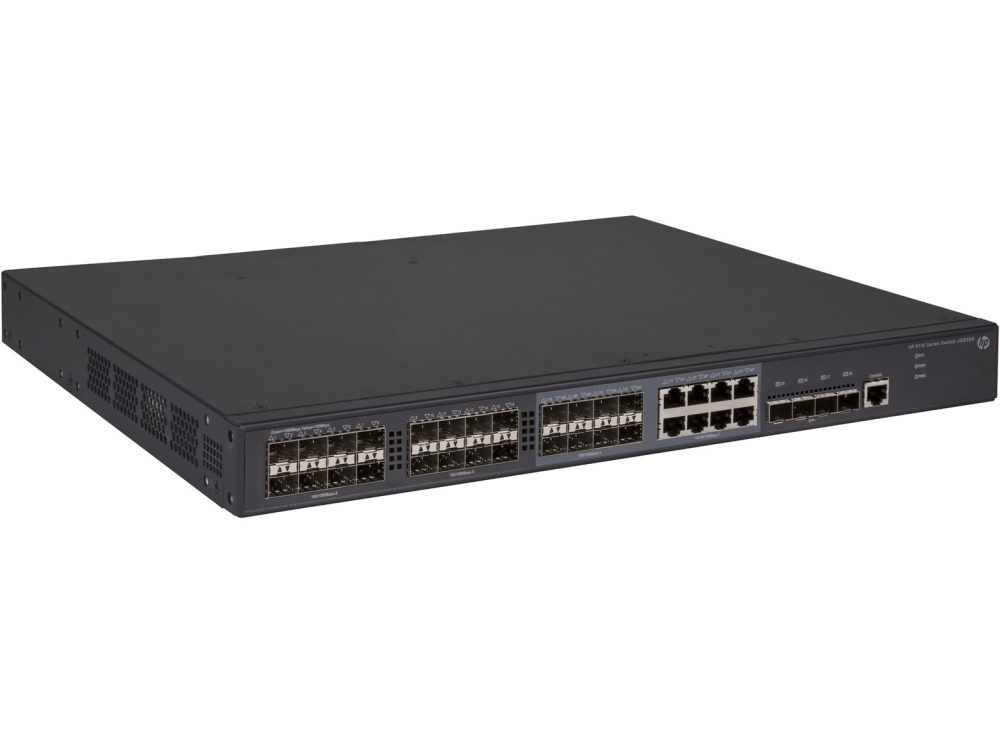

Комутатор, HP 5130-24G-SFP-4SFP+ EI Switch

За цена Сравни

HP мрежови продукти >> HP 5130-24G-SFP-4SFP+ EI Switch Препоръчителен сервиз

Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24xSFP
Power Over Ethernet (PoE)	No
Uplink портове	4x10GE SFP
Свободни (10GB) слотове	No
Управление	Remote configuration and management, Command authorization, Secure Web GUI, SNMPv1, v2c, and v3, Remote monitoring (RMON), IEEE 802.1AB Link Layer Discovery Protocol (LLDP), sFlow, Device Link Detection Protocol (DLDP), HP Intelligent Management Center
Stackable	Fixed 10G ports for high-speed stacking or uplinks
Fans	Low-speed fan: 47.1 dB, High-speed fan: 50.7 dB
Захранване	2 power supply slots (1 minimum power supply required)
Routing	Layer 3 RIP
Памет (Flash, RAM)	Flash Memory: 512 MB; RAM: 1 GB SDRAM
Капацитет за маршрутизиране/превключване, Gbps	128 Gbps
Пропускателна способност, Mpps	96 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	Support IEEE 802.1Q with 4,094 simultaneous VLAN IDs
QoS	Broadcast control; Advanced classifier-based QoS; Powerful QoS feature - supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR; Traffic policing
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
L3 мрежови стандарти	Static IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; loop protection
IPv6 functionality	IPv6 management:provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
Сигурност	Access control lists (ACLs); IEEE 802.1X: industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server; Identity-driven security and access control; Secure FTP; Secure management access
Размери (Ш, Д, В), mm	440 x 360 x 44
Опция за монтаж	Rackmount
Други	1 RJ-45 serial console port
Гаранция	99 месеца
