P/N: 90-MXBJD0-A0UAYZ

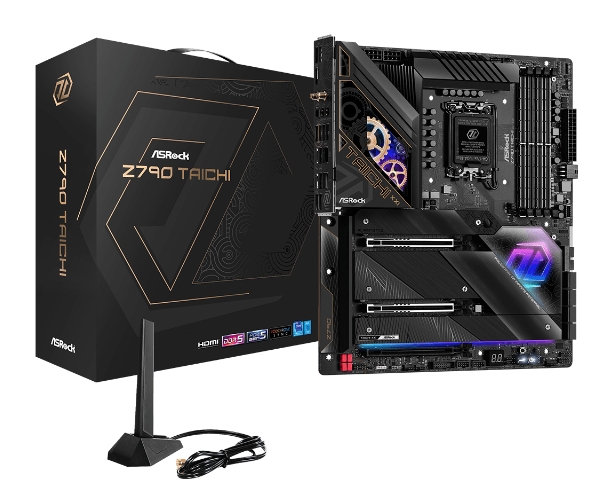

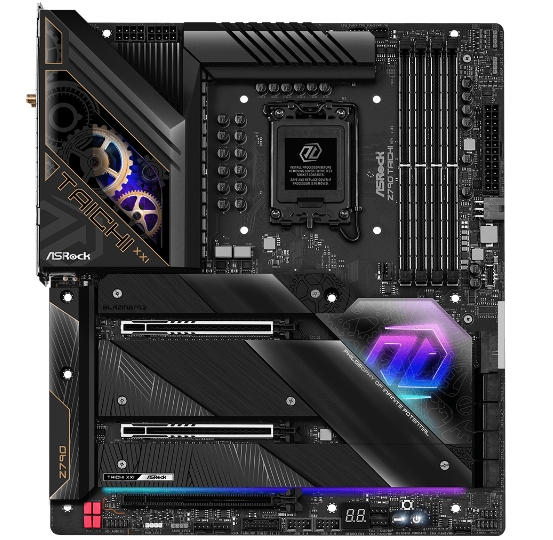

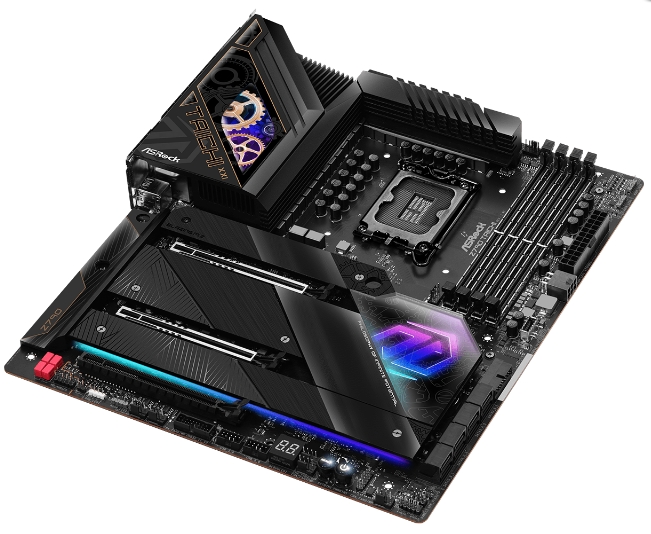

Дънна платка, Asrock Z790 Taichi

ASROCK компоненти за компютри >> Asrock Z790 Taichi Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Серия	Taichi
Процесор	Intel 1700
Чипсет	Intel Z790
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Памет	DDR5
Брой слотове	4 DIMM Slots, Max. capacity of system memory: 192GB
Аудио	5.1 CH HD Audio with Content Protection, WIMA Audio Capacitors, Individual PCB Layers for R/L Audio Channel, Impedance Sensing on Rear Out port, Nahimic Audio
Безжична мрежа	802.11ax Wi-Fi 6E Module
Конектори	24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 12V 6 pin Power Connector for Fast Charging, 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, Front Panel Type C USB 3.2 Gen2x2 Header, Clear CMOS Button, CPU Fan Connector
Слотове	CPU: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes; Chipset: PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

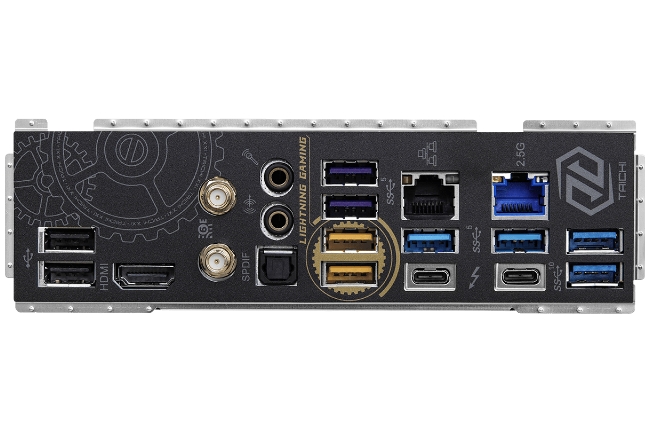

Интерфейс	2 x Antenna Ports, HDMI Port, Optical SPDIF Out Port, 2 x USB4 Thunderbolt 4 Type-C Ports, 2 x USB 3.2 Gen2 Type-A Port, 6 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 2 x RJ-45 LAN Ports, Microphone Input Jack (Gold Audio Jack), Line Out Jack
Софтуер	ASRock Motherboard Utility (A-Tuning), Killer Control Center, ASRock Polychrome SYNC
Операционна система	Microsoft Windows 10 64-bit / 11 64-bit
Форм-фактор	EATX Form Factor: 30.5 cm x 26.7 cm
Специални функции	Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, ASRock Lightning Gaming Ports EZ Update, ASRock Auto Driver Installer
Гаранция	36 месеца
