P/N: 90-MXBMG0-A0UAYZ

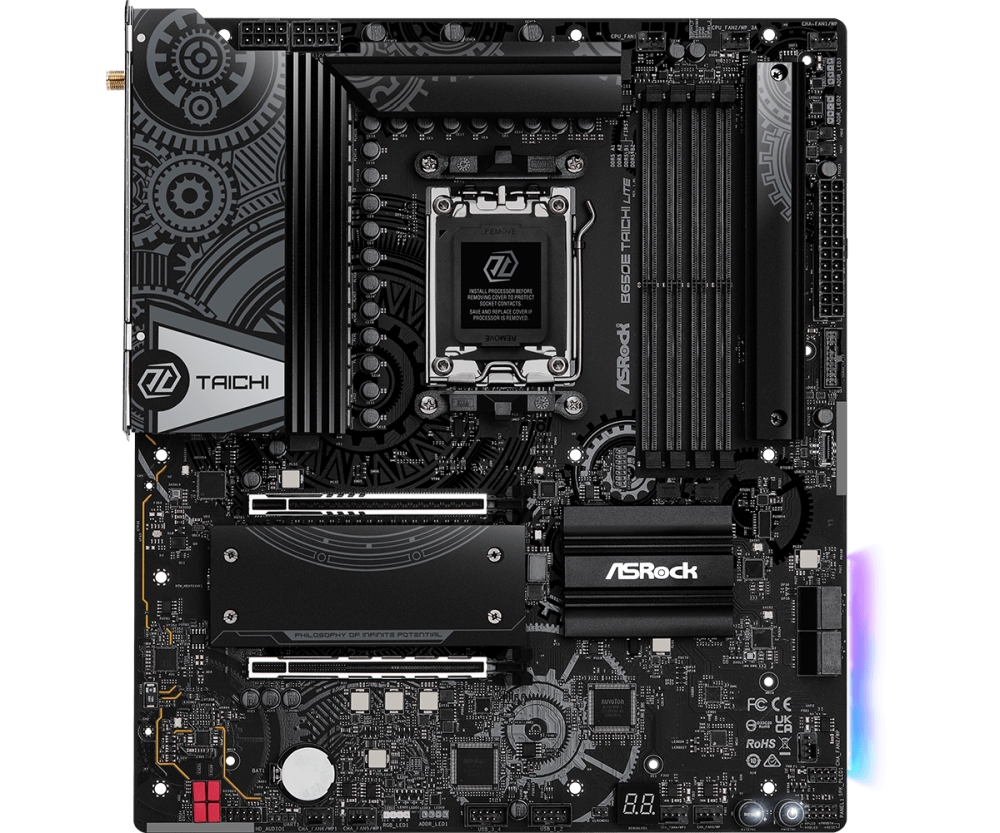

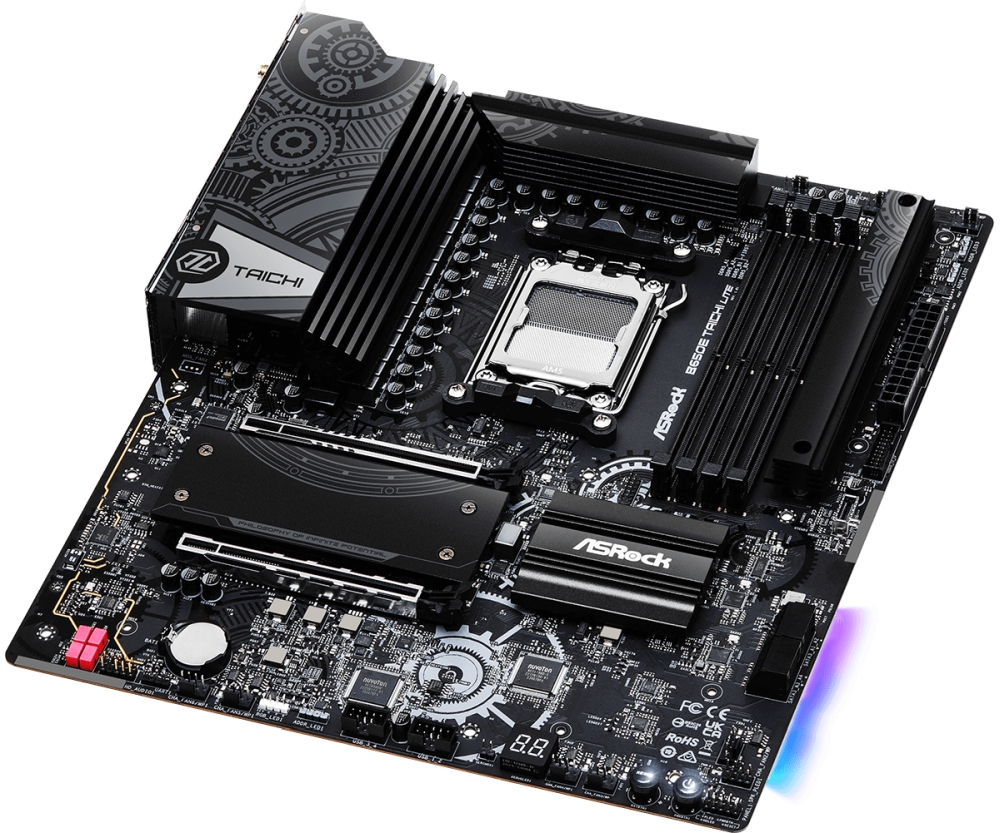

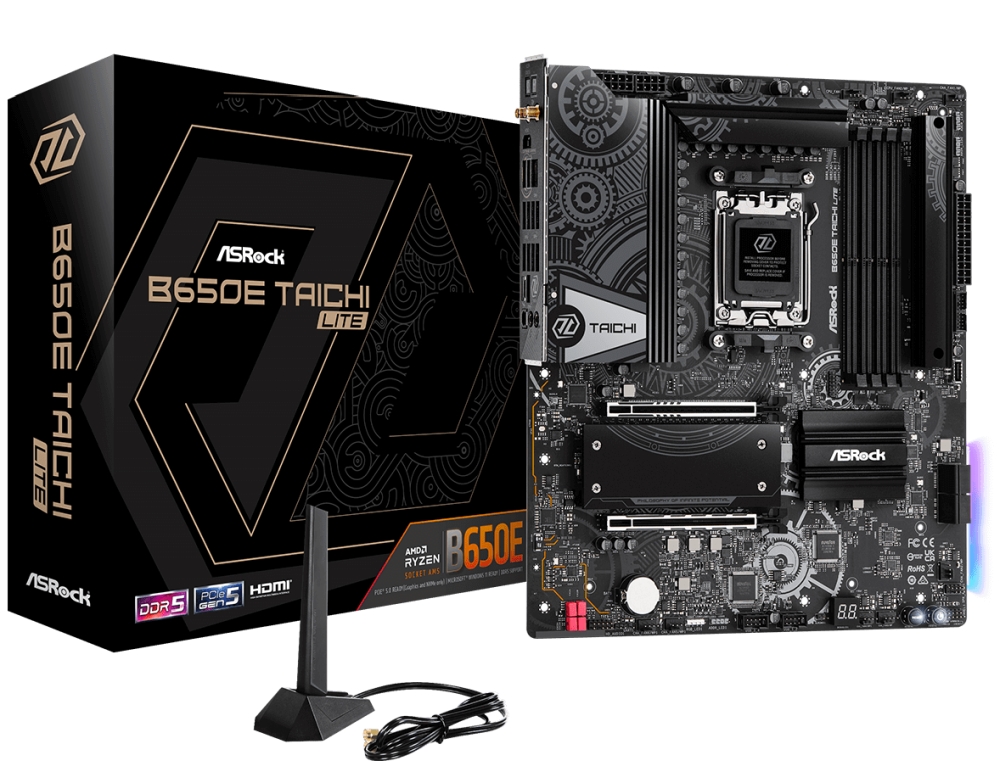

Дънна платка, Asrock B650E Taichi Lite

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Серия	Taichi
Процесор	AMD AM5 Ryzen 7000
Чипсет	AMD B650
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Памет	DDR5
Брой слотове	4 DIMM Slots, Max. capacity of system memory: 192 GB.
Аудио	5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), WIMA Audio Capacitors, ESS SABRE9218 DAC for Front Panel Audio, Nahimic Audio
Безжична мрежа	802.11ax Wi-Fi 6E Module
Конектори	SPI TPM Header, Power LED and Speaker Header, 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, Front Panel Audio Connector, 2 x USB 2.0 Headers, USB 3.2 Gen1 Header, Front Panel Type C USB 3.2 Header
Слотове	CPU: PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset: PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

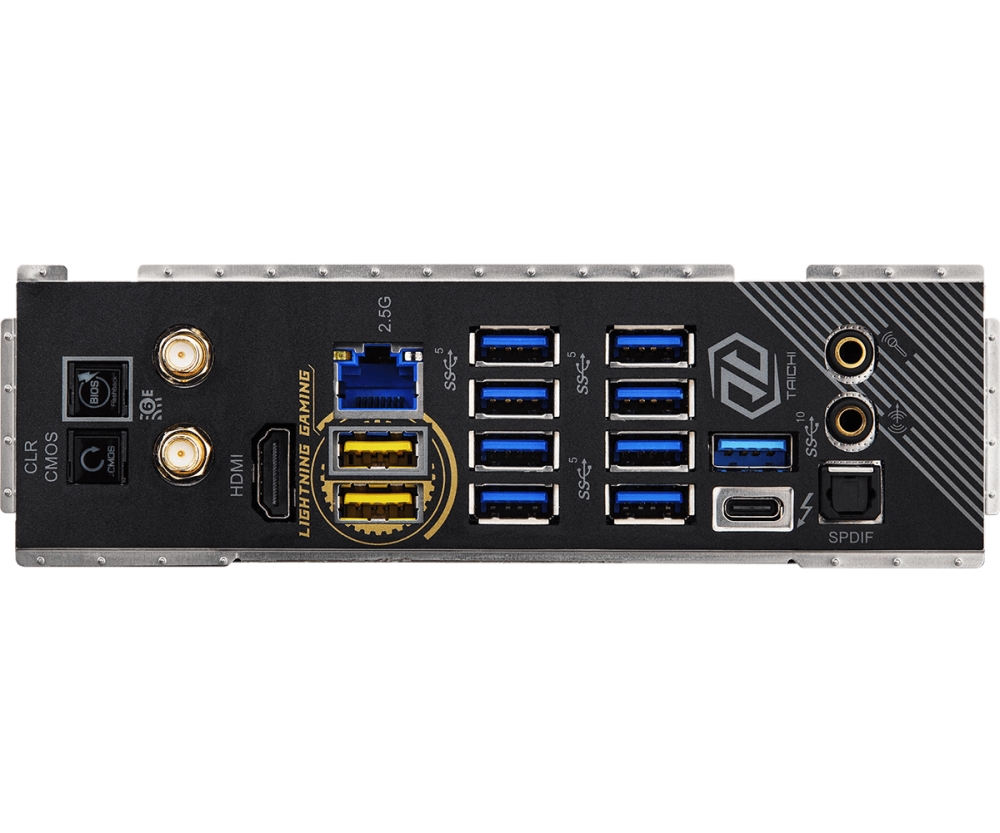

Интерфейс	2 x Antenna Ports, HDMI Port, Optical SPDIF Out Port, USB4 Type-C Port, 3 x USB 3.2 Gen2 Type-A Ports, 8 x USB 3.2 Gen1 Ports, RJ-45 LAN Port, Line Out Jack, Microphone Input Jack
Софтуер	ASRock Motherboard Utility (A-Tuning), Killer Control Center, ASRock Polychrome SYNC
Операционна система	Microsoft Windows 10 64-bit / 11 64-bit
Форм-фактор	EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
Специални функции	Dual Channel DDR5, Server-Grade Low-Loss PCB, Killer 2.5G LAN, Killer, BIOS Flashback Button, ASRock Auto Driver Installer
Гаранция	36 месеца
