P/N: IE-2000U-16TC-G

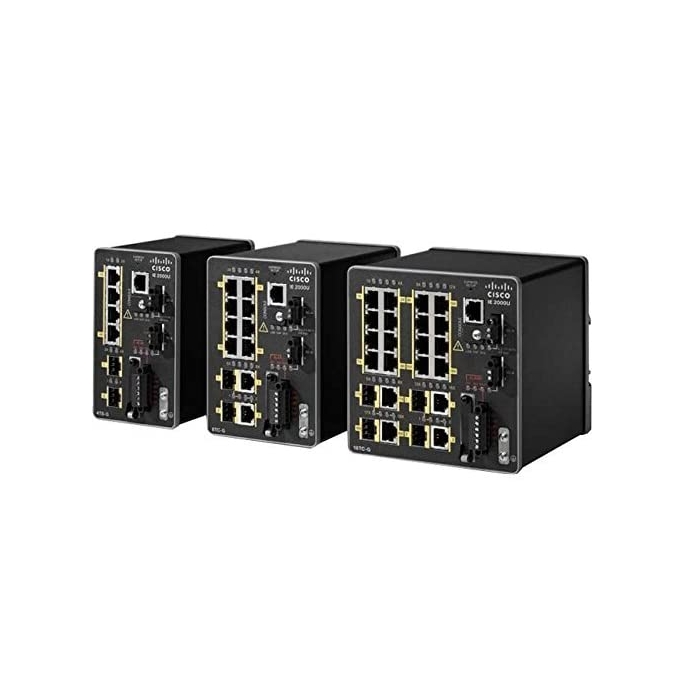

Комутатор, Cisco IE2000U with 16FE Copper ports, 2GE + 2FE Combo (Lan Base License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000U with 16FE Copper ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	20
Основни портове, тип	16x FE copper ports (RJ-45 connectors)
Power Over Ethernet (PoE)	-
Uplink портове	2x GE + 2x FE Combo ports (SFP or RJ45)
Свободни (10GB) слотове	-
Управление	SNMP v2 and 3, IGMP multicast groups: 1000, SDM, CFM
Stackable	-
Fans	Convection cooled
Захранване	Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum; Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC; Power Consumption: 13-20 W
Routing	-
Памет (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 1 GB removable SD flash memory card (CG swap drive) – (128MB space available)
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps	Max. 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси	Unicast MAC addresses: 8000
VLAN (брой, стандарти)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN, Protected port/private VLAN
QoS	Advanced QoS capabilities to support mission-critical substation applications such as SCADA and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
Сигурност	802.1x, Dynamic ARP Inspection, DHCP Snooping, ACL, Port security, UNI/ENI, Spanning Tree Protocol security, Storm control, Secure connectivity: SSH/SSL/SCP, RADIUS/TACACS+, SNMPv3 crypto, OBFL
Мрежови стандарти	IEEE: 802.1s, 802.1w, 802.1x, 802.3ad, 802.3ah, 802.1ag, 802.3x full duplex, 802.1D Spanning Tree Protocol, 802.1p CoS, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEC-62439-3 PRP, IPv6: MLD Snooping v1/2, SNMP v1, 2, and 3
Протоколи за индустриална автоматизация	IEC-61850-3, IEEE 1613, IEEE 1588
Работна температура	-40C to +75C
Размери (Ш, Д, В), mm	127 x 134 x 130 mm
Опция за монтаж	DIN rail
Други	Lan Base License, Parallel Redundancy Protocol (PRP)
Гаранция	60 месеца
