P/N: IE-2000U-4S-G

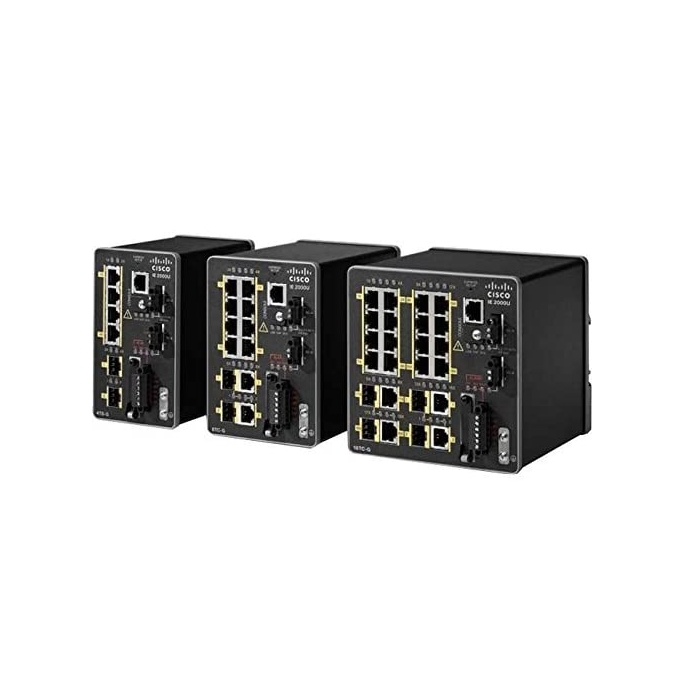

Комутатор, Cisco IE2000U Switch with 2GE + 4 FE SFP Ports (Lan Base License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000U Switch with 2GE + 4 FE SFP Ports (Lan Base License) Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	6
Основни портове, тип	4x FE SFP
Power Over Ethernet (PoE)	-
Uplink портове	2x GE SFP
Свободни (10GB) слотове	-
Управление	SNMP v2 and 3, IGMP multicast groups: 1000, SDM, CFM
Stackable	-
Fans	Convection cooled
Захранване	Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum; Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC; Power Consumption:ls: 9.5-15 W
Routing	-
Памет (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 1 GB removable SD flash memory card (CG swap drive) – (128MB space available)
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps	Max. 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси	Unicast MAC addresses: 8000
VLAN (брой, стандарти)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN, Protected port/private VLAN
QoS	Advanced QoS capabilities to support mission-critical substation applications such as SCADA and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
Сигурност	802.1x, Dynamic ARP Inspection, DHCP Snooping, ACL, Port security, UNI/ENI, Spanning Tree Protocol security, Storm control, Secure connectivity: SSH/SSL/SCP, RADIUS/TACACS+, SNMPv3 crypto, OBFL
Мрежови стандарти	IEEE: 802.1s, 802.1w, 802.1x, 802.3ad, 802.3ah, 802.1ag, 802.3x full duplex, 802.1D Spanning Tree Protocol, 802.1p CoS, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEC-62439-3 PRP, IPv6: MLD Snooping v1/2, SNMP v1, 2, and 3
Протоколи за индустриална автоматизация	IEC-61850-3, IEEE 1613
Работна температура	-40C to +75C
Размери (Ш, Д, В), mm	80 x 115 x 130 mm
Опция за монтаж	DIN rail
Други	Lan Base License
Гаранция	60 месеца
