P/N: IE-2000-16PTC-G-L

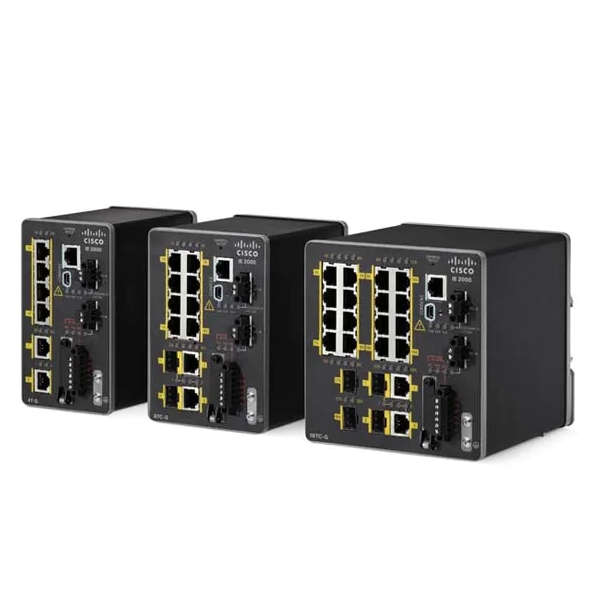

Комутатор, Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Lan Lite License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Lan Lite License) Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	18
Основни портове, тип	16x FE (10/100/1000 BASE-T copper ports (4x PoE+) (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)	4x PoE+; PoE (IEEE 802.af) and PoE+ (802.3at)
Uplink портове	2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове	-
Управление	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Stackable	-
Fans	-
Захранване	External Dual-input DC power supply, Power consumption: 21-30 W (16-port base switch) and 4 PoE/PoE+ power requirement
Routing	Layer 3 routing: IPv4 and IPv6 (IPv4 routing: 3500 routes, IPv6 routing: 1750 routes), IPv4 static routing, IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6
Памет (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps	5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси	Unicast MAC addresses: 8000
VLAN (брой, стандарти)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN
Сигурност	802.1x, port security, SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Мрежови стандарти	IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация	EtherNet/IP, Profinet v2
Работна температура	-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm	127 x 134 x 130 mm
Опция за монтаж	DIN rail
Други	Software license - LAN Lite; Type of possible upgrade: LAN Lite to LAN Base Cisco IOS; Mini-USB connector; Multicast: IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier, Layer 2 switching
Гаранция	60 месеца
