P/N: IE-2000-8TC-G-N

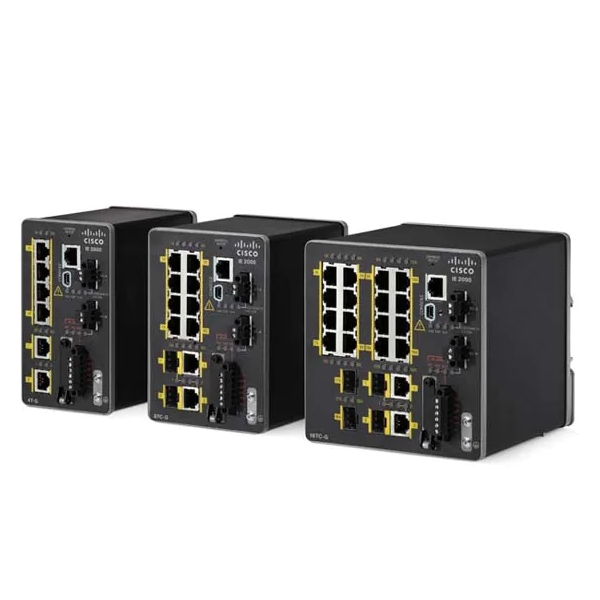

Комутатор, Cisco IE2000 with 8FE Copper ports and 2GE Combo (Enhanced Lan Base License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000 with 8FE Copper ports and 2GE Combo (Enhanced Lan Base License) Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	10
Основни портове, тип	8x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)	-
Uplink портове	2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове	-
Управление	Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Stackable	-
Fans	-
Захранване	External Dual-input DC power supply, Power consumption: 9.5-15 W
Routing	Layer 3 routing: IPv4 and IPv6 (IPv4 routing: 3500 routes, IPv6 routing: 1750 routes), IPv4 static routing, IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6
Памет (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps	5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси	Unicast MAC addresses: 8000
VLAN (брой, стандарти)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN; Voice VLAN
QoS	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Сигурност	802.1x, IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Мрежови стандарти	IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация	IEEE 1588 PTPv2
Работна температура	-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm	74.9 x 115 x 130 mm
Опция за монтаж	DIN rail
Други	Enhanced Lan Base License: LAN Base to IP Lite Cisco IOS, Enhanced LAN Base to IP Lite Cisco IOS, L2NAT; Mini-USB connector; Layer 2 switching VTPv3, EtherChannel, Voice VLAN, Flexlink
Гаранция	60 месеца
