P/N: IE-2000-4TS-L

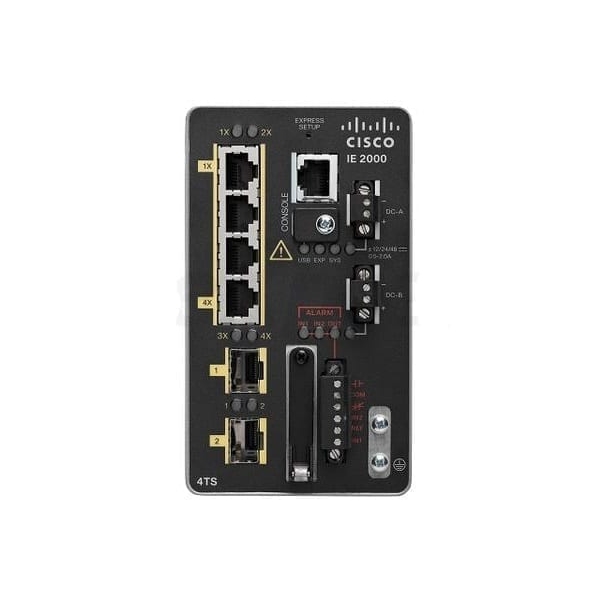

Комутатор, Cisco IE2000 with 4 FE Copper ports and 2 FE SFP ports (Lan Lite License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000 with 4 FE Copper ports and 2 FE SFP ports (Lan Lite License) Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed port
Общ брой портове	6
Основни портове, тип	4x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)	-
Uplink портове	2x FE SFP (100Base-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors)
Свободни (10GB) слотове	-
Управление	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Stackable	-
Fans	-
Захранване	External Dual-input DC power supply, Power consumption: 9.5-15 W)
Routing	-
Памет (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps	5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси	Unicast MAC addresses: 8000
VLAN (брой, стандарти)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN
Сигурност	802.1x, port security, SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Мрежови стандарти	IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация	EtherNet/IP, Profinet v2
Работна температура	-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm	74.9 x 115 x 130 mm
Опция за монтаж	DIN rail
Други	Software license - LAN Lite; Type of possible upgrade: 3; Mini-USB connector; Multicast: IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier, Layer 2 switching
Гаранция	60 месеца
