P/N: DIS-700G-28XS

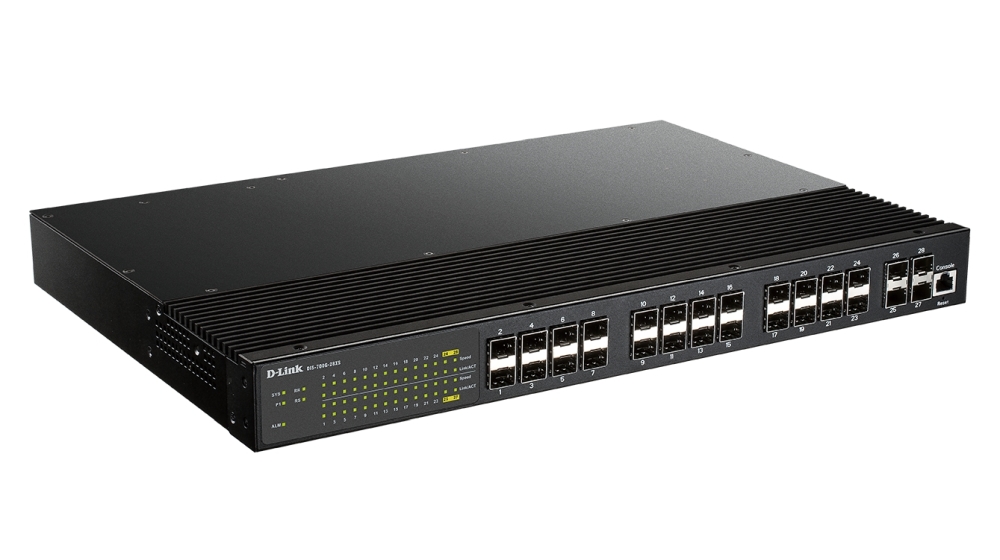

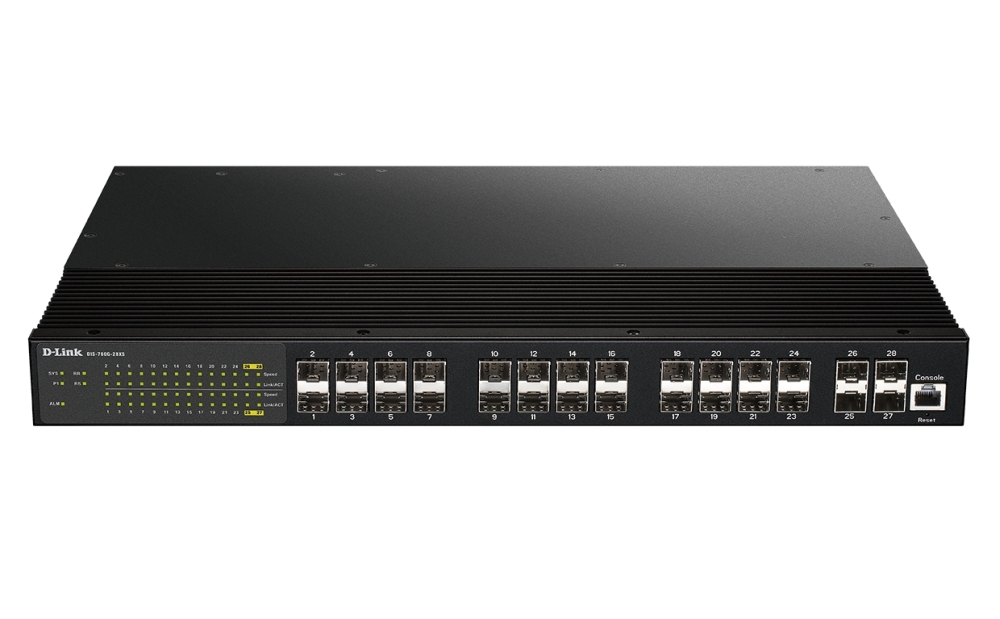

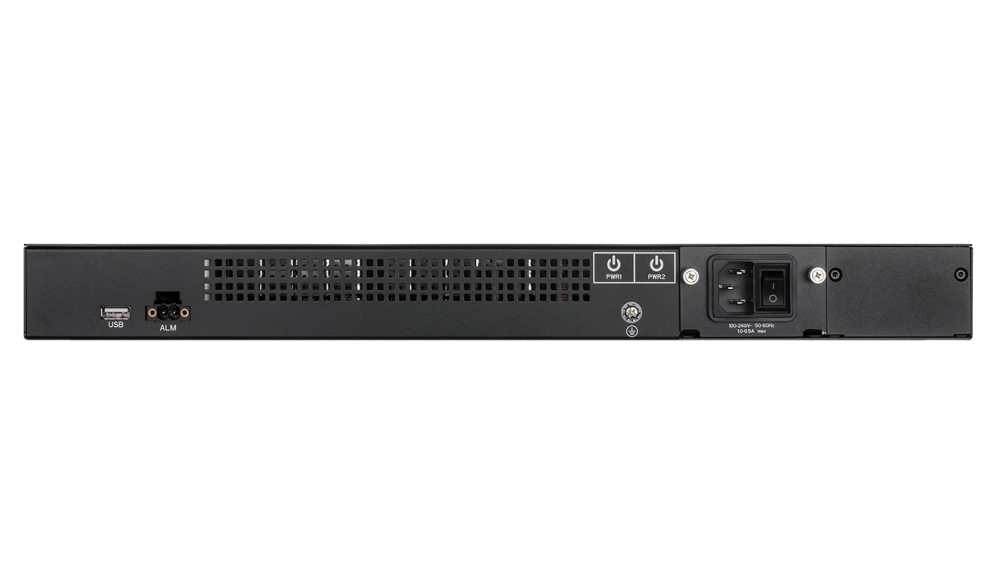

Комутатор, D-Link 24 Ports SFP Plus 4 Port 10G SFP+ with Single AC input

D-LINK мрежови продукти >> D-Link 24 Ports SFP Plus 4 Port 10G SFP+ with Single AC input Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24xSFP
Power Over Ethernet (PoE)	No
Uplink портове	4x10GE SFP
Свободни (10GB) слотове	No
Управление	Industrial-like CLI (command line interface); WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); TFTP/FTP for Configuration Import/Export and Firmware Upgrade; HTTPs, SSH Management Security; NTP/SNTP; Syslog, Policy-based stream mirroring
Stackable	No
Fans	Fanless design
Захранване	AC Inputs: 100/240 VAC, 50Hz ~ 60Hz; Power Consumption: 35W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	IEEE 802.1Q tag-based VLANs, Port-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN, 2048 Max VLANs, MVR (Multicast VLAN Registration), Attach/Remove/Replacement VLAN tag Operations
QoS	8 queues per port; Scheduling Schemes - SPQ, WRR, SPQ + WRR; Ingress rate limit in 1K bps granularity TrTCM (Two Rate Three Color Marker) policer engine; Traffic Shaper - Hierarchical per port and per queue shaping & scheduling with bandwidth management
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ad
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	Port Security - IP and MAC-based Access control, Policy-based Access control, IEEE 802.1X authentication, Network Access Control, RADIUS Client for IEEE 802.1X; Storm Control - Multicast/Broadcast/Flooding Storm Control on per port and per VLAN basis
Размери (Ш, Д, В), mm	440 x 319 x 44
Опция за монтаж	Rackmount
Гаранция	60 месеца
