P/N: JG962A
Комутатор, HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch

99

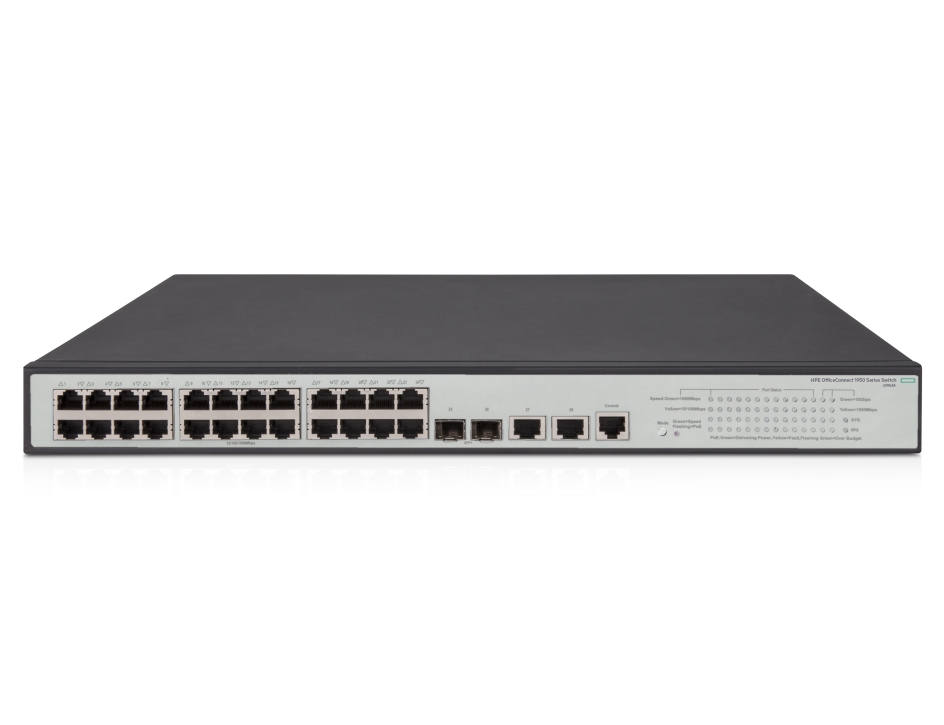

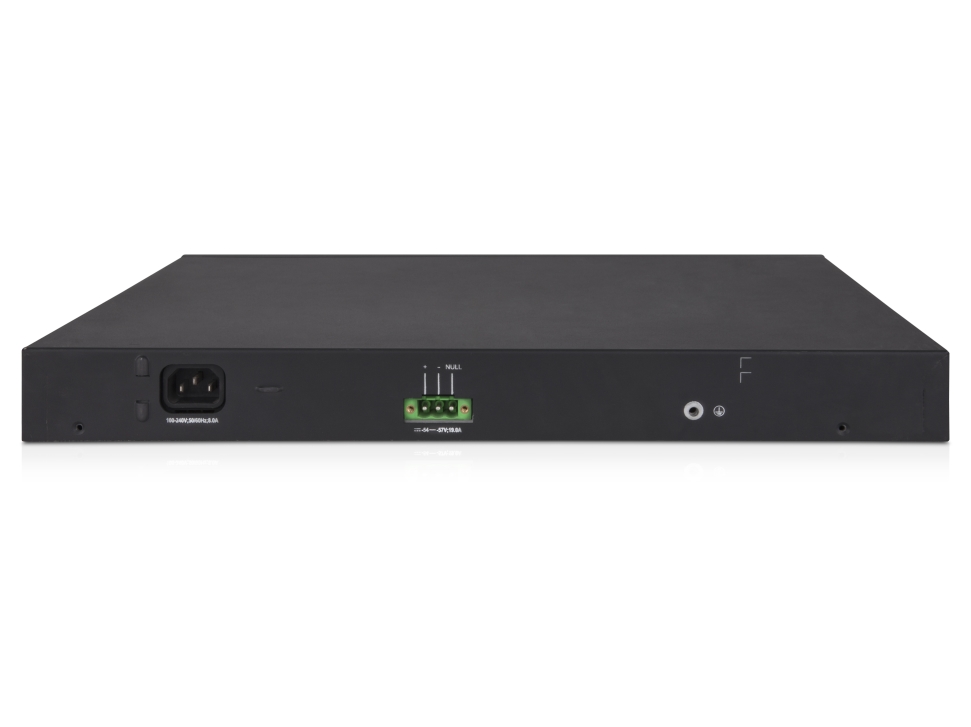

HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch
HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch
HP мрежови продукти >> HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Fixed Port
Общ брой портове 28
Основни портове, тип 24x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.3af and IEEE 802.3at; PoE power: 370 W PoE+
Uplink портове 2x10GE SFP, 2x10GBase-T
Свободни (10GB) слотове No
Управление Intuitive Web browser-based management; Secure Web-management sessions with HTTPS/SSL; SNMPv1, v2c, and v3; Complete session logging; Dual flash images; Port mirroring; RMON; NTP; IEEE 802.1AB Link Layer Discovery Protocol (LLDP); CLI; Default DHCP client
Stackable True stacking allows for redundancy while simplifying administration
Fans Low-speed fan: 37.3 dB, High-speed fan: 47.1 dB
Захранване AC voltage: 100-240 VAC; Maximum power rating: 425 W; Available redundant power supply - Provides additional PoE of up to 740 W. HP RPS1600 Redundant Power System (JG136A) is sold separately. Max. power consumption with RPS is 770 W.
Routing Layer 3 Lite
Памет (Flash, RAM) Flash Memory: 128 MB; RAM: 1 GB SDRAM
Капацитет за маршрутизиране/превключване, Gbps 128 Gbps
Пропускателна способност, Mpps 95.2 Mpps
MAC адреси 16384 MAC addres table size
VLAN (брой, стандарти) Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
QoS Broadcast control, Rate limiting, Traffic prioritization (Recognizes both IEEE 802.1p and DSCP prioritization tagging. Packets are mapped to four hardware queues for more effective throughput), Powerful QoS feature (SP, WRR and SP+WRR queuing)
L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D MAC Bridges, IEEE 802.1D STP, IEEE 802.1p, IEEE 802.1Q
L3 мрежови стандарти Static IPv4/IPv6 routing: provides basic routing (supporting up to 512 static routes and 32 VLAN interface on aggregation model; 32 static routes and 8 VLAN interfaces on access models); allows manual routing configuration
IPv6 functionality IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS
Сигурност Access Control Lists (ACLs); IEEE 802.1X and RADIUS network logins; Port isolation; ARP attack protection; Automatic VLAN assignment; STP BPDU port protection; STP root guard; Automatic denial-of-service protection; Management password
Размери (Ш, Д, В), mm 440 x 360 x 44
Опция за монтаж Desktop/Rackmount
Други 1 RJ-45 console port to access limited CLI port
Гаранция 99 месеца

EAN: -
