P/N: 02354GCW-001

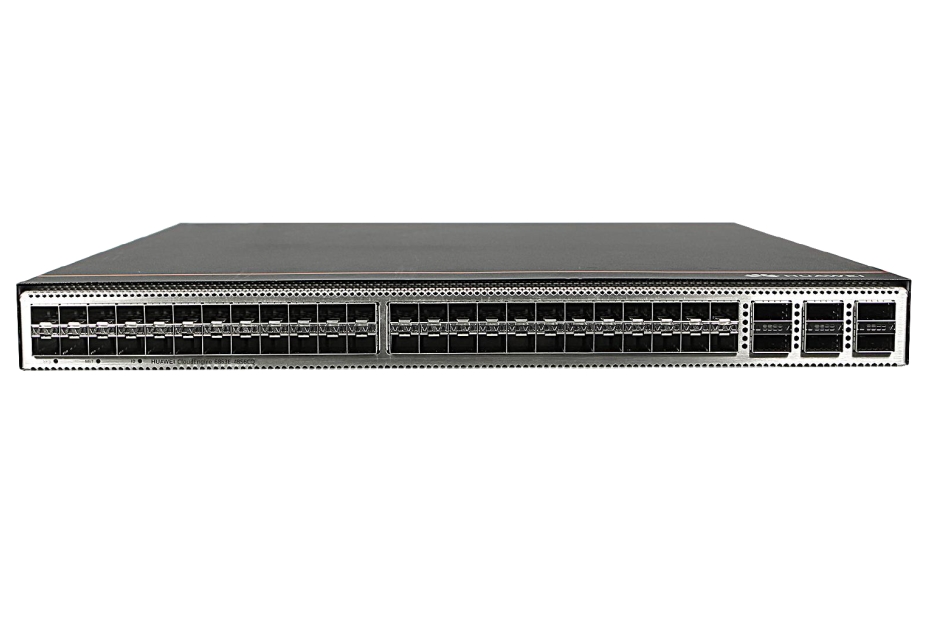

Комутатор, Huawei CE6863E-48S6CQ switch (4825GE SFP28, 6100GE QSFP28, 2AC power modules, 4fan modules, port-side intake)

HUAWEI Enterprise Networking >> Huawei CE6863E-48S6CQ switch (48*25GE SFP28 Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	54
Основни портове, тип	48x10/25GE SFP28
Power Over Ethernet (PoE)	No
Uplink портове	6x40G/100G QSFP28
Свободни (10GB) слотове	No
Управление	Console, Telnet, and SSH terminals; Network management protocols, such as SNMPv1/v2/v3; File upload and download through FTP and TFTP; BootROM upgrade and remote upgrade; Hot patches; User operation logs; Zero Touch Provisioning (ZTP)
Stackable	Intelligent stack (iStack)
Fans	4 fan trays
Захранване	2 AC power modules, Maximum power: 384W
Routing	Layer 3 Advanced
Памет (Flash, RAM)	NAND flash: 4 GB, NOR flash: 64 MB, RAM: 4GB
Капацитет за маршрутизиране/превключване, Gbps	3.6 Tbps
Пропускателна способност, Mpps	940 Mpps
MAC адреси	256000 MAC address table size
VLAN (брой, стандарти)	Adding access, trunk, and hybrid interfaces to VLANs; Default VLAN; QinQ; MUX VLAN
QoS	Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information; ACL, CAR, re-marking, and scheduling; Queue scheduling modes such as PQ, DRR, and PQ+DRR; Congestion avoidance mechanisms, including WRED and tail drop; Traffic shaping
L3 мрежови стандарти	IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP; IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+; IP packet fragmentation and reassembly
IPv6 functionality	VXLAN over IPv6; IPv6 VXLAN over IPv4; IPv6 Neighbor Discovery (ND); Path MTU Discovery (PMTU); TCP6, IPv6 ping, IPv6 tracert, IPv6 socket, UDP6, and raw IPv6
Сигурност	Defense against DoS attacks, ARP storms, and ICMP attacks; Port isolation, port security, and sticky MAC; Binding of the IP address, MAC address, port number, and VLAN ID; Authentication methods, including AAA, RADIUS, and HWTACACS; RMON
Размери (Ш, Д, В), mm	442 x 420 x 44 mm
Опция за монтаж	Rackmount
Други	1x GE management port, 1x RJ45 console port, 1x USB port
Гаранция	12 месеца
